Thermal Conductivity Gas Sensor

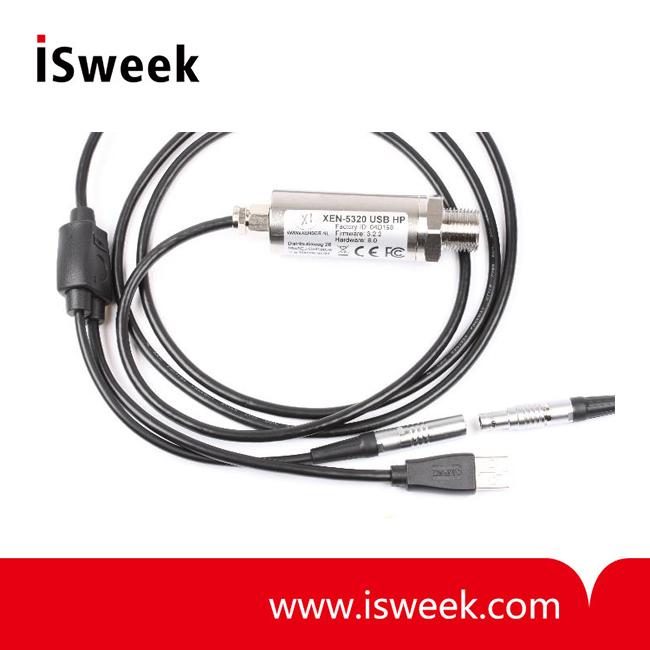

    The XEN-5320 is an intelligent gas sensor with a wide application in industry where it is desirable to analyse binary gas mixtures. The sensor is based on the measurement of the thermal conductivity of the ambient gas, using the proven thermal conductivity sensor XEN-3880. Applications include hydrogen and helium gas experimentation, detection of gas dispersion rates in jets and plumes and binary gas composition measurement.

Features

• Long-term stable analysis of gases in binary and quasi-binary mixtures

• Fast response and data update rate

• High sensitivity and resolution

• Long lifetime and low maintenance

• Flow effects compensating design

• Temperature and humidity corrected output

• Allows user zero and gain calibration

• User configurable output calibration curves

• LabView read-out and programming software

• Read-out via USB, CAN or Analog output

• RoHS compliant

• CE and FCC certified

Applications

    Monitoring and leak detection of hydrogen, helium, nitrogen and methane gas mixtures in medical, R&D and industrial environments.

Technical Specification

*Preliminary Specifications at 23℃, 101 kPa, 50 %RH

Outline drawing
