Product Description

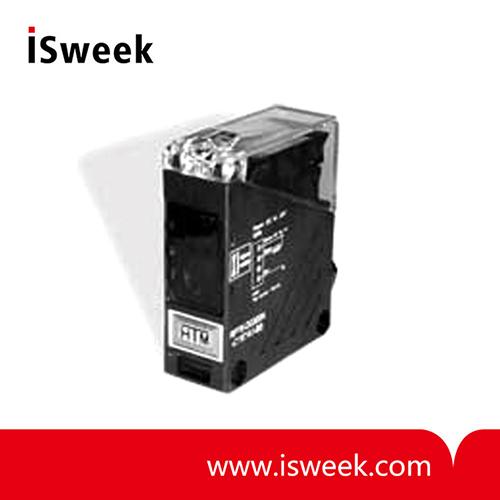

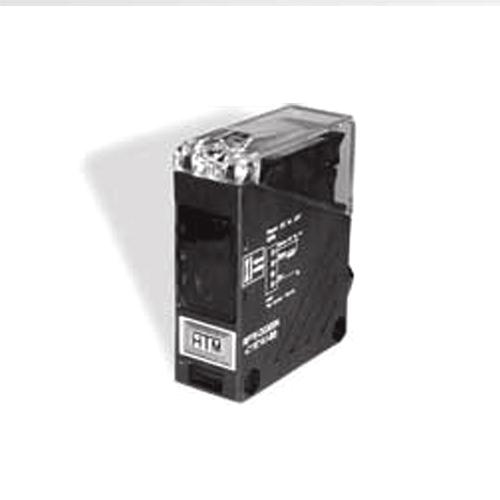

RP76 Series Terminal (Conduit) Mount Photoelectric Sensor Description
• Back or Bottom Mounting Option
• Universal Power Supply
• Built-in Timer Modes


Modes
 Ranges
Through Beam
 28m
Retroreflective
 10m
Diffuse with Background Suppression
 300mm


RP76 Series Terminal (Conduit) Mount Photoelectric Sensor


Through-beam
 Diffuse
 Retroreflective (Polarized)
DC Models
Emitter
 RP76-T028MD-EY9T4L

NPN - Timing Delay
 RP76-T028MN-CY9T4U-T
 RP76-D0300N-CY9T4U-BT
 RP76-L010MN-CY6T4U-TP
PNP - Timing Delay
 RP76-T028MP-CY9T4U-T
 RP76-D0300P-CY9T4U-BT
 RP76-L010MP-CY6T4U-TP
AC Models
Emitter
 RP76-T028MA-EY9T4L

Relay SPST - Timing Delay
 RP76-T028MR-CY9T4L-T
 RP76-D0300R-CY9T4L-BT
 RP76-L010MR-CY6T4L-TP
Technical Data
Operating Range
 28m (91.8 ft.)
 0.3m (11.8 in.)
 10m (32.8ft.)
Light Emission
 880nm Infrared LED
 660nm Red LED
Power Supply
 DC: 10-30 VDC AC: 20-250 VAC
Current Consumption
 DC: <35 mA (no load) AC: <2 VA
Time Options
 No Delay, On Delay, Off Delay, One-shot (for Models With Timing Delay)
Time Settings
 Adjustable, 0.1...15s (for Models with Timing Delay)
Indicator LEDs
 Green: Power, Yellow: Output, Red: Margin / SCP
Housing Material
 Glass fiber reinforced plastic
Lens Material
 Acrylic
Mechanical Protection
 IP66 / NEMA 4
Circuit Protection
 Reverse polarity protected (DC Models also have outputs short circuit and over current protected)
Operating Temperature
 -25°C to +55°C (-13°F to 131°F)
Storage Temperature
 -40°C to +55°C (-40°F to 131°F)
Reference Standard
 IEC 60947-5-2
