Product Description

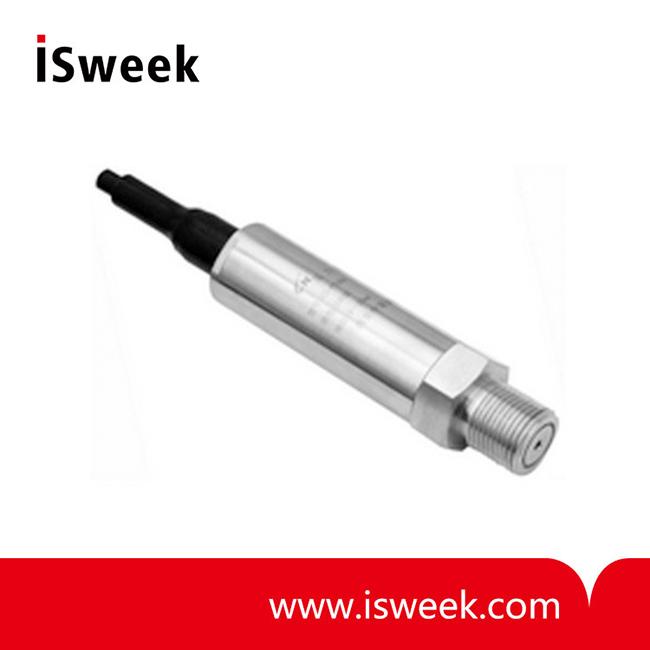

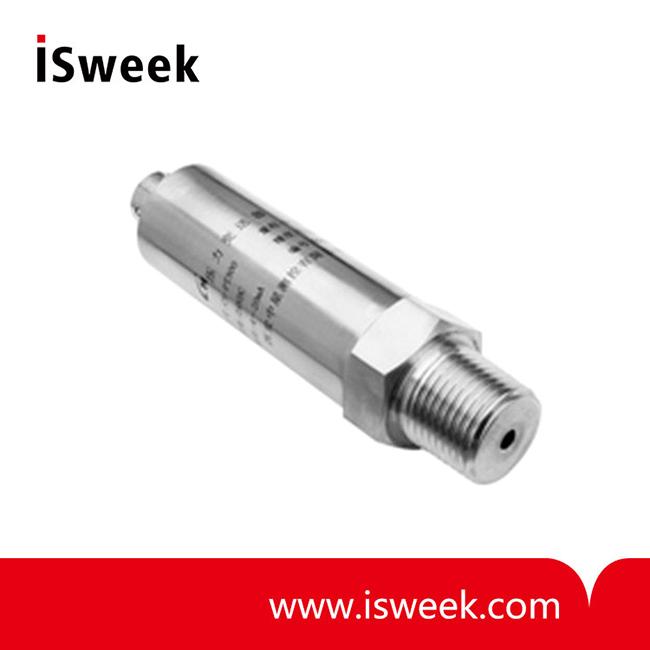

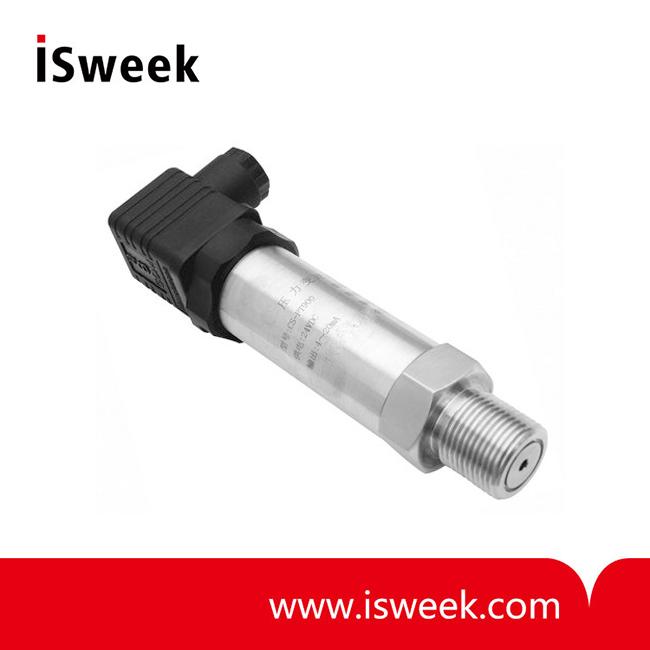

CS-PT800 Sputtered Thin Film Pressure Transducer


CS-PT800 Thin Film Pressure Transducer Features

• Whole weld without O-ring
• Excellent temperature stability
• High over pressure and burst pressure
• Customized pressure and electrical connection
• Rugged housing

CS-PT800 Thin Film Pressure Transducer Applications
• Engineering machinery
• High alpine environment
• Natural gas storage equipment

CS-PT800 Thin Film Pressure Transducer Specifications

Items
 Specs
Range
 0...10bar to 2200bar
 1MPa=10bar
1bar≈14.5PSI
1PSI=6.8965KPa
Over pressure
 2 times (2X)
Burst pressure
 4 times (4X)
Accuracy
 ±0.25%F.S, ±0.5%F.S
Stability
 Typical: 0.25%F.S,                     Maximum: 0.4%F.S
Operating temperature
 -50℃~200℃
Housing material
 1Cr18Ni9Ti SS
Output
 4~20mA (2 wires), 0-10Vdc (3 wires),1-10Vdc (3 wires),etc
Power supply
 12~30Vdc,etc
Load capacity
 (U-10)/0.02(Ω) for 4-20mA
Insulation
 >100M Ω@50V
Electrical capacity
 500V@60 second
Vibration/impact
 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Durability
 2 x 108 Circles @ 25℃
Electrical connection
 Din43650, M12, Direct cable, Packard,D eutsch DT04-4P, etc
Pressure port
 M20 x 1.5, G1/4, G1/2, R1/2, NPT1/2, NPT1/4, etc
Certificate
 CE
Electromagnetic
compatibility
Electromagnetic radiation: EN50081-1/-2
Electromagnetic sensitivity: EN50082-2
