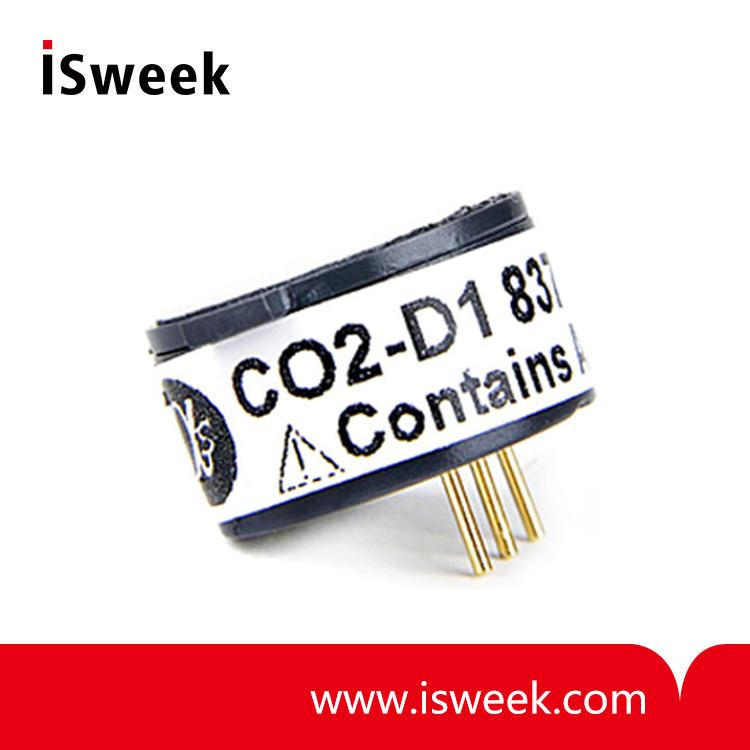

Solid State Carbon Dioxide Sensor (CO2 Sensor)

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    CO2-D1

  • Data Sheet

  • Package

    Original packaging

  • Specs

    CO2-D1

  • Quantity

    - +

  • Send Inquiry

Product Description

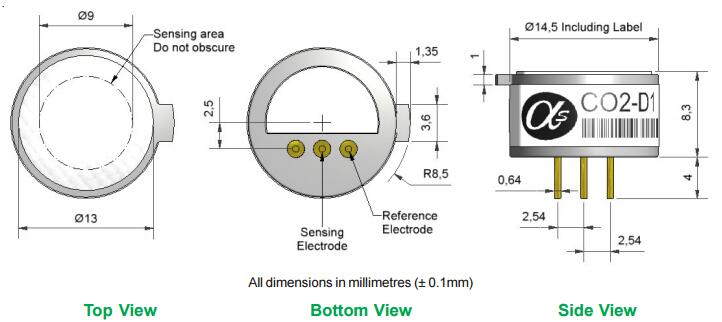

CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) Schematic Diagram



CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) PERFORMANCE
Sensitivity
 mV/decade concentration change (0.5% to 5% CO2)
 6 to 10
Response time
 t90 (s) for mV change (20°C)(0.5% to 5% CO2)
 2-4 mins
Zero
 E0 @ 5000ppm CO2
 -30 to +30mV
Resolution
 RMS noise (ppm equivalent) @ 5,000ppm CO2
 100
Range
 CO2 concentration
 0.5% to 90%
Linearity
 see Figure 3
 Logarithmic



CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) LIFETIME
Zero drift
 (mV)E0 change/day in lab air
 ±3
Sensitivity drift
 mV/decade/month change in lab air, monthly test
 < 1
Operating life
 months until 80% original signal (12 month warranted)
 < 12



CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) ENVIRONMENTAL
Temperature range
 °C
 10 to 35
Pressure range
 kPa
 80 to 120
Humidity range
 % rh continuous
 15 to 95



CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) KEY SPECIFICATIONS
Storage period
 months @ 0 to 20°C (stored in original container)
 6
Input
 Impedance of op amp input
 > 108 Ω
