Product Description

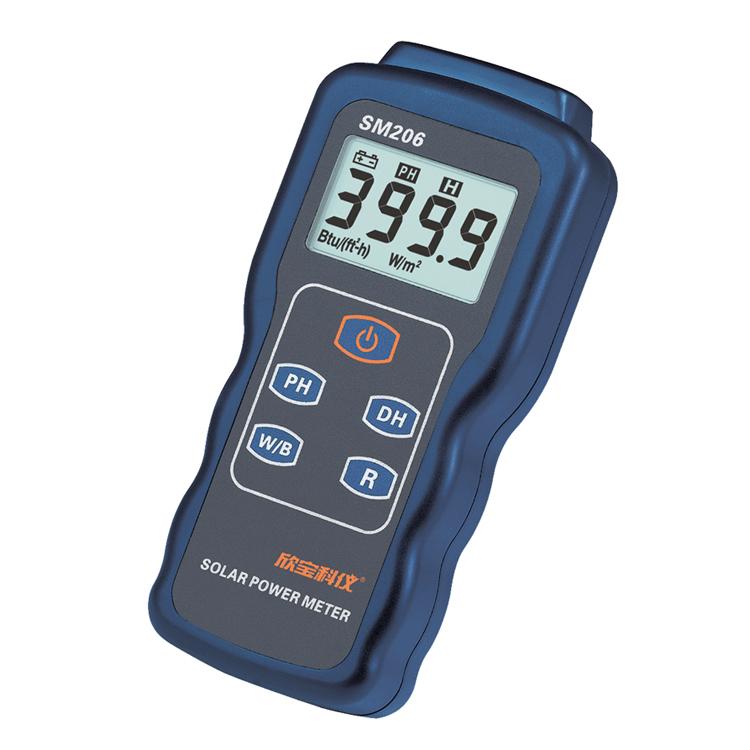

SM206 Solar Power Meter

Features
Selectable from two units: W/㎡ and Btu
Peak hold function
Data hold function
Measure directly without adjustment
Steadily measure for a long period

Specifications
1. Resolution: 0.1W/m2, 0.1 Btu/(ft2-h)
　Error range: ± 10W/m2 [±3 Btu/(ft2-h)] or ±5% of the measured value Temperature error: ±0.38W/m2 / ℃ [±0.12 Btu/(ft2-h)/℃] deviation at 25℃
　Display: 3-3/4LCD display, maximum displayed numerical value 3999
　Shift: <±3% /year
　Overload display "OL"

2. Range: 0.1-399.9 W/m2, 1-3999 W/m2, 0.1-399.9 Btu/(ft2-h), 1-3999 Btu/(ft2-h)
　Sampling time: 0.5 second
　Operation temperature and humidity: 0°C to 50°C, <80%RH
　Storage temperature and humidity: -10°C to 60°C, <70%RH
　Dimensions and weight: 132 (L) x 60 (W) x 38 (H) mm
　Weight: approx. 150g
　Battery needed: 9V battery
　Battery operation life: Approx. 100 hours
