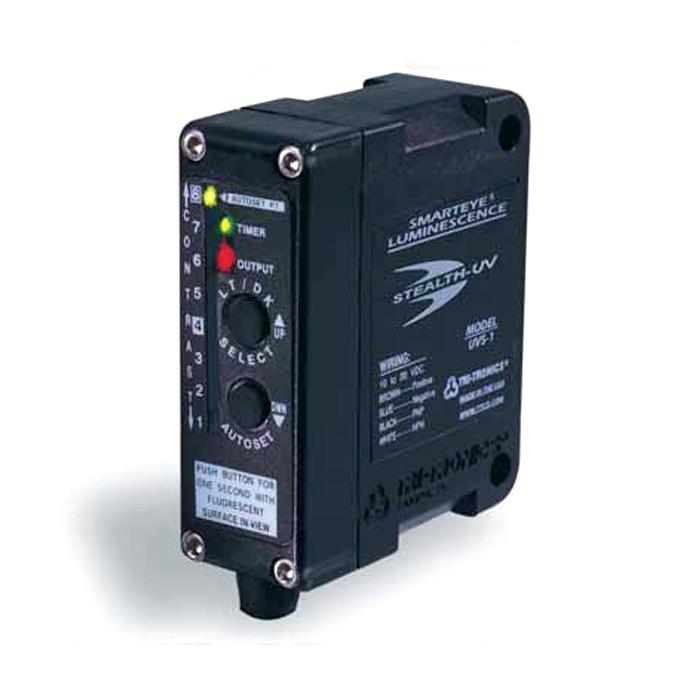

SMARTEYE Stealth-UV Luminescence Sensor Description
The SMARTEYE® STEALTH-UV™ sensor is a special purpose sensor designed to detect the presence of invisible fluorescent materials contained in or added to paper, chalks, inks, paint, greases, glue, or optical brighteners found in labels, tape, string, etc. The sensor contains an ultraviolet (UV) solid state light source that is used to excite the luminescent materials to fluoresce in the visible range. The sensor's detector then responds to the visible fluorescing light.

SMARTEYE Stealth-UV Luminescence Sensor Advantage
• Wide Selection of Ranges - 1/2" to 24"
• Unique Fiberoptic Model
• Forgiving Depth-of-Focus Tolerance - Eliminates frequent adjustments
• Distinguishes between low UV Contrast Levels
• High Performance at an Economical Price
• Digital and Analog Models

SMARTEYE Stealth-UV Luminescence Sensor Typical Applications
• Missing labels or label positions on bottles and containers
• Invisible registration marks for positioning, printing and cutting
• LOCTITE P/N 24221 on machine threads or bolts
• Tamperproof seals
• Marks (chalk) for grading or sorting lumber, hardwood, and tile products
• Pull tabs on packages

SMARTEYE Stealth-UV Luminescence Sensor Specifications
SUPPLY VOLTAGE
 • 10 to 30 VDC
• Polarity Protected
CURRENT REQUIREMENTS
 • UVS-1, UVS-2, UVS-3 & UVS-4: 50 mA
• UVS-5 & UVS-6: 65 mA (exclusive of load)
TRANSISTOR OUTPUT
 • (1) NPN and (1) PNP output transistor:
  NPN: Sink up to 150 mA
  PNP: Source up to 150 mA
• Continuous short circuit protected
• Outputs protected from pulsing during power up
ANALOG OUTPUT
 • 4 - 20 mA (Consult factory for specifications)
RESPONSE TIME
 • Varies by sensor model
AMBIENT TEMPERATURE
 • -15°C to +70°C (5°F to 158°F)
LIGHT IMMUNITY
 • Responds to sensor’s pulse modulated light source, resulting in high immunity to most ambient light and strobes, including indirect sunlight
RUGGED CONSTRUCTION
 • Chemical resistant, high impact polycarbonate housing, standard acrylic or optional glass window
• Industry Ratings: NEMA 4, IP67
PUSH BUTTON CONTROL
 • "One-Touch" AUTOSET TM push-button setup
• Tweak adjustments with "up" or "down" buttons
• Selection of Light/Dark operation
• Enable/Disable pulse stretcher
HYSTERESIS
 • 2 bars as displayed on Contrast Indicator:
  Light State switch = 5
  Dark State Switch = 3
DIAGNOSTIC INDICATORS
 • Contrast Indicator – Display scaled reading of sensor's response to contrasting light levels (Light vs. Dark) on an 8 bar LED display
• RED LED OUTPUT INDICATOR Illuminates when the sensor's output transistors are "ON" NOTE: If Output LED flashes, a short circuit condition exists
• GREEN LED TIMER INDICATOR Illuminates when the 15 millisecond pulse stretcher timer is enabled
LIGHT SOURCE
 • UV LED, 375 nm Wavelength

SMARTEYE Stealth-UV Luminescence Sensor How To Specify
Coaxial

Focal Distance
 Spot Size
 Usable Range
 Response Time
UVS-1
 0.50" (12.7 mm)
 0.067" (1.7 mm)
 0 to 5.0" (0 to 127 mm)
 200 microseconds
UVS-2
 1.0" (25.4 mm)
 0.086" (2.2 mm)
 0 to 7.5" (0 to 190.5 mm)
 200 microseconds
UVS-3
 2.0" (50.8 mm)
 0.128" (3.25 mm)
 0 to 10.0" (0 to 254 mm)
 200 microseconds
UVS-4
 4.0" (101.6 mm)
 0.16" (4.1 mm)
 0 to 13.0" (0 to 330 mm)
 200 microseconds

Convergent

Focal Distance
 Spot Size
 Usable Range
 Response Time
UVS-5
 8.0" (203 mm)
 1.0" (25.4 mm)
 2.0 to 24.0" (50.8 to 609.6 mm)
 750 microseconds

Fiberoptic

Micro Polished
 BF-U-36TUV
 Usable Range
 Response Time
UVS-6

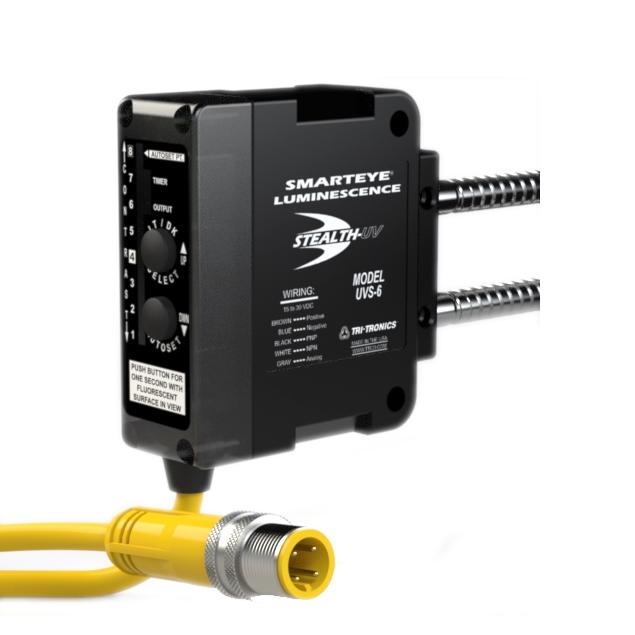

 Fiberoptic Light Guide
 0.156" Bundle Size (4.0 mm)
 Up to 2.5" (63.5 mm)
 350 microseconds
