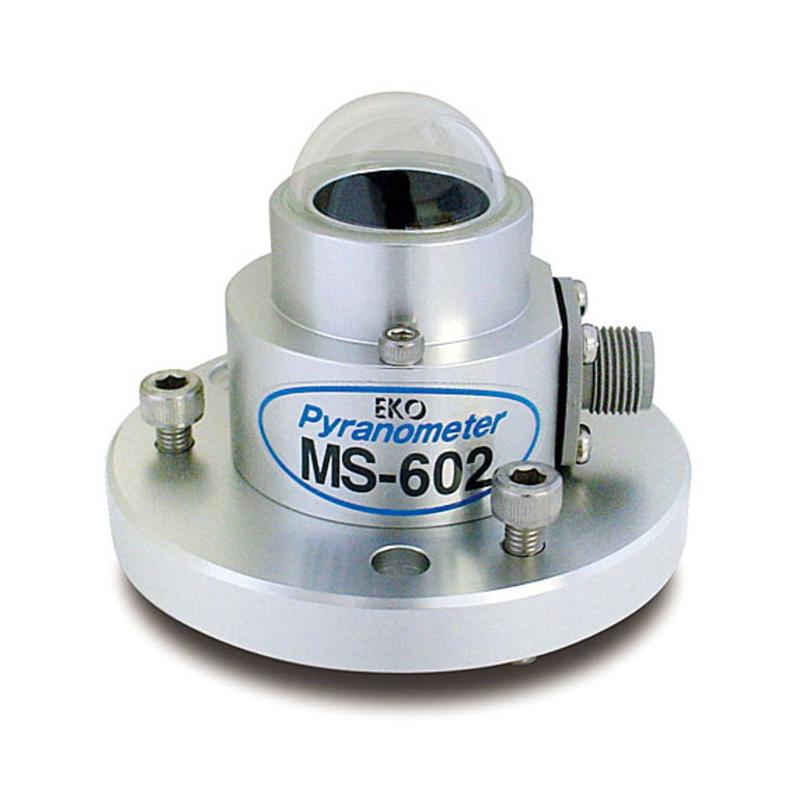

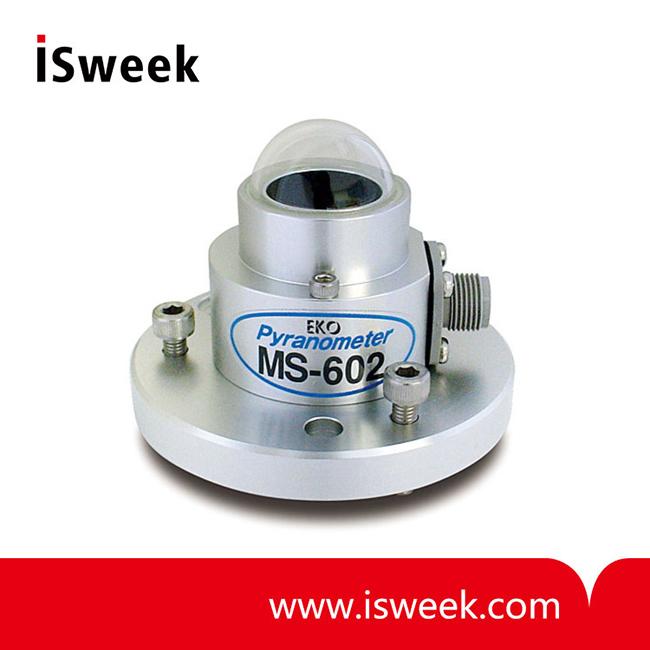

Smallest True Thermopile Pyranometer
-
Price
Price on request ≥1piece
-
Model Number
MS-602 -
Data Sheet
-
Package
Original packaging -
Specs
MS-602 -
Quantity
- +Send Inquiry
Find Similar Products
-
Advanced Performance Photoelectric Sensor
Model Number：H60 Series
MOQ：1
-
Compact Photoelectric Sensor
Model Number：RP18 Series
MOQ：1
-
Cylindrical Photoelectric Sensor
Model Number：M12 Series
MOQ：1
-
Cylindrical Photoelectric Sensor
Model Number：M18 Series
MOQ：1
-
Universal Mount Photoelectric Sensor
Model Number：MP Series
MOQ：1
-
Miniature Photoelectric Sensor
Model Number：RP32 Series
MOQ：1
Product Description
MS-602 Thermopile Pyranometer Description
Within the MS-series the MS-602 pyranometer is the smallest true thermopile pyranometer. It is the most economic measurement solution for global solar radiation measurements capturing the full solar spectrum. MS-602 meets the ISO Second Class performance criteria. However, its outstanding temperature dependency characteristics can only be found on higher class pyranometers. This sensor can be found in many meteorological networks and professional small scale PV sites where solar radiation is taken seriously.
MS-602 Thermopile Pyranometer Features
• Second Class Pyranometer
• Most Economic Thermopile Sensor
• Low Temperature Dependancy Unique In Its Class
• Compact All Weather Sensor
MS-602 Thermopile Pyranometer Specifications
Within the MS-series the MS-602 pyranometer is the smallest true thermopile pyranometer. It is the most economic measurement solution for global solar radiation measurements capturing the full solar spectrum. MS-602 meets the ISO Second Class performance criteria. However, its outstanding temperature dependency characteristics can only be found on higher class pyranometers. This sensor can be found in many meteorological networks and professional small scale PV sites where solar radiation is taken seriously.
MS-602 Thermopile Pyranometer Features
• Second Class Pyranometer
• Most Economic Thermopile Sensor
• Low Temperature Dependancy Unique In Its Class
• Compact All Weather Sensor
MS-602 Thermopile Pyranometer Specifications
|
Specifications (Typical) |
MS-602 |
|
ISO 9060 classification |
Second Class |
|
Response time 95% (sec) |
17 |
|
Zero offset - Thermal radiation (200W/m²) |
< 10 W/m² |
|
Zero offset - Temperature change (5K/hr) |
< 6 W/m² |
|
Non-stability (change/year) |
< 1.7 % |
|
Non-linearity (at 1000W/m²) |
< 1.5 % |
|
Directional response (at 1000W/m²) |
< 25 W/m² |
|
Spectral selectivity (0.35-1.5µm) |
< 1 % |
|
Temp. response (for 50°C band) |
< 2 % |
|
Tilt response (at 1000W/m²) |
< 2 % |
|
Sensitivity (µV/W•m-2) |
Approx. 7 |
|
Impedance (Ω) |
20 ~ 140 |
|
Operating temperature range (°C) |
- 40 to +80 |
|
Irradiance range (W/m2) |
0 - 4000 W/m2 |
|
Cable length |
10m |
|
Wavelength range |
285 to 3000 nm |
