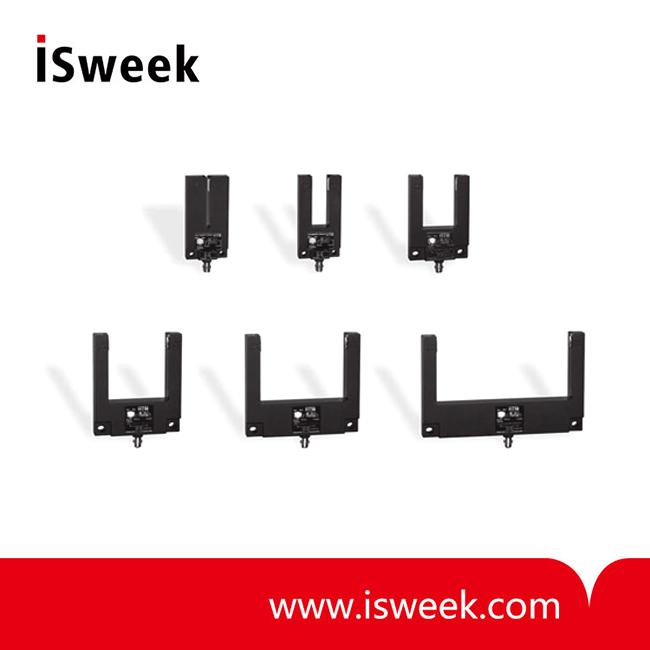

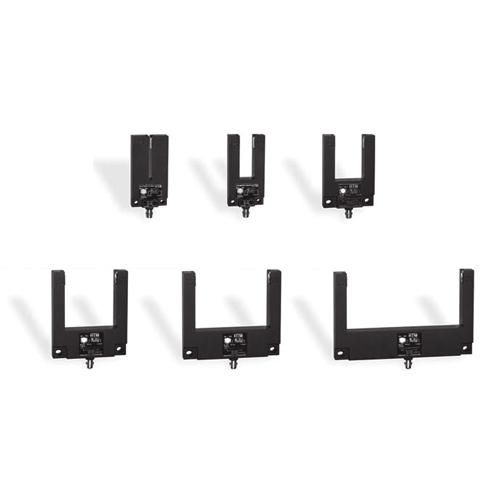

U Series Slot Photoelectric Sensor Description:
• 2, 15, 30, 50, 80 and 120mm Widths
• High Switching Frequency
• Rugged Die-cast Metal Housings
Modes Ranges
Through Beam 2mm ~ 120mm
U Series Slot Photoelectric Sensor Part Numbers
|
NPN (red LED, 660nm) |
U02-T0002N-CY6Q4UP |
U15-T0015N-CY6Q4UP |
U30-T0030N-CY6Q4UP |
|
PNP (red LED, 660nm) |
U02-T0002P-CY6Q4UP |
U15-T0015P-CY6Q4UP |
U30-T0030P-CY6Q4UP |
|
Slot Spacing |
2mm |
15mm |
30mm |
|
Supply Voltage |
10-30 VDC |
||
|
Voltage Drop |
< 3V |
||
|
Rated Isolated Voltage |
75 VDC |
||
|
Rated Operational Current |
200mA |
||
|
No-load Supply Current |
≤35mA |
||
|
Reverse Polarity Protection |
Yes |
||
|
Short-circuit Protection |
Yes |
||
|
On/Off Delay |
0.2ms |
||
|
Operating Frequency |
3000Hz |
1500Hz |
|
|
Switching Hysteresis |
≤0.1mm |
||
|
Resolution |
0.3mm |
||
|
Repeatability |
0.02mm |
||
|
Output Function |
Light On / Dark On |
||
|
Permissible Ambient Light |
10 Kℓ |
||
|
Function Indicator |
red LED |
||
|
Operating Temp |
-10°C to 60°C (14°F to 140°F) |
||
|
Mechanical Protection |
IP65 |
||
|
Reference Standard |
IEC 60947-5-2 |
||
|
Housing Material |
Die-cast Zinc |
||
|
Connection |
M8 4 pin connector - Recommended Mating Cable: Part # C-FS4TZ-V075 (straight), or C-FA4TZ-V075 (right-angle) |
||
|
|
 |
 |
 |
