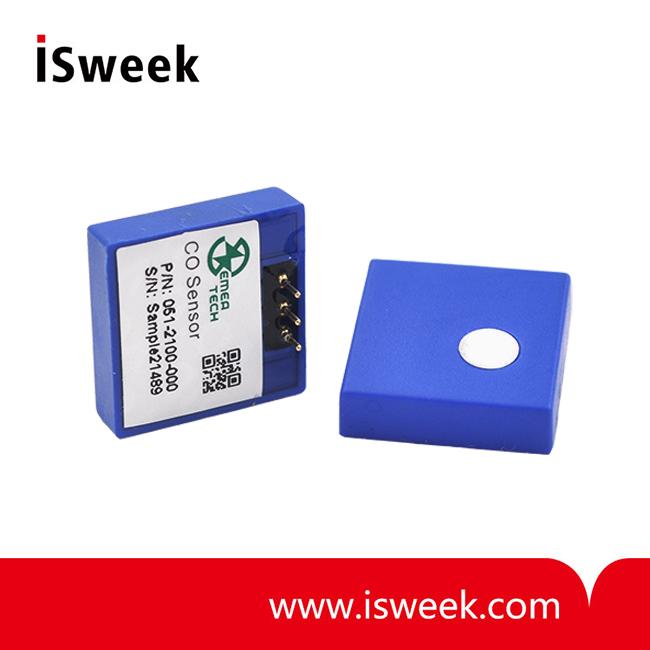

SemeaTech Electrochemical CO-1000 Sensor
-
Price
Price on request ≥1piece
-
Model Number
CO-1000 -
Data Sheet
-
Package
Original packaging -
Specs
CO-1000 -
Quantity
- +Send Inquiry
Product Description
Product Description：
This sensor is designed for the measurement of CO concentration in gas phase. It can be used as the pin-to-pin replacement of the commercial electrochemical CO sensors which made by the other manufacturers.
Performance Characteristics：
|
Nominal Range |
0 ~1000 ppm |
|
Maximum Overload |
2,000 ppm |
|
Sensitivity (20℃) |
0.04 ± 0.01 μA/ppm |
|
Response Time (T90) |
≤ 30 s |
|
Zero Signal (20℃) |
< ±0.2 μA |
|
Baseline Shift (-20℃ ~ 50℃) |
< 10 ppm |
|
Resolution |
1 ppm |
|
Linearity |
Linear up to 1,000 ppm |
|
Bias Voltage |
0 mV |
|
Temperature Range |
-20℃ ~ 50℃ |
|
Pressure Range |
1 ± 0.1 atm |
|
Humidity Range |
15% ~ 90%RH non-condensing |
Reliability and Lifespan：
|
Long Time Output Drift |
< 5% signal/month |
|
Expected Operating Life |
> 7 years in clean air |
Storage：
|
Recommended Storage Temp |
0℃ ~ 20℃ |
|
Storage Life |
6 months in original packaging |
|
Warranty |
15 months |
Physical Characteristics：
|
Housing Material |
ABS |
|
Weight (Nominal) |
2 g |
|
Orientation |
None |
Product Dimensions：
All dimensions in mm
All tolerances ±0.10mm unless otherwise stated
Temperature Data：
Safety Note：
This sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.
It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
