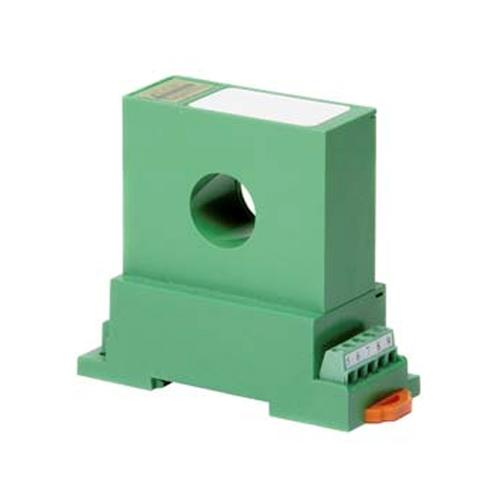

Self Powered AC Current Transducer

Find Similar Products

•

  Three-phase Open Loop Mode Hall Effect Current Sensor

  Model Number：TKC-TG3

  MOQ：1

•

  High Precision Closed Loop Mode Hall Effect Current Sensor

  Model Number：TBC-LTHB

  MOQ：1

•

  DC Leakage Current Sensor

  Model Number：TDC-EB

  MOQ：1

•

  Hall Effect Voltage Sensor

  Model Number：TBV-LV

  MOQ：1

•

  Hall Effect Voltage Transmitter

  Model Number：TBV-AS12/24 Series

  MOQ：1

•

  RMS Dismountable Hall Effect Current Transmitter

  Model Number：TKC-KDRA Series

  MOQ：1

Product Description

The CR4211 Series Current Transducers are self powered. The CR4211 transducer is calibrated to provide a 0-10 VDC signal that is proportional to the average RMS input AC current. Designed for multi-point current sensing, these devices provide excellent features in a high value package.

CR4211 Self Powered AC Current Transducer Features
• 35mm DIN Rail or Panel Mount
• Self powered, requires no external power source
• Use with external current transformers
• Low cost
• Connection diagram printed on case

CR4211 Self Powered AC Current Transducer Specifications
• Basic Accuracy: 0.5%
• Thermal Drift: 500 PPM/°C
• Operating Temperature: 0°C to +60°C
• Installation Category: CAT II
• Pollution Degree: 2
• Insulation Voltage: 2500 VDC
• Altitude: 2000 meter max.
• Frequency Range: 50-400 Hz
• Calibration: Average Sensing, RMS Calibrated
• MTBF: Greater than 100 K hours
• Cleaning: Water-dampened cloth
• Output Load: 2kΩ or Greater
• Greater Response Time: 250 ms
• Relative Humidity: 80% for temperatures up to 31°C and decreasing linearly to 50% at 40°C
• Supply Power: Self powered (output voltage is obtained from current-sensing conductor)

CR4211 Self Powered AC Current Transducer Applications
• Multi-point current sensing and control panels
• Remote Current sensing
• Monitor motor faults
• Monitor Heating Elements
• Monitor Lighting Elements

CR4211 Self Powered AC Current Transducer PART NUMBERS
