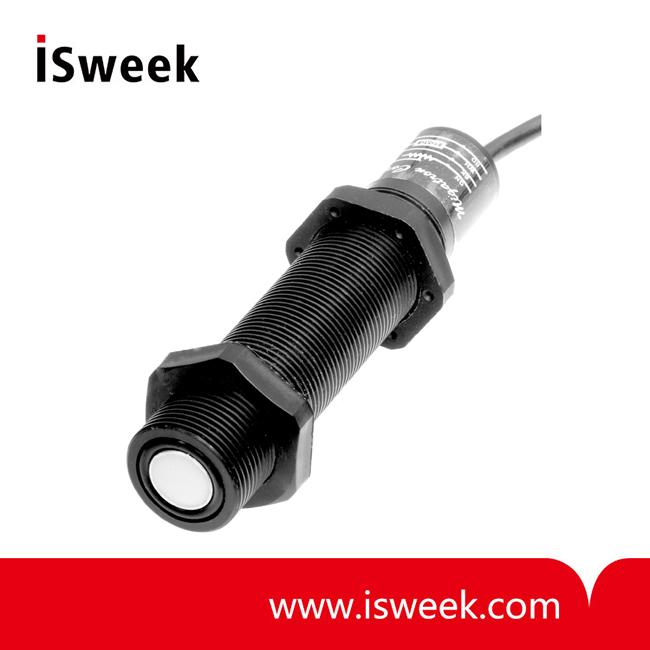

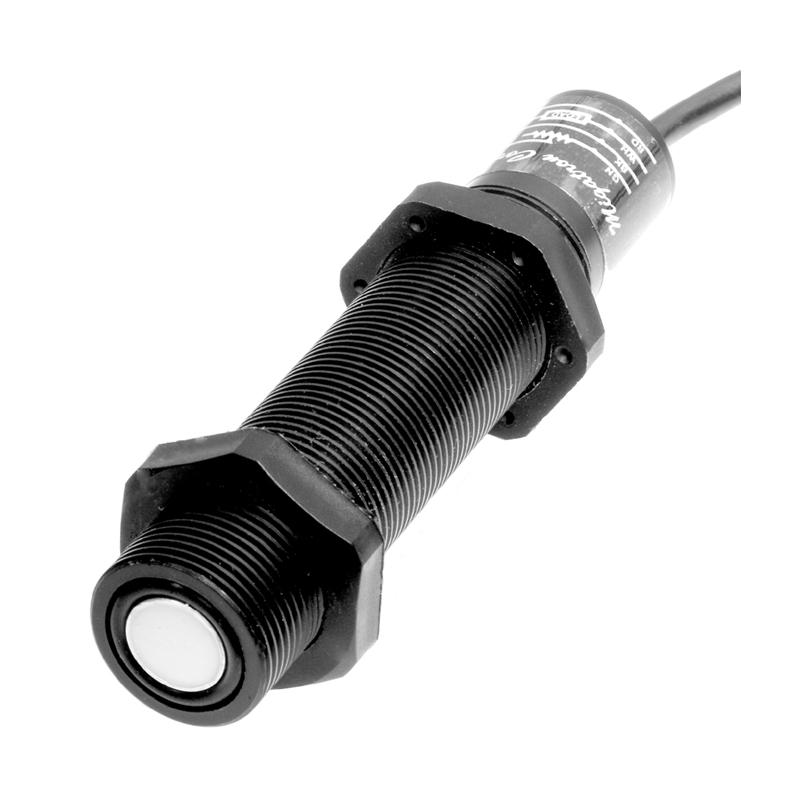

Self Contained Ultrasonic Proximity Sensor
-
Price
Price on request ≥1piece
-
Model Number
RPS-400-30 -
Data Sheet
-
Package
Original packaging -
Specs
RPS-400-30 -
Quantity
- +Send Inquiry
Find Similar Products
-
LV-MaxSonar-EZ1 High Performance Ultrasonic Rangefinder
Model Number：MB1010
MOQ：1
-
USB-CarSonar-WR USB Ultrasonic Proximity Sensor
Model Number：MB8450
MOQ：1
-
I2CXL-MaxSonar-EZ Series Industrial Indoor Ultrasonic Sensors MB1202, MB1212
Model Number：MB1222, MB1232, MB1242
MOQ：1
-
XL-MaxSonar-WR Series Ultrasonic Sensor MB7051, MB7052, MB7060, MB7062, MB7070
Model Number：MB7072, MB7076, MB7092
MOQ：1
-
LV-MaxSonar-EZ0 High Performance Ultrasonic Rangefinder
Model Number：MB1000
MOQ：1
-
ParkSonar-EZ Series Ultrasonic Proximity Sensors MB1001, MB1002, MB1005, MB1006
Model Number：MB1007, MB1008, MB1009
MOQ：1
Product Description
RPS-400-30 Ultrasonic Proximity Sensor Features
• Self Contained
• Sensing Range 5 - 30”
• Narrow Sensing Beam
• High Frequency 222khz
• Operates in Hostile Environments
• Operating Voltage 12-30VDC
• NPN Transistor Output
• Externally Adjustable Sensing Range
RPS-400-30 Ultrasonic Proximity Sensor Description
The RPS-400-30 has a 22mm barrel housing, completely self-contained, 12-30VDC powered ultrasonic proximity sensor. A sealed transducer provides protection in environments where dirt and moisture are a problem. The sensor is constructed of Delrin plastic with a silicone rubber sensing face. This sensor is range or distance sensitive, enabling the sensor to detect objects within the desired range, and reject objects outside the desired range.
The RPS-400-30 is a solid state sensor and has an NPN open collector transistor output. For initial setup purposes, a built in LED indicator illuminates when the ultrasonic waveform is reflected back to the unit within the preset range.
The sensing range is fixed or adjustable. By connecting a fixed resistor or adjustable potentiometer between the green lead and black lead of the cable the maximum ranges can be set from 5 to 30 inches. The resistor chart, on the data sheet, provides resistor values and the approximate resulting sensing ranges.
The ultrasonic sensor can be used as a proximity sensor or level sensor. It is equally effective on liquid, metal, plastic and glass targets regardless of color, density, or transparency. Standard 6ft. cable is provided. Optional cable lines are available.
RPS-400-30 Ultrasonic Proximity Sensor Specifications
• Self Contained
• Sensing Range 5 - 30”
• Narrow Sensing Beam
• High Frequency 222khz
• Operates in Hostile Environments
• Operating Voltage 12-30VDC
• NPN Transistor Output
• Externally Adjustable Sensing Range
RPS-400-30 Ultrasonic Proximity Sensor Description
The RPS-400-30 has a 22mm barrel housing, completely self-contained, 12-30VDC powered ultrasonic proximity sensor. A sealed transducer provides protection in environments where dirt and moisture are a problem. The sensor is constructed of Delrin plastic with a silicone rubber sensing face. This sensor is range or distance sensitive, enabling the sensor to detect objects within the desired range, and reject objects outside the desired range.
The RPS-400-30 is a solid state sensor and has an NPN open collector transistor output. For initial setup purposes, a built in LED indicator illuminates when the ultrasonic waveform is reflected back to the unit within the preset range.
The sensing range is fixed or adjustable. By connecting a fixed resistor or adjustable potentiometer between the green lead and black lead of the cable the maximum ranges can be set from 5 to 30 inches. The resistor chart, on the data sheet, provides resistor values and the approximate resulting sensing ranges.
The ultrasonic sensor can be used as a proximity sensor or level sensor. It is equally effective on liquid, metal, plastic and glass targets regardless of color, density, or transparency. Standard 6ft. cable is provided. Optional cable lines are available.
RPS-400-30 Ultrasonic Proximity Sensor Specifications
|
Operational Range: |
Adjustable 5 - 30" |
|
Power Input: |
12 - 30VDC |
|
Input Current: |
30mA |
|
Ambient Temperature: |
0 - 50°C or 32 - 122°F |
|
Humidity: |
0 - 95% Non-Condensing |
|
Housing: |
Acetal Plastic with Silicone sensing face |
|
Output: |
NPN Open Collector Transistor |
|
Current Load: |
60mA continuous |
|
Transducer Frequency: |
222kHz |
|
Response Time: |
30ms - On / 30ms - Off |
|
Weight: |
4 ounces |
