Secondary Standard Pyranometer
-
Price
Price on request ≥1piece
-
Model Number
MS-802/MS-802F -
Data Sheet
-
Package
Original packaging -
Specs
MS-802/MS-802F -
Quantity
- +Send Inquiry
Find Similar Products
-
Advanced Performance Photoelectric Sensor
Model Number：H60 Series
MOQ：1
-
Compact Photoelectric Sensor
Model Number：RP18 Series
MOQ：1
-
Cylindrical Photoelectric Sensor
Model Number：M12 Series
MOQ：1
-
Cylindrical Photoelectric Sensor
Model Number：M18 Series
MOQ：1
-
Universal Mount Photoelectric Sensor
Model Number：MP Series
MOQ：1
-
Miniature Photoelectric Sensor
Model Number：RP32 Series
MOQ：1
Product Description

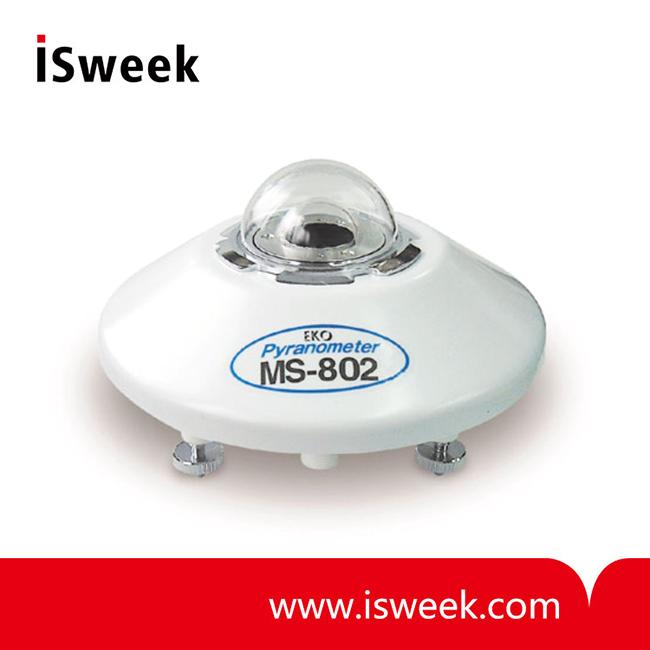

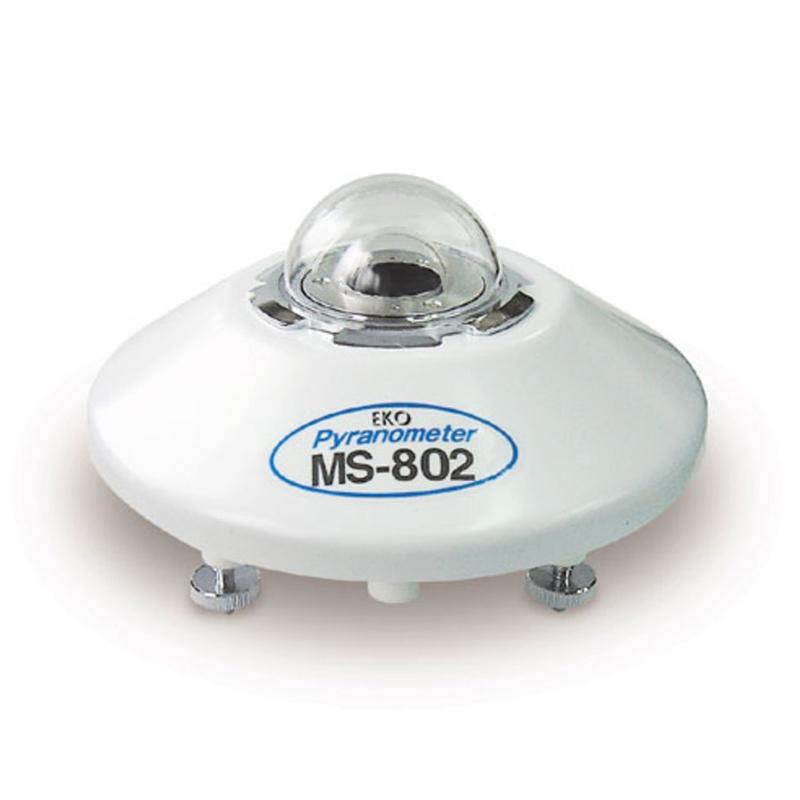

MS-802 Secondary Standard Pyranometer Description
The MS-802 Secondary Standard Pyranometer is the ultimate reference sensor to measure global solar irradiance with the highest precision. Its robust brass mechanical construction makes it a durable sensor suitable to be used in harsh environments. The MS-802 is used as standard for PV research and climatol- ogy studies around the world.

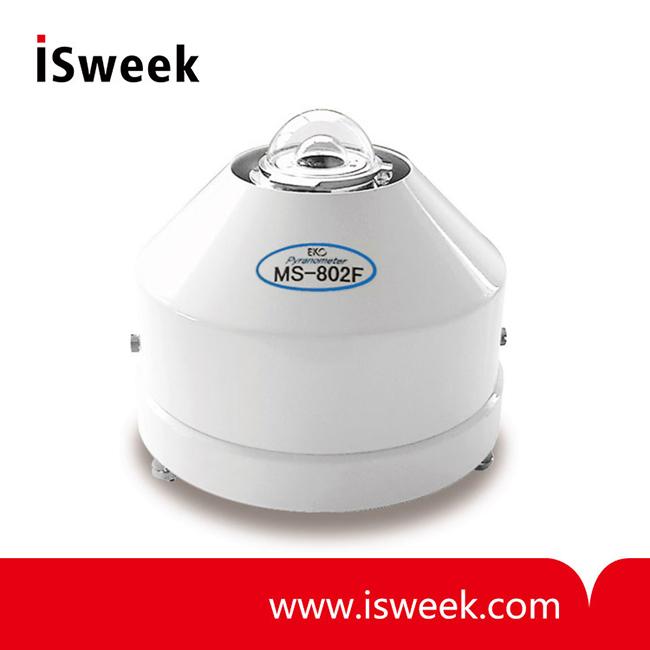

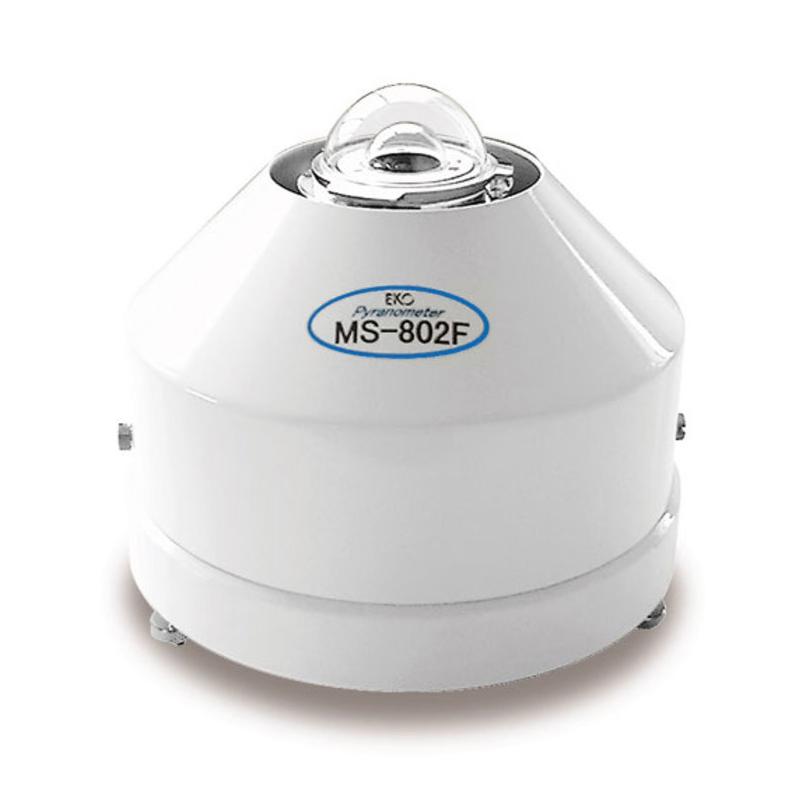

In combination with a Sun tracker (STR-series) or manual shading ring (RSR-01), respectively the Global Normal Incidence (GNI) and Diffuse (DHI) irradiance can be measured. The MS-802F is a MS-802 with integrated ventilator unit to improve the performance under various environmental conditions (prevents or minimizes the effect of dew, rain, snow, ice and dust).
MS-802 Secondary Standard Pyranometer Features
• Secondary Standard Pyranometer
• Fast Response Time (95% < 5S)
• Temperature Compensated In A Wide Temperature Range
• High Quality Optical Glass Domes For Proper Cosine Response
• MS-802F is an MS-802 with a 110 VAC/12 VDC Ventilation System To Prevent Any Possible Influince Of Frost, Snow And Dus
MS-802 Secondary Standard Pyranometer Specifications
The MS-802 Secondary Standard Pyranometer is the ultimate reference sensor to measure global solar irradiance with the highest precision. Its robust brass mechanical construction makes it a durable sensor suitable to be used in harsh environments. The MS-802 is used as standard for PV research and climatol- ogy studies around the world.
In combination with a Sun tracker (STR-series) or manual shading ring (RSR-01), respectively the Global Normal Incidence (GNI) and Diffuse (DHI) irradiance can be measured. The MS-802F is a MS-802 with integrated ventilator unit to improve the performance under various environmental conditions (prevents or minimizes the effect of dew, rain, snow, ice and dust).
MS-802 Secondary Standard Pyranometer Features
• Secondary Standard Pyranometer
• Fast Response Time (95% < 5S)
• Temperature Compensated In A Wide Temperature Range
• High Quality Optical Glass Domes For Proper Cosine Response
• MS-802F is an MS-802 with a 110 VAC/12 VDC Ventilation System To Prevent Any Possible Influince Of Frost, Snow And Dus
MS-802 Secondary Standard Pyranometer Specifications
|
Specifications (typical) |
MS-802 / MS-802F |
|
ISO 9060 classification |
Secondary Standard |
|
Response time 95% (sec) |
< 5 |
|
Zero offset - Thermal radiation (200W/m²) |
< 6 W/m² |
|
Zero offset - Temperature change (5K/hr) |
< 2 W/m² |
|
Non-stability (change/year) |
< 0.5 % |
|
Non-linearity (at 1000W/m²) |
< 0.2 % |
|
Directional response (at 1000W/m²) |
< 10 W/m² |
|
Spectral selectivity (0.35-1.5µm) |
< 1 % |
|
Temp. response (for 50°C band) |
< 1 % |
|
Tilt response (at 1000W/m²) |
< 0.2 % |
|
Sensitivity (µV/W • m-2) |
Approx. 7 |
|
Impedance (Ω) |
Approx. 500 |
|
Operating temperature range (°C) |
- 40 to +80 |
|
Irradiance range (W/m2) |
0 - 4000 W/m2 |
|
Cable length |
10m |
|
Wavelength range |
285 to 3000 nm |
