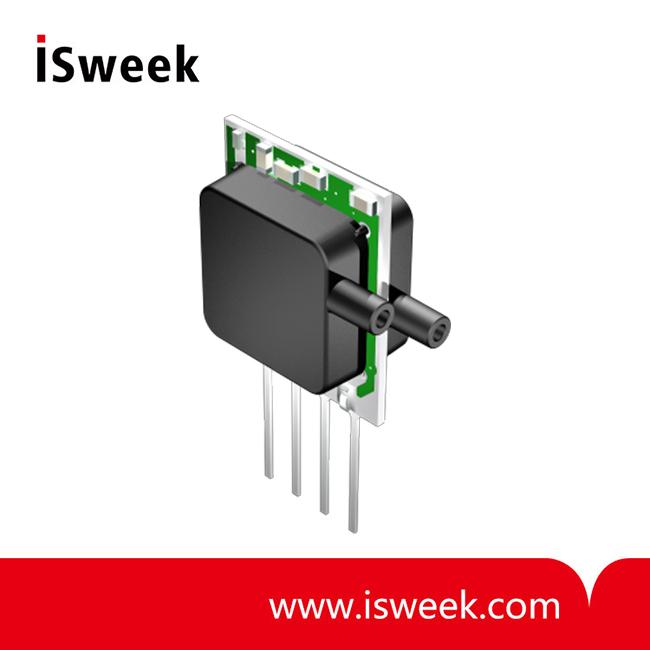

Miniature Amplified Pressure Sensors

SAMP Series Miniature Amplified Pressure Sensors General Description
The Miniature Amplified line of pressure sensors is based upon technology developed over years of development in the pressure sensor industry. This model provides a ratiometric 4-volt output with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

SAMP Series Miniature Amplified Pressure Sensors Features
• 0 to ±0.3 to 0 to 30 psi Pressure Ranges
• Ratiometric 4V Output
• Temperature Compensated
• Calibrated Zero and Span

SAMP Series Miniature Amplified Pressure Sensors Applications
• Medical Instrumentation
• Environmental Instrumentation
• HVAC Instrumentation

SAMP Series Miniature Amplified Pressure Sensors
Pressure Sensor Ratings
Environmental Specifications
Supply Voltage, Vs
 +4.5 to +5.5 Vdc
 Compensated Temperature
 5 to 50 °C
Common-mode pressure
 -10 to +10 psig
 Operating Temperature
 -25 to 85 °C
Lead Temperature, max (soldering 2-4 sec.)
 250°C
 Storage Temperature
 -40 to 125 °C


Humidity Limits
 0 to 95% RH (non condensing)

SAMP Series Miniature Amplified Pressure Sensors Standard Pressure Ranges

Part Number
 		Operating Pressure
 		Nominal Span
 		Proof Pressure
 		Burst Pressure
0.3 PSI-Dx-4V-MINI
 		±0.3 PSI
 		4 V
 		5 PSI
 		10 PSI
0.3 PSI-G-4V-MINI
 		0 - 0.3 PSI
 		4 V
 		5 PSI
 		10 PSI
1 PSI-Dx-4V-MINI
 		±1 PSI
 		4 V
 		5 PSI
 		10 PSI
1 PSI-G-4V-MINI
 		0 - 1 PSI
 		4 V
 		5 PSI
 		10 PSI
5 PSI-Dx-4V-MINI
 		± 5 PSI
 		4 V
 		15 PSI
 		30 PSI
5 PSI-G-4V-MINI
 		0 - 5 PSI
 		4 V
 		15 PSI
 		30 PSI
15 PSI-A-4V-MINI
 		0 - 15 PSIA
 		4 V
 		45 PSI
 		60 PSI
15 PSI-Dx-4V-MINI
 		±15 PSI
 		4 V
 		45 PSI
 		60 PSI
15 PSI-G-4V-MINI
 		0 - 15 PSI
 		4 V
 		45 PSI
 		60 PSI
30 PSI-A-4V-MINI
 		0 - 30 PSIA
 		4 V
 		60 PSI
 		60 PSI
30 PSI-Dx-4V-MINI
 		±30 PSI
 		4 V
 		60 PSI
 		60 PSI
30 PSI-G-4V-MINI
 		0 - 30 PSI
 		4 V
 		60 PSI
 		100 PSI
BARO-A-4V-MINI
 		600 - 1100 mbar
 		4 V
 		45 PSI
 		60 PSI
