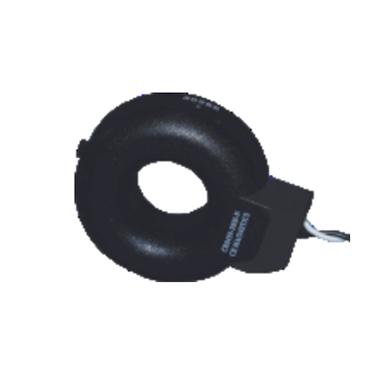

Revenue Grade Wire Lead Current Transformer

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    CR8459-2000-N

  • Data Sheet

  • Package

    Original packaging

  • Specs

    CR8459-2000-N

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

CR Magnetics CR8400 Series of Wire Lead Current Transformers are available in a wide range of sizes and materials to meet any AC current sensing needs.  Major applications include ground fault relays, current measurements, power monitoring and over/under current sensing. This series of transformers provides the benefit of a high accuracy remote monitor for cost sensitive projects. Our Revenue Grade CTs (-N) are made from a nickel alloy core which provides the most linear response over temperature and current level.

CR8459-2000-N Revenue Grade Wire Lead Current Transformer Features
• Low cost
• 5 standard sizes
• Non-contact, isolated measurement

CR8459-2000-N Revenue Grade Wire Lead Current Transformer Specifications
• Case Material: Polypropylene Resin
• Construction: Epoxy Encapsulated
• Operating Temprature: -25°C to +66°C
• Insulation Resistance: 100 M ohms @ 500 Vdc
• High Potential: 1500 volts x 1 minute
• Frequency: 50 to 400 Hz

CR8459-2000-N Revenue Grade Wire Lead Current Transformer Applications
• Over/under current sensing
• Ground Faults
• Current measurements
• Power monitoring
