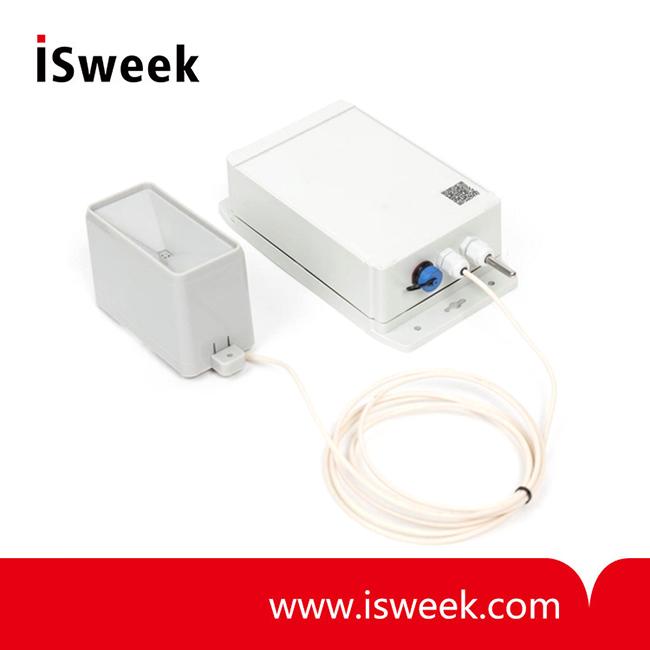

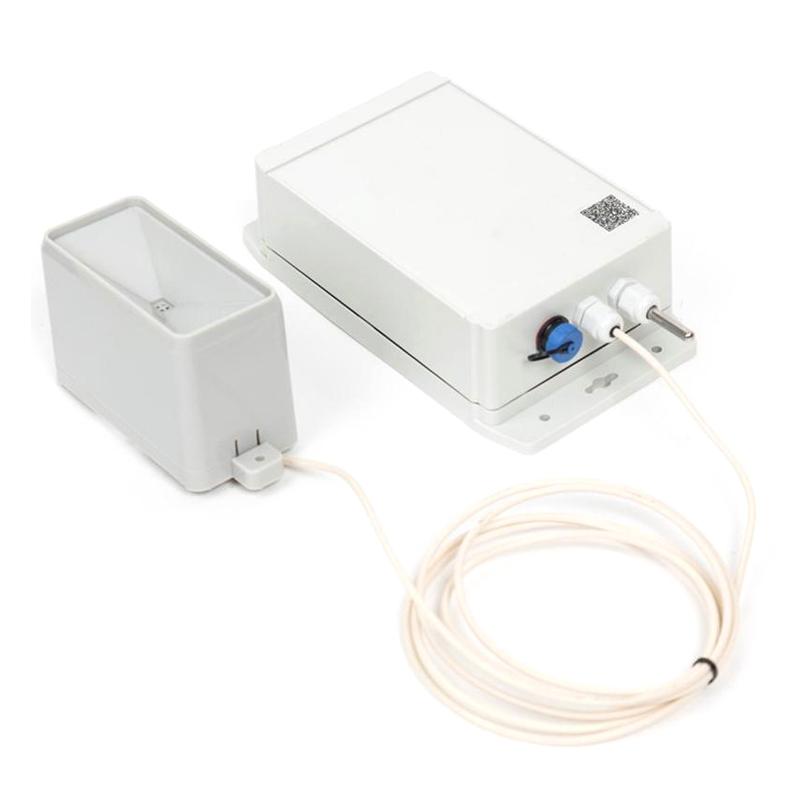

Rain Gauge Sensor
-
Price
Price on request ≥1piece
-
Model Number
Pluviometer -
Data Sheet
-
Package
Original packaging -
Specs
Pluviometer -
Quantity
- +Send Inquiry
Product Description
Pluviometer
The rain gauge sensor allows collecting real time information and analysis of rain fall data and atmospheric temperature.
Rain Gauge Sensor BENEFITS
• Continuous measurement of rainfall data
• Improved the planning of water management strategies
• Suitable for short and long term installations
• Protection class: IP66
• Promotes statistical analysis on climate change
• Rain intensity alarms
• Direct connection to SIGFOX and LoRa communications
Rain Gauge Sensor TECHNICAL DESCRIPTION
The rain gauge sensor allows collecting real time information and analysis of rain fall data and atmospheric temperature.
Rain Gauge Sensor BENEFITS
• Continuous measurement of rainfall data
• Improved the planning of water management strategies
• Suitable for short and long term installations
• Protection class: IP66
• Promotes statistical analysis on climate change
• Rain intensity alarms
• Direct connection to SIGFOX and LoRa communications
Rain Gauge Sensor TECHNICAL DESCRIPTION
|
Size |
180x160x90 mm |
|
Weight |
450g |
|
Protecction class |
IP66 |
|
Communication |
GSM/M2M/GPRS data transmission network Quad-band, 850/900/1800/1900 Mhz The user must insert the SIM of the network operator Optionally, high-performance external antenna |
|
Accuaracy |
+/- 3 l/m2 |
|
Temperature |
-20ºC to 65ºC |
|
Power supply |
2 primary lithium-thionyl chloride high power batteries |
|
Sensor description |
Sensor measures the rate of precipitation by means of a weighing system, which allows to know the water collected. It also incorporates a self-discharge system |
|
Reports |
Regular reporting of rainfall data |
