Product Description

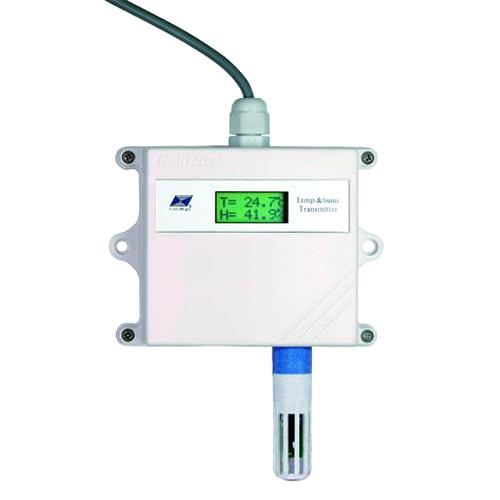

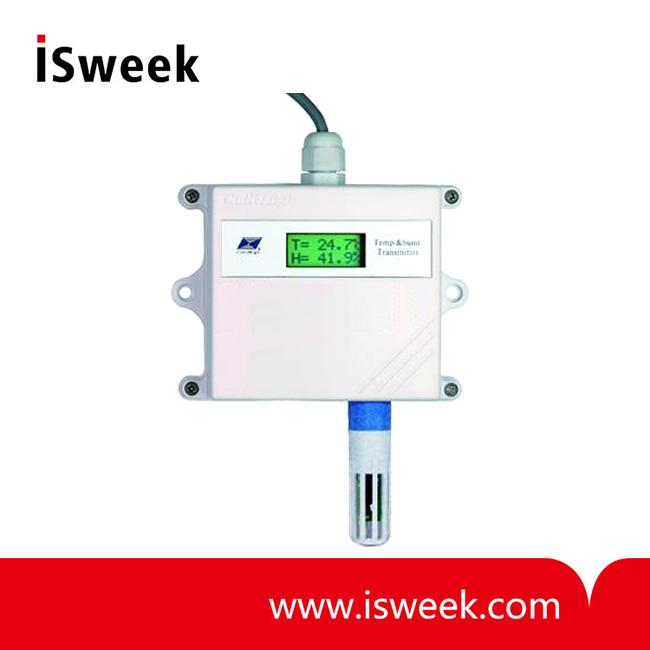

JWSL-6 Protective Temperature and Humidity Transmitter Introduction
Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free.
JWSL-6 Protective Temperature and Humidity Transmitter Characteristic
• Low price
• Low drift
• Fast response
• Strong anti-interference
• Easy installation
• Stable performance
• Long service life
• Many kind of analog output signal
• Special filter design, can effectively reduce measurement error from the wind speed , prolong probe's service life
JWSL-6 Protective Temperature and Humidity Transmitter Parameters
Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free.
JWSL-6 Protective Temperature and Humidity Transmitter Characteristic
• Low price
• Low drift
• Fast response
• Strong anti-interference
• Easy installation
• Stable performance
• Long service life
• Many kind of analog output signal
• Special filter design, can effectively reduce measurement error from the wind speed , prolong probe's service life
JWSL-6 Protective Temperature and Humidity Transmitter Parameters
| DC power supply | Current output: DC 24V (22V~26V) |
| Voltage output: DC 24V (12V~24V) | |
| Net output: DC 24V (12V~24V) | |
| AC power supply | AC 24V (18V~24V) |
| Max current | Two wires system output: 40mA (DC 24V) |
| Three wires system output: 50mA (DC 24V) | |
| Voltage output: 20mA (DC 24V) | |
| Net output: 20mA (DC 24V) | |
| Accuracy | Humidity: ±3％RH (5～95％RH, 25°C) |
| Temperature: ± 0.5°C (25°C) | |
| Working environment | Humidity: 0～100%RH (no condensation) |
| Temperature: -10℃～60°C | |
| Range | Humidity: 0～100%RH |
| Temperature: 0°C～50°C | |
| Response time | ≤15s (1m/sair speed) |
| Long-term stability | Humidity: ≤ 1%RH/y |
| Temperature: ≤ 0.1℃/y | |
| Output signal | Current output: 4～20mA |
| Voltage output: 0～5V | |
| Net output: RS485/RS232 | |
| Load capacity | Voltage output: output impedance ≤ 250Ω |
| Current output: ≤ 500Ω | |
| Installation | Wall mounted fixed on the wall |
| Pipe type flange or thread installation (thread M22x1.5) | |
| Shell | ABS white 117mm x 86mm x 41mm (without probe) |
