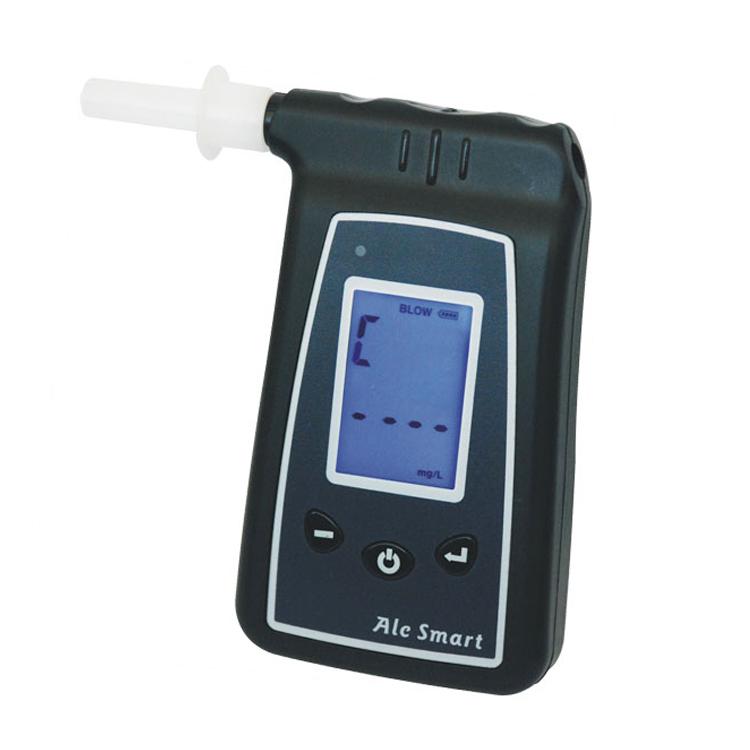

Portable Breath Alcohol Tester
-
Price
Price on request ≥1piece
-
Model Number
AT8020 -
Data Sheet
-
Package
Original packaging -
Specs
AT8020 -
Quantity
- +Send Inquiry
Product Description
AT8020 Breath Alcohol Tester Brief introduction
AT8020 is an advanced portable breath alcohol tester, its core component adopts new high-tech electrochemical sensor which can get more accurate alcohol concentration value, with strong anti-interference ability. The admirable human-device interface makes operation more concise and convenient, the color LCD makes interface more clear and beautiful. Moreover, the one-off anti-return mouthpiece design ensures the health and safety of users.
AT8020 Breath Alcohol Tester Main Technical Features
• Advanced 16 bit low power consumption MCU
• Electrochemical sensor, good reliability and accuracy
• LCD indication
• Simple button operation
• Low pressure and testing rejection function
• Measurement unit and alarming level adjustable function
• Testing record review function
• Passive testing available
• Short warm-up time, fast response and resume
• Adopt anti-return mouthpiece for health and safety
• Power saved design
AT8020 Breath Alcohol Tester Technical information:
• Sensor type: Electrochemical (Fuel cell) sensor
• Test Range: 0.000～2.000mg/l (0.40%B.A.C, 4.0‰B.A.C, 4.0g/l)
• Alarm level: 0.250 mg/L (could be modified)
• Resolution: 0.01 mg/L
• Display: 1.8 inch LCD screen
• Working Environment:
Temperature: 10℃～40℃
Humidity: <95%RH (No Dews)
• Storage conditions: 0℃～50℃
• Battery: 3 x AAA 1.5V batteries
• Dimension l x b x h: 114 x 66 x 26mm
• Weight: about 100g (excluding battery)
• Sensor life: 2 years
• Accuracy:
<0.400: 0.050 mg/L
0.400 - 1.000: 20%
≥1.000: 30%
AT8020 is an advanced portable breath alcohol tester, its core component adopts new high-tech electrochemical sensor which can get more accurate alcohol concentration value, with strong anti-interference ability. The admirable human-device interface makes operation more concise and convenient, the color LCD makes interface more clear and beautiful. Moreover, the one-off anti-return mouthpiece design ensures the health and safety of users.
AT8020 Breath Alcohol Tester Main Technical Features
• Advanced 16 bit low power consumption MCU
• Electrochemical sensor, good reliability and accuracy
• LCD indication
• Simple button operation
• Low pressure and testing rejection function
• Measurement unit and alarming level adjustable function
• Testing record review function
• Passive testing available
• Short warm-up time, fast response and resume
• Adopt anti-return mouthpiece for health and safety
• Power saved design
AT8020 Breath Alcohol Tester Technical information:
• Sensor type: Electrochemical (Fuel cell) sensor
• Test Range: 0.000～2.000mg/l (0.40%B.A.C, 4.0‰B.A.C, 4.0g/l)
• Alarm level: 0.250 mg/L (could be modified)
• Resolution: 0.01 mg/L
• Display: 1.8 inch LCD screen
• Working Environment:
Temperature: 10℃～40℃
Humidity: <95%RH (No Dews)
• Storage conditions: 0℃～50℃
• Battery: 3 x AAA 1.5V batteries
• Dimension l x b x h: 114 x 66 x 26mm
• Weight: about 100g (excluding battery)
• Sensor life: 2 years
• Accuracy:
<0.400: 0.050 mg/L
0.400 - 1.000: 20%
≥1.000: 30%
