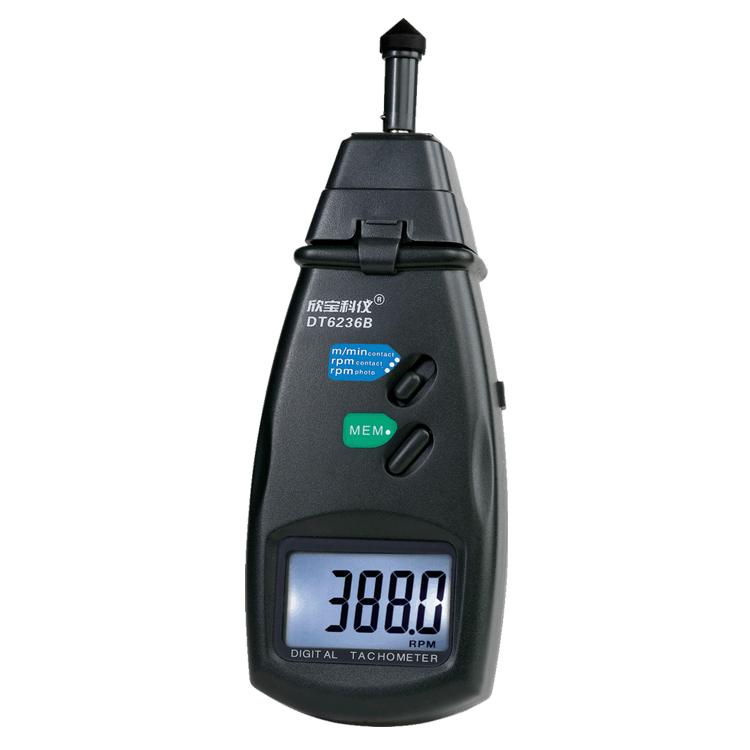

DT6236B Photo/Contact Tachometer

5 digits 18mm (0.6") White backlight LCD
Accuracy: ±(0.05%+1 digit) of reading
Sampling Time: 0.5 sec(over 120 RPM)
Range Select: Auto-Ranging
Memory: Max. value, Min. value, Last value. Can store 96s data.
Time Base: 6MHz Quartz crystal
Detecting Distance: 50~500mm
Measuring Range:
  Photo Tach: 2.5~99,999 RPM
  Contact Tach: 0.5~19,999 RPM
  Surface Speed: 0.05~1,999.9 m/min
Resolution:
  Photo Tach: 0.1 RPM From: (2.5~999.9 RPM)
                    1 RPM From: (over 1,000 RPM)
  Contact Tach: 0.1 RPM From: (0.5~999.9 RPM)
                      1 RPM From: (over 1,000 RPM)
  Surface Speed: 0.01 m/min (0.05~99.99 m/min)
                        0.1 m/min (over 100 m/min)
Battery: 4x1.5V AA Size Battery or to external
