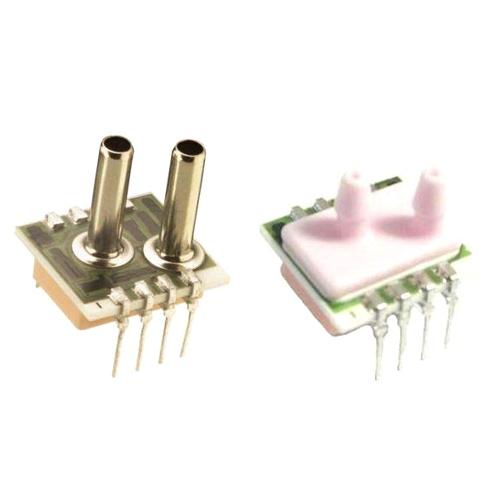

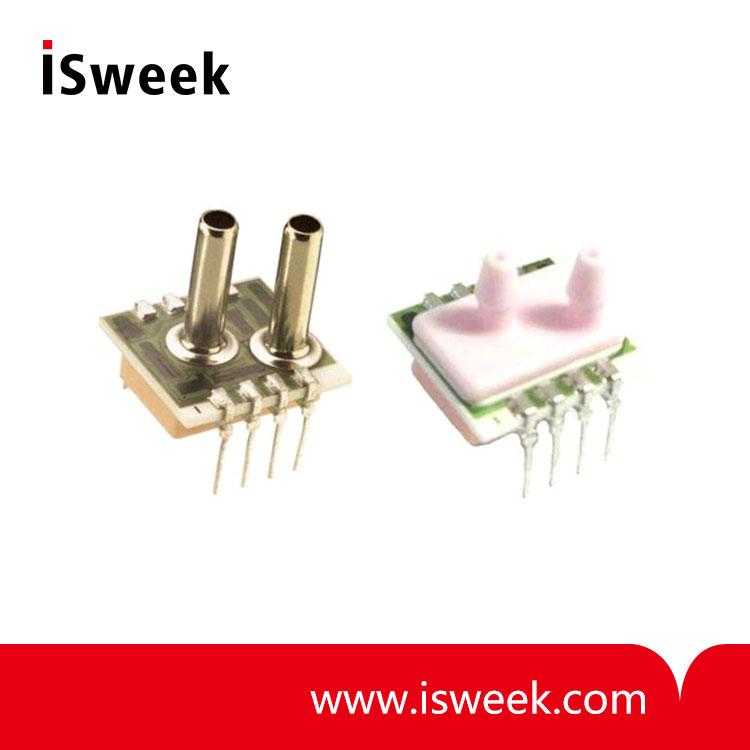

1200 Series PC Board Mountable Pressure Sensors Description
The 1200 series is a temperature compensated, piezoresistive silicon pressure sensor packaged in a dual-in-line configuration. Integral temperature compensation is provided over a wide temperature range using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize pressure sensitivity variations by programming the gain of an external differential amplifier.
1200 Series PC Board Mountable Pressure Sensors Features
• PC Board Mountable Pressure Sensor
• Temperature Compensated
• 0 - 100mV Output
• Gage, Absolute, Differential
• Current/Voltage Excitation
• Dual-in-Line Package
• 1.0% Interchangeable Span (provided by gain set resistor)
• Solid State Reliability
• Wide Compensated Range
1200 Series PC Board Mountable Pressure Sensors Applications
• Medical Instruments
• Airspeed and Alititude Measurements,
• Process Control
• Factory Automation
• Vacuum Measurement
• Handheld Calibrators
• Leak Detection
• Sleep Apnea
• Respirators/Ventilators
• Air Duct Flow
1200 Series PC Board Mountable Pressure Sensor Product Definition
|
Model |
Pressure Ranges |
Type (G = Gage
A = Absolute
D = Differential)
|
Span |
Supply |
Compensated
Temperature
|
Unique Feature | |
|
Voltage |
Current |
||||||
|
1210 Sub psi |
0 - 5, 10" in H2O |
G, D |
40mV |
|
1.5mA |
0°C to 60°C |
Barbed port option
Current excitation
|
|
1210 1psi |
0 - 1psi |
G, D |
100mV |
|
1.5mA |
0°C to 50°C |
Barbed port option
Current excitation |
|
1210 Standard |
0 - 2, 5, 15, 30, 50, 100psi
|
G, A, D |
100mV |
|
1.5mA |
0°C to 50°C |
Barbed port option
Current excitation |
|
1220 1ps |
0 - 1psi |
G, D |
50mV |
1.235Vref |
|
0°C to 50°C |
Voltage excitation |
|
1220 Standard |
0 - 2, 5, 15, 30, 50, 100psi
|
G, A, D |
50mV |
1.235Vref |
|
0°C to 50°C |
Voltage excitation |
|
1230
UltraStable™
|
0 - 15, 30, 50, 100psi
|
G, A, D |
100mV |
|
1.5mA |
-20°C to +85°C |
Current excitation
UltraStable™ |
|
1240
UltraStable™
|
0 - 15, 30, 50, 100psi |
G, A, D |
50mV |
1.235Vref |
|
-20°C to +85°C |
Voltage excitation
UltraStable™ |
