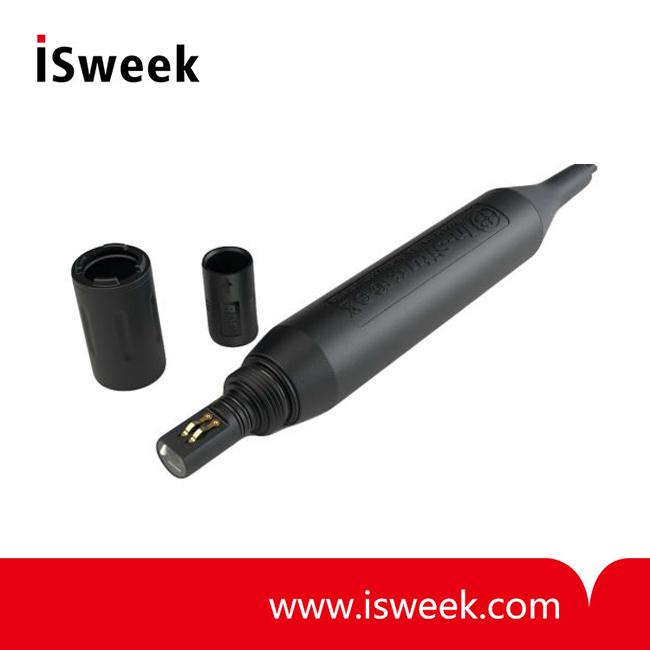

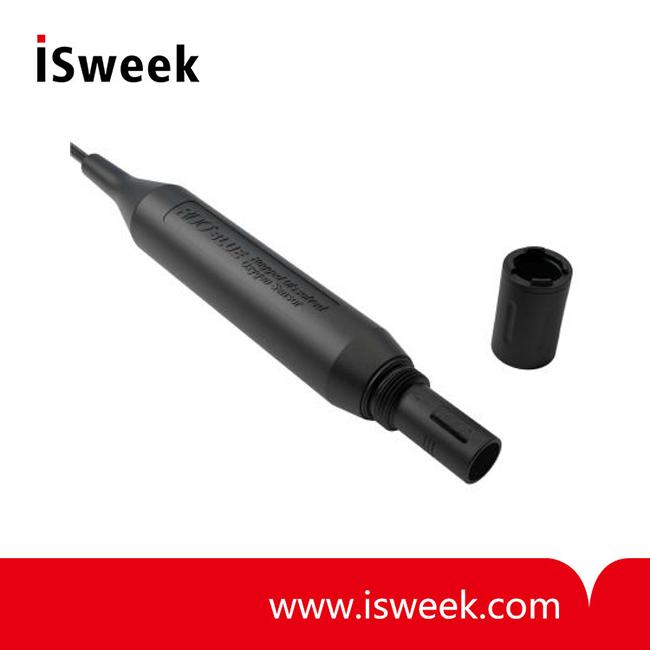

Optical Dissolved Oxygen Sensor
-
Price
Price on request ≥1piece
-
Model Number
RDO BLUE -
Data Sheet
-
Package
Original packaging -
Specs
RDO BLUE -
Quantity
- +Send Inquiry
Find Similar Products
-
LuminOx Fluorescence Optical Oxygen Sensor (O2 Sensor)
Model Number：LOX-02
MOQ：1
-
LuminOx Optical Oxygen Sensor Evaluation Interface Board
Model Number：LOX-EVB
MOQ：1
-
LuminOx Optical Oxygen Sensor LOX-0
Model Number：LOX-0
MOQ：1
-
Industrial Luminescence-based Trace Oxygen Sensor
Model Number：LOX-Trace-1000-BLX
MOQ：1
-
LuminOx Sealed Optical Oxygen Sensor (O2 Sensor)
Model Number：LOX-02-S
MOQ：1
-
LuminOx Flow-through Optical Oxygen Sensor
Model Number：LOX-02-F
MOQ：1
Product Description
RDO® Blue Optical Dissolved Oxygen Sensor Description:
RDO Blue uses In-Situ’s patented Optical Rugged Dissolved Oxygen technology, an EPA-approved dissolved oxygen measurement method ideal for measuring DO and temperature in even the harshest environments. Suitable for handheld use or long-term deployment in fresh water or saltwater, this low-maintenance dissolved oxygen probe offers robust performance at a lower cost than other DO meters.
RDO Blue requires no calibration or conditioning prior to deployment and doesn’t use membranes. The replaceable RDO Smart Sensor Cap stores calibration coefficients for automatic, error-free setup. And a unique, three-layer system provides unmatched chemical and abrasion resistance.

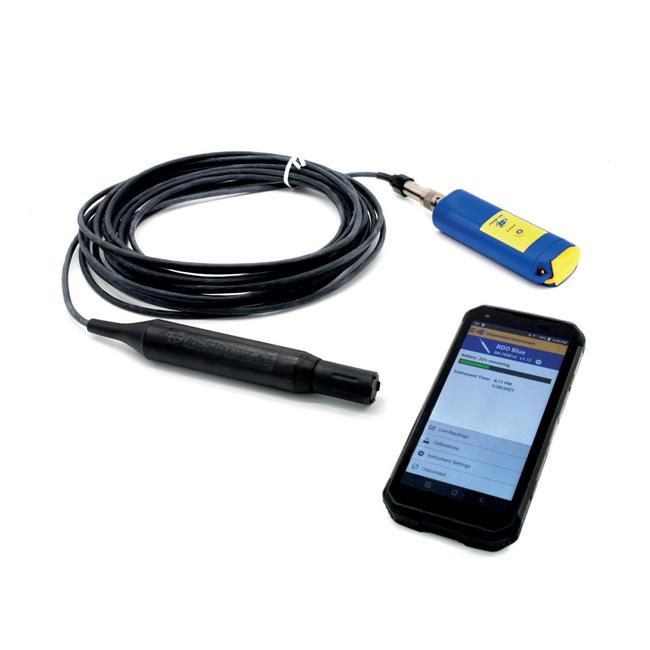

Use included Modbus/RS485 communication protocol to easily integrate with PLC systems or telemetry with HydroVu data services for real-time feedback and process control.
RDO® Blue Optical Dissolved Oxygen Sensor Applications:
• POND AQUACULTURE
• RECIRCULATING AQUACULTURE SYSTEMS
• OPEN PEN AQUACULTURE
• SURFACE WATER SPOT SAMPLING
• REMOTE MONITORING VIA TELEMETRY
RDO® Blue Optical Dissolved Oxygen Sensor Technical parameters:
|
SENSOR RATINGS |
|
|
SENSOR TYPE |
Optical Dissolved Oxygen Sensor |
|
RANGE, DO |
0-60 mg/L; 0-600% Saturation |
|
ACCURACY, DO |
+/- 0.1 mg/L (0-20 mg/L) +/-2% (20-60 mg/L) |
|
RESOLUTION, DO |
0.01 mg/L |
|
RESPONSE TIME, CAP |
T63<5s, T90<45s, T95<60s (RDO-X cap) |
|
UNITS, DO |
mg/L, ppm, % saturation |
|
RANGE, TEMP. |
-5℃ to 50℃ (23°F to 122°F) |
|
ACCURACY, TEMP. |
+/- 0.1℃ |
|
RESOLUTION, TEMP. |
0.01℃ |
|
UNITS, TEMP. |
Celsius, Fahrenheit |
|
SALINITY COMP. |
Fixed or real-time capable |
|
BAROMETRIC COMP. |
Fixed or real-time capable |
|
METHODS |
EPA-approved In-Situ® RDO methods 1002-8-2009, 1003-8-2009, 1004-8-2009 Standard Methods 4500-O |
|
ENVIRONMENTAL RATINGS |
|
|
PRESSURE |
150 psi from 0° to 50℃ |
|
DEPTH |
100m (328ft) @ 25℃ |
|
OPERATING TEMP. (NON-FREEZING) |
-5.0℃ to + 50.0℃（23°F to 122°F） |
|
STORAGE TEMP. |
-40℃ to + 65℃（-40°F to 149°F） |
|
COMPLIANCE |
EMC 2014/30/EU IEC 61000-6-2:2005 EN 55011:2009 |
|
IP RATING |
IP-67 with sensor cap off; IP-68 with sensor cap installed |
|
CHEMICAL RATINGS |
|
|
INTERFERENCES |
Alcohols >5%; hydrogen peroxide > 3%; sodium hypochlorite (commercial bleach) > 3%; gaseous sulfur dioxide; gaseous chlorine. Do not use in organic solvents (e.g., acetone, chloroform, methylene chloride, etc.), which may swell the sensing element (foil matrix) and destroy it. |
|
GENERAL RATINGS |
|
|
DIMENSIONS |
L 22.06 cm (8.69 in) x D 2.95 cm (1.16 in) |
|
WEIGHT |
205 g (0.5 lb) (without cable) |
|
WETTED MATERIALS |
Ryton®(PPS), Cycoloy® (PC/ABS), PC/PMMA, TPU |
|
COMMUNICATION OUTPUT |
Modbus/RS485 |
|
READING RATE |
1 reading every 1 second |
|
POWER REQUIREMENTS |
8 to 36 VDC |
|
POWER CONSUMPTION |
Maximum (measurement): 50 mA at 12 VDC Idle (communication only): 2 mA at 12 VDC |
|
WARRANTY |
2 years from date of shipment |
NOTES: Ryton is a registered trademark of Solvay SA.; Cycoloy is a registered trademark of SABIC GLOBAL Technologies B.V.
