Product Description

PSC-T54U
Infrared Pyrometer for Glass Industry Applications

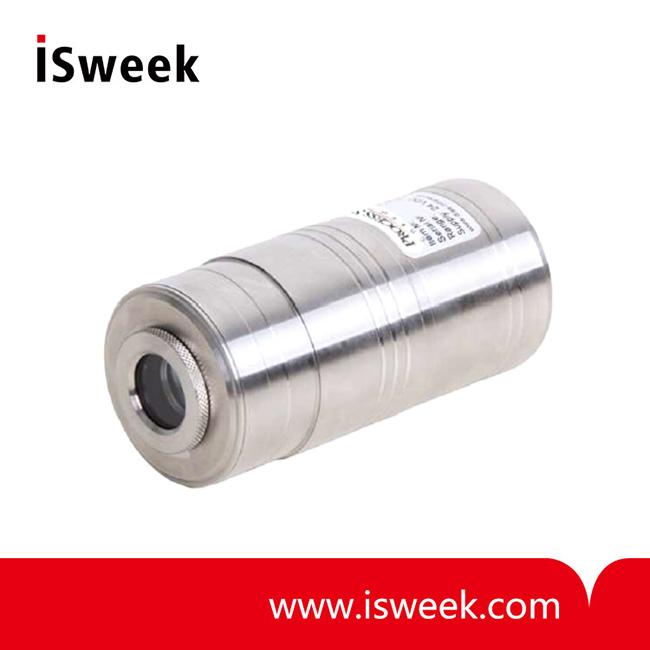

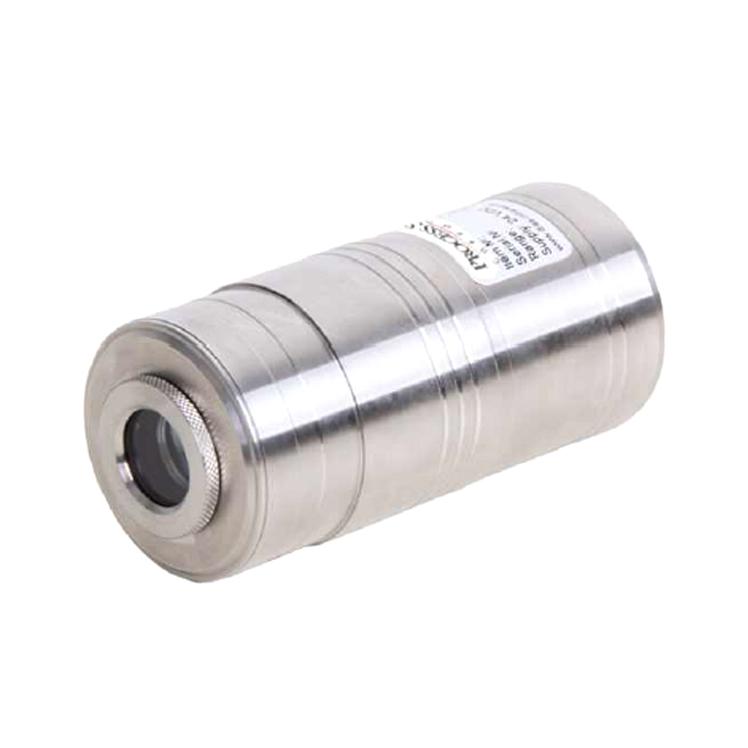

PSC-T54U Non-Contact Infrared Pyrometer Description
The digital PSC-T54U is designed specifically for glass surface applications. Offering a wide temperature range from 350° to 1200°C, it is essential for thin glass surface measurement.

The robust and compact stainless steel housing ensures operation under even the most difficult ambient conditions.

With a minimum response time of only 60 ms, the PSC-T54U is ideal for fast measuring tasks and spot sizes from 5mm.

The standard 0/4 to 20 mA linear output signal allows  seamless  integration  into  existing measurement and control systems. The PSC-T54U boasts a galvanically isolated RS-485 interface and therefore is bus-compatible and uses Modbus RTU protocol.

PSC-Spot software enables simple parameter adjustment of emissivity, sub temperature ranges, response time and data storage when joined to a PC through an RS-485 to USB connection.

PSC-T54U Non-Contact Infrared Pyrometer Features
• Designed for non-contact temperature measurement of ultra-thin glass < 1mm thickness
• Temperature Range: 350° to 1200°C
• High Resolution Optics – Field of View 70:1
• Compact, Rugged Stainless Steel Housing with Protective Hardware for Harsh Environments
• Digital RS-485 and Analog 4-20mA Interfaces for Ease of Installation in Existing Measurement & Control Systems
• Worldwide Application Specialist Support

PSC-T54U Non-Contact Infrared Pyrometer Specifications
Temperature Range
 350° to 1200°C (662° to 2192°F)
Sub Temperature Ranges
 Adjustable via RS-485 Interface Within Overall Temperature Range,
Minimum Span 50°C
Spectral Range
 7.8µm
Distance Ratio
 Approximately 70:1 5.3mm at 370mm
Accuracy
 0.6% of Measured Value in °C or 1K
Reproducibility
 0.3% of Measured Value in °C or 0.5K
NETD
 <0.15K
Response Time (t90)
 60 ms (min.), Adjustable via RS-485 with PSC Spot Software
Emissivity
 0.200 to 1.000, Adjustable via RS-485
Peak/Valley Picker
 Maximum/minimum data storage, Adjustable via RS-485
Output
 0/4 to 20 mA, Temperature Linear, Max Load 700 Ω
Interface
 RS-485 (galvanically isolated), half duplex, max. baud rate 115 kBd,
data protocol Modbus RTU
Alarm Relay
 1 opto relay, R Load  mind. 48 Ω (galvanically isolated) adjustable
within temperature range
Software
 PSC Spot for Windows®
Parameters
 Emissivity, Response Time, Data Storage, Sub Temperature Range,
Transmissivity, Ambient Radiation, adjustable via RS-485
Power Requirement
 24 V DC ±25%, Residual ripple 500 mV
Power Consumption
 Max. 1.5W
Operating Temperature
 0° to 70°C (32° to 158°F)
Storage Temperature
 -20° C to 70°C (-4° to 158°F)
Weight
 Approx. 600g (1.32 lb.)
Housing
 Stainless Steel Round Housing with Connector
Dimensions
 Length: Approx. 105mm Diameter : 50mm
Protection Class Rating
 IP 65 (According to DIN EN 60529 and DIN 40050)
CE Symbol
 According to EU Regulations (EN 50 011)
Standard Equipment
 PSC-T54U, Operation Manual, Inspection Sheet, PSC Spot for Windows® Software
(Without Connection Cable – Must Be Ordered Separately.)
