Product Description

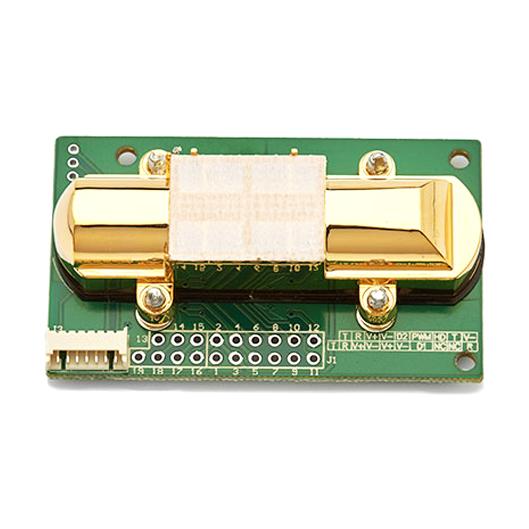

MH-Z14 NDIR CO2 Sensor Infrared CO2 Sensor Module Description

MH-Z14 NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependant, long life. Built-in temperature sensor can do temperature compensation;  and it has digital output and analog voltage output. MH-490W integrate sophisticated infrared absorption gas detection technology, sophisticated light transmission design and sophisticated circuit design.


MH-Z14 NDIR CO2 Sensor Applications
HVAC refrigeration equipment, air quality monitoring equipment, fresh air system, air purification equipment, smart home, and schools.


MH-Z14 NDIR CO2 Sensor Technical Parameters

Working voltage 4.5 V ~ 5.5V DC
Average current <60mA (@5V input)
Peak current 150 mA (@5V input)
Interface level 3.3 V (5V compatible)
Measuring range 0~10000ppmoptional(refer to table 2)
Output signal Serial Port (UART, TTL level)
PWM
Analog output(DAC), 0.4-2V
Preheat time 3min
Response Time T90 <120s
Working temperature 0℃ ~ 50℃
Working humidity 0~90%RH(no condensation)
Weight 15g
Lifespan >5 year

Target Gas Measuring Range Accuracy
Carbon Dioxide (CO2) 0~2000ppm ±(50ppm +3%reading value)
0~5000ppm
0~10000ppm ±10% reading value
