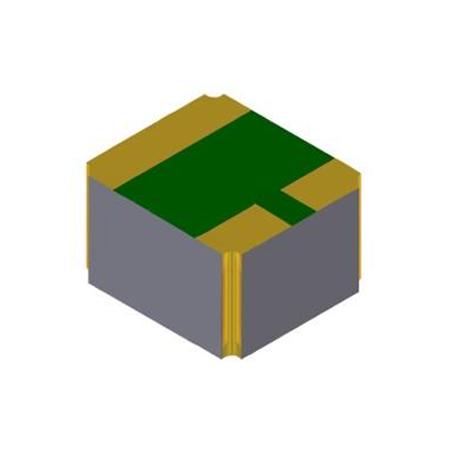

Micro Tilt and Vibration Sensor
-
Price
Price on request ≥1piece
-
Model Number
TVS0713.180 -
Data Sheet
-
Package
Original packaging -
Specs
TVS0713.180 -
Quantity
- +Send Inquiry
Product Description
TVS0713.180 Micro Tilt and Vibration Sensor Descriptions
The Tilt and Vibration Sensor TVS0713.180 is a surface mount passive electronic component that acts as a tilt orientation detector to "wake up" or "switch on/off" depending upon tilt orientation of the sensor.
Fully passive, the sensor requires no signal conditioning and operates with currents as low as 0.2 microamps. In a surface mount package, it measures only 2.85mm x 2.45mm x 1.7mm, it is halogen free with a temperature range from -40 up to +85°C, and it has a wide operating voltage range of 1.8 to 15VDC. It can eliminate the need for accelerometers in many applications.
The TVS0713.180 is particularly useful for the new emerging wearable's market and the Internet of Things whever battery life is critical. Another typical application would be a remote control with a QWERTY keyboard, where the TVS0713.180 can detect if the remote control or the keyboard side is facing upwards.
TVS0713.180 Micro Tilt and Vibration Sensor Features
• Tilt and vibration sensor
• Halogen free
• Wide supply voltage range: 1.80 V to 15 V
• Low operating current
(e.g. Icc max. 0.2µA at Vcc 2V and R 10Meg)
(e.g. Icc max. 2.0µA at Vcc 2V and R 1Meg)
• Noiseless
• R On < 100 Ω
• Protected against environmental stress
• Automated SMT-mounting
• RoHS compliant, lead free
• Specified from -40 °C to +85 °C
• Size 2.85 mm x 2.45 mm x 1.7 mm
• Reacting point: approx. 50 mg
TVS0713.180 Micro Tilt and Vibration Sensor Applications
• Motion detection
• Orientation detection - bottom or top
• System wake up - low power
