Micro Power Monitor
-
Price
Price on request ≥1piece
-
Model Number
GM86 -
Data Sheet
-
Package
Original packaging -
Specs
GM86 -
Quantity
- +Send Inquiry
Product Description

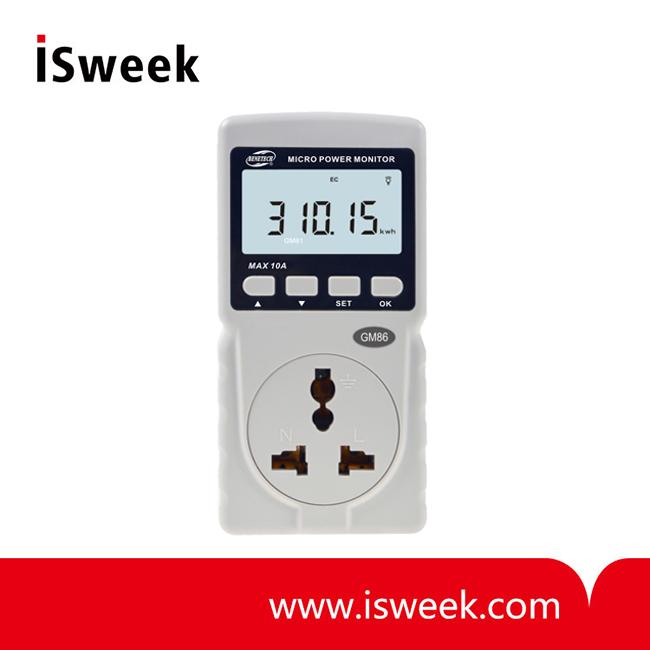

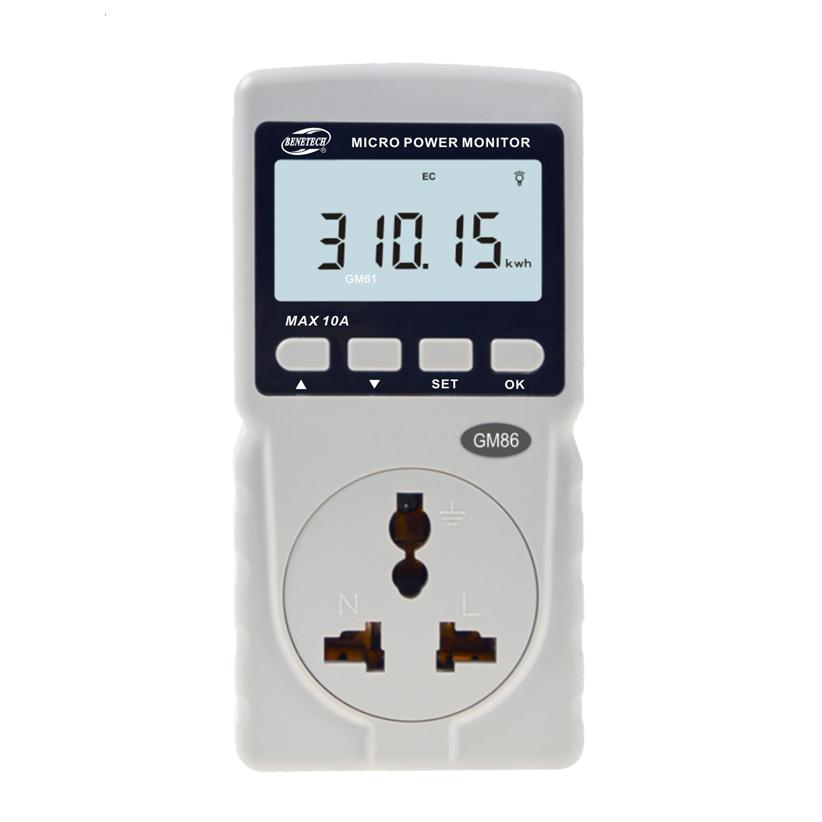

GM86 Micro Power Monitor Introduction
This product adopts the microcomputer chip with high integration and specialized chip for energy metering, along with current sensor and LCD display with high precision, to achieve a comprehensive monitoring of electrical equipment, can be used to monitor the air conditioners, refrigerators and microwave ovens and other household appliances, measuring instruments can also be used as a teaching, but also suitable for families, rental housing, office, laboratory environment.
GM86 Micro Power Monitor Features
• Monitoring the present active power
• Monitoring the present voltage/current/ frequency
• Record powering time
• Record power consumed
• Calculating the CO2 emission volume (0.555kg CO2 may be generated from 1 KWH powerconsumption)
• Power factor pick-up
• Setting overload threshold
• Large LCD display
|
Power supply |
220V 50Hz Max 10A (Less than 2.2KW) |
|
Accuracy |
1.0 |
|
Constant |
6400imp/kWh |
|
Power consumed |
<1W |
|
Operating Temperature |
0~45℃ |
|
Storage Temperature |
-20~60℃ |
|
Backlight |
turn off automatically after 10 seconds |
|
Unit size |
119.5*60*55.7mm |
|
Weight |
121.3g |
