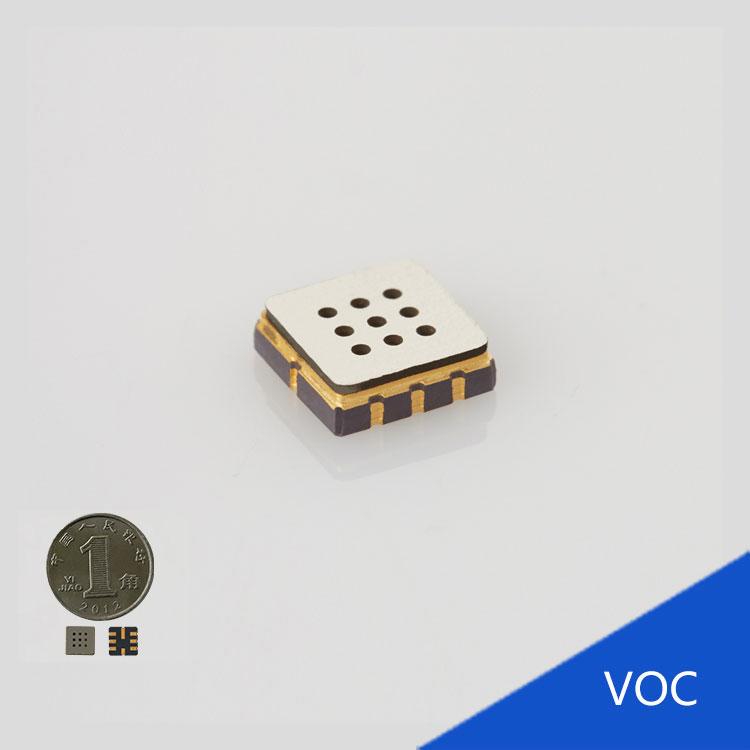

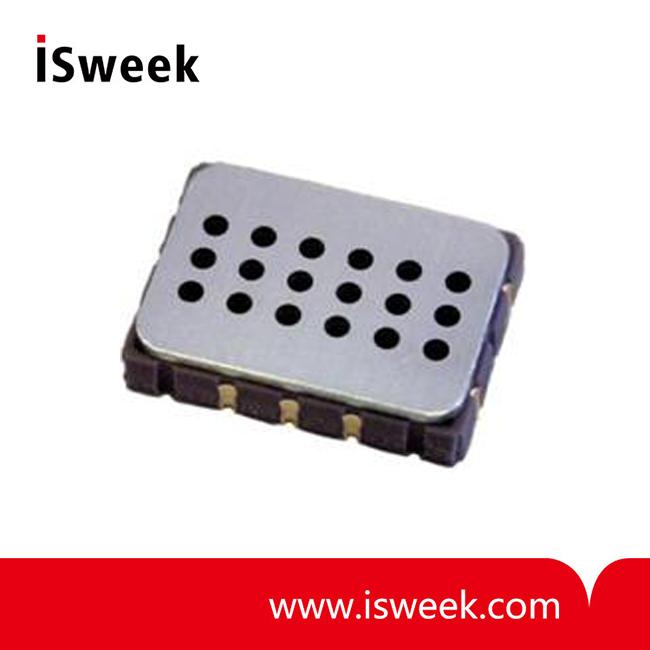

MEMS VOC Gas Sensor

ISweek online 2h ago

Shenzhen Isweek Technology Co., Ltd

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    GM-502B

  • Data Sheet

  • Package

    Original packaging

  • Specs

    GM-502B

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

GM-502B MEMS VOC Gas Sensor Product description：

    MEMS VOC gas sensor is using MEMS micro-fabrication hot plate on a Si substrate base, gas-sensitive materials used in the clean air with low conductivity metal oxide semiconductor material. When the sensor exposed to gas atmosphere, the conductivity is changing as the detected gas concentration in the air. The higher the concentration of the gas, the higher the conductivity. Use simple circuit can convert the change of conductivity of the gas concentration corresponding to the output signal.



GM-502B MEMS VOC Gas Sensor Character：

• MEMS technology, strong structure

• Low power consumption

• High sensitivity

• Fast response and resume

• Simple drive circuit



GM-502B MEMS VOC Gas Sensor Application ：

    Gas leak detection for mobile phones, computers and other consumer electronics applications, also for breathing gas detection control, smoke alarm indoor & etc.



Main Parameter：

Part No.

GM-502B

Sensor Type

MEMS VOC Sensor

Standard Encapsulation

Ceramic

Detection Gas

Ethanol, formaldehyde, toluene &etc.

Detection Range

1~500ppm

Standard Circuit

Conditions

Loop Voltage

VC

≤24V DC

Heater Voltage

VH

2.5V±0.1V AC or DC

Load Resistance

RL

Adjustable

Sensor character

under standard

test conditions

Heater Resistance

RH

80Ω±20Ω（room temperature）

Heater consumption

PH

≤50mW

sensitive materials

resistance

RS

1KΩ～30KΩ(in 50ppm ethanol)

Sensitivity

S

R0(in air)/Rs( in 50ppm ethanol )≥3.0

Standard test

conditions

Temp. Humidity

20℃±2℃；55%±5%RH

Standard test circuit

VH:2.5V±0.1V；VC :5.0V±0.1V
