Low Cost Remote Current Indicator
-
Price
Price on request ≥1piece
-
Model Number
CR2550 Series -
Data Sheet
-
Package
Original packaging -
Specs
CR2550 Series -
Quantity
- +Send Inquiry
Find Similar Products
-
AC Current Transformer to DC Current (4-20 mA - Loop Powered)
Model Number：T201
MOQ：1
-
DC Current Trasducer to DC Current (4..20 mA - Loop Powered)
Model Number：T201DC
MOQ：1
-
Loop Powered Transmitter for Pt100 and Ni100 Probes
Model Number：T120
MOQ：1
-
Isolated Loop Powered Universal Temperature Transmitter
Model Number：T121
MOQ：1
-
Passive Current Transducers 100 ADC (4-20 mA - Current Loop)
Model Number：T201DC-100
MOQ：1
-
AC/DC Contactless TRMS Direct and Alternate Current Transformers
Model Number：T201DCH
MOQ：1
Product Description

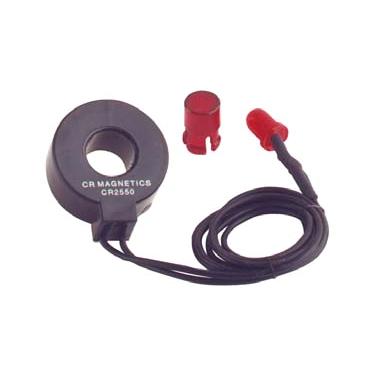

The CR2550 Series Remote Current Indicators are designed as a low cost method for providing a visual indication of electrical current flow. The current-carrying wire is routed through the window opening in the current sensing transformer. Attached to the transformer is a high efficiency, bipolar LED that illuminates when the current is above the turn on point. The indicator is available as standard with an 11 inch long lead and a red, green, blue, white, amber or yellow LED indicator.
CR2550 Series Low Cost Remote Current Indicator Features
• Low cost for high volume OEM installations
• Low fixed trip point
• Fully isolated
• Easy to install
• Self-powered
CR2550 Series Low Cost Remote Current Indicator Specifications
• Turn-on Point: 0.75 Aac RMS
• Maximum Continuous Rating: 20 Aac RMS
• Frequency: 50 to 400 Hz
• Operating Temperature Range: -30 C to +60 C
• Storage Temperature Range: -55 C to +85 C
• LED Indicator Type: Bi-polar, Red/Red or Green/Green
• LED Mounting Hardware: Plastic one-piece, press-in lens supplied
CR2550 Series Low Cost Remote Current Indicator Applications
• Indicate open heater elements
• Observe remote loads
• Indicate phase loss
• Monitor motor operation
CR2550 Series Low Cost Remote Current Indicator PART NUMBERS
CR2550 Series Low Cost Remote Current Indicator Features
• Low cost for high volume OEM installations
• Low fixed trip point
• Fully isolated
• Easy to install
• Self-powered
CR2550 Series Low Cost Remote Current Indicator Specifications
• Turn-on Point: 0.75 Aac RMS
• Maximum Continuous Rating: 20 Aac RMS
• Frequency: 50 to 400 Hz
• Operating Temperature Range: -30 C to +60 C
• Storage Temperature Range: -55 C to +85 C
• LED Indicator Type: Bi-polar, Red/Red or Green/Green
• LED Mounting Hardware: Plastic one-piece, press-in lens supplied
CR2550 Series Low Cost Remote Current Indicator Applications
• Indicate open heater elements
• Observe remote loads
• Indicate phase loss
• Monitor motor operation
CR2550 Series Low Cost Remote Current Indicator PART NUMBERS
|
Part Number |
LED Color |
Turn On Point (1 pass) |
|
CR2550-R |
Red |
0.75 AAC |
|
CR2550-G |
Green |
1.5 AAC |
|
CR2550-B |
Blue |
1.0 AAC |
|
CR2550-W |
White |
0.75 AAC |
|
CR2550-Y |
Yellow |
1.0 AAC |
|
CR2550-A |
Amber |
1.5 AAC |
