Low Cost Hydraulic Pressure Pneumatic Oil Pressure Sensor
-
Price
Price on request ≥1piece
-
Model Number
HK1100C -
Data Sheet
-
Package
Original packaging -
Specs
HK1100C -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description

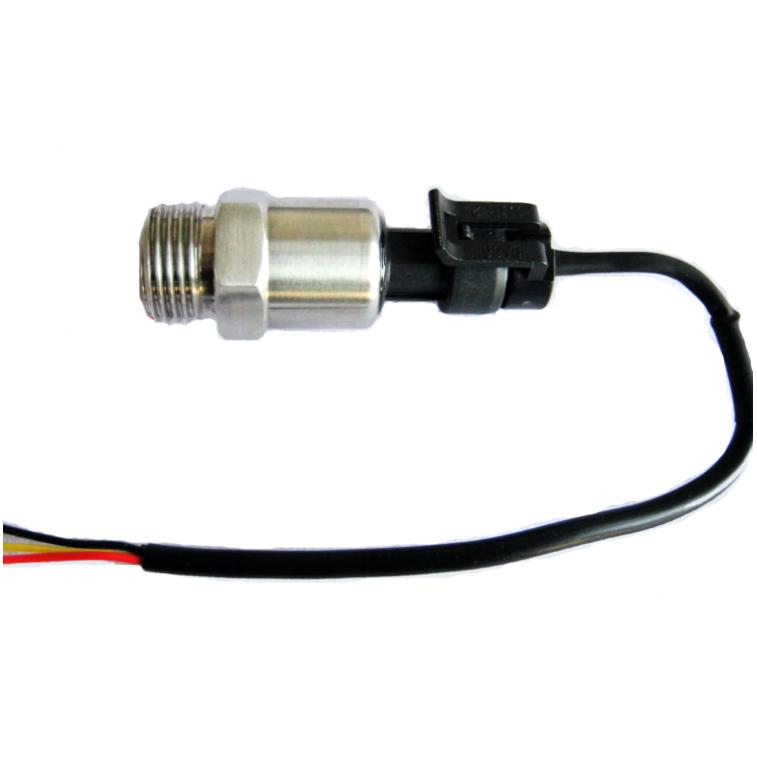

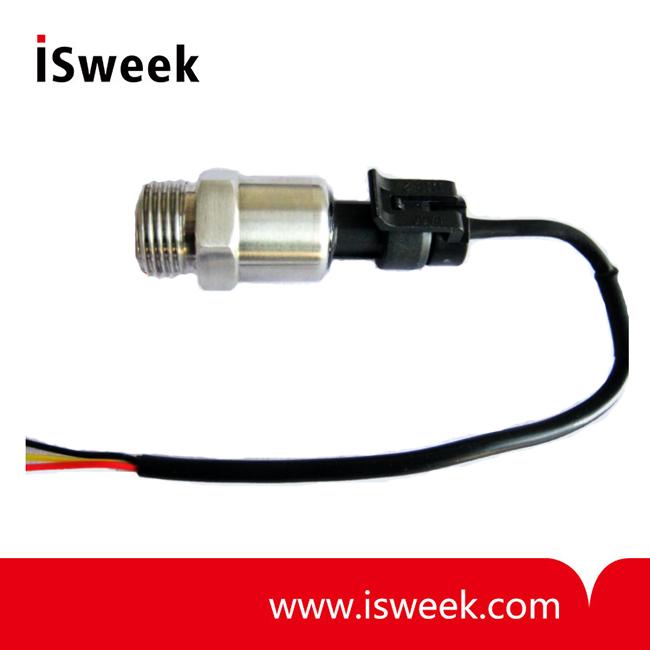

HK1100C Oil Pressure Sensor Description
Low cost pressure sensor, stainless steel package, socket type connection, convenient replacement and installation, 1/2 inch pressure connector, quick connect pressure interface, prominent in the engineering application, the test atmospheric pressure, water pressure and oil pressure, customers have good feedback. Pressure range includes 0-1.2MPa, can meet most applications.
Input voltage can be customized. Pressure range can be customized. Stainless steel material. The output mode has analog voltage output and current output. Voltage output 0.5-4.5V, current output 4-20mA. Mainly used in air compressors, automotive, air conditioning, variable frequency pumps and other fields, interfaces, voltage, pressure range, material, lead length can be customized according to customer requirements
HK1100C Oil Pressure Sensor SPECIFICATION
Low cost pressure sensor, stainless steel package, socket type connection, convenient replacement and installation, 1/2 inch pressure connector, quick connect pressure interface, prominent in the engineering application, the test atmospheric pressure, water pressure and oil pressure, customers have good feedback. Pressure range includes 0-1.2MPa, can meet most applications.
Input voltage can be customized. Pressure range can be customized. Stainless steel material. The output mode has analog voltage output and current output. Voltage output 0.5-4.5V, current output 4-20mA. Mainly used in air compressors, automotive, air conditioning, variable frequency pumps and other fields, interfaces, voltage, pressure range, material, lead length can be customized according to customer requirements
HK1100C Oil Pressure Sensor SPECIFICATION
|
Supply voltage: |
5.0 |
VDC |
|
Output: |
0.5~4.5 |
VDC |
|
Working current: |
≤10 |
mA |
|
Pressure range: |
0~1.2 |
MPa |
|
Proof Pressure: |
2.4 |
MPa |
|
Burst Pressure: |
3.0 |
MPa |
|
Operating Temp.: |
0~85 |
℃ |
|
Storage Temp.: |
0~100 |
℃ |
|
Measure error: |
±1.5 |
%FSO |
|
Full temp. range error: |
±3.5 |
%FSO |
|
Response: |
≤2.0 |
ms |
|
cycle life: |
500,000 |
pcs |
