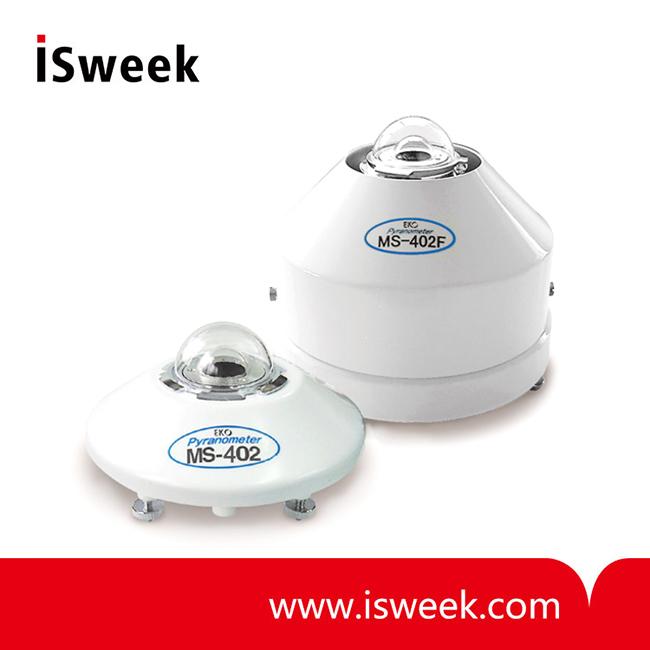

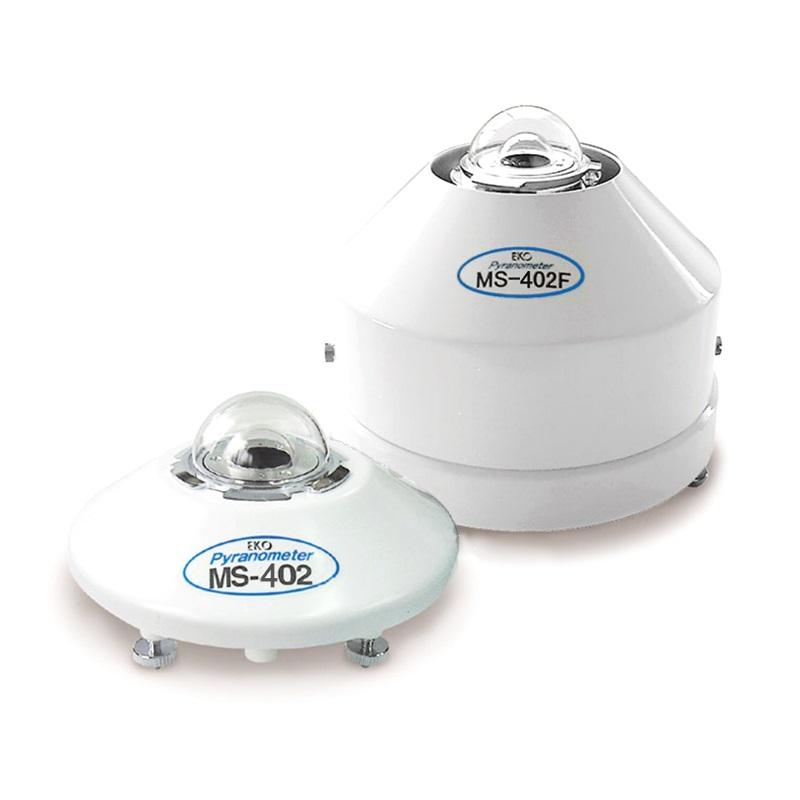

ISO First Class Pyranometer
-
Price
Price on request ≥1piece
-
Model Number
MS-402/MS-402F -
Data Sheet
-
Package
Original packaging -
Specs
MS-402/MS-402F -
Quantity
- +Send Inquiry
Find Similar Products
-
Advanced Performance Photoelectric Sensor
Model Number：H60 Series
MOQ：1
-
Compact Photoelectric Sensor
Model Number：RP18 Series
MOQ：1
-
Cylindrical Photoelectric Sensor
Model Number：M12 Series
MOQ：1
-
Cylindrical Photoelectric Sensor
Model Number：M18 Series
MOQ：1
-
Universal Mount Photoelectric Sensor
Model Number：MP Series
MOQ：1
-
Miniature Photoelectric Sensor
Model Number：RP32 Series
MOQ：1
Product Description
MS-402 First Class Pyranometer Description
The MS-402 Pyranometer is a unique ISO First class pyranometer and best in its category. As the only first class sensor available on the market it has a built in electronic passive temperature compensating to linearize the detector temperature coefficient and make it accurate under all temperature conditions.
The design of the MS-402 First Class Pyranometer is very similar to the Secondary standard MS-802. Its robust brass mechanical construction makes it a durable sensor suitable to be used in harsh environments for routine global irradiance measurements. The MS-402 can be applied as multi purpose high quality monitoring sensor in the PV and Meteorological market. MS-402F is a MS-402 with 110VAC/12 VDC ventilation system to prevent any possible influence of frost, snow and dust.
MS-402 First Class Pyranometer Features
• Most accurate first Class Pyranometer
• Reponse time (95% < 8s)
• Temperature compensated <1% (for 50°C band)
• Near Secondary standard specifications
MS-402 First Class Pyranometer Specifications
The MS-402 Pyranometer is a unique ISO First class pyranometer and best in its category. As the only first class sensor available on the market it has a built in electronic passive temperature compensating to linearize the detector temperature coefficient and make it accurate under all temperature conditions.
The design of the MS-402 First Class Pyranometer is very similar to the Secondary standard MS-802. Its robust brass mechanical construction makes it a durable sensor suitable to be used in harsh environments for routine global irradiance measurements. The MS-402 can be applied as multi purpose high quality monitoring sensor in the PV and Meteorological market. MS-402F is a MS-402 with 110VAC/12 VDC ventilation system to prevent any possible influence of frost, snow and dust.
MS-402 First Class Pyranometer Features
• Most accurate first Class Pyranometer
• Reponse time (95% < 8s)
• Temperature compensated <1% (for 50°C band)
• Near Secondary standard specifications
MS-402 First Class Pyranometer Specifications
|
Specifications (typical) |
MS-402 / MS-402F |
|
ISO 9060 classification |
First Class |
|
Response time 95% (sec) |
8 |
|
Zero offset - Thermal radiation (200W/m²) |
< 6 W/m² |
|
Zero offset - Temperature change (5K/hr) |
< 2 W/m² |
|
Non-stability (change/year) |
< 0.5 % |
|
Non-linearity (at 1000W/m²) |
< 0.2 % |
|
Directional response (at 1000W/m²) |
< 20 W/m² |
|
Spectral selectivity (0.35-1.5µm) |
< 1 % |
|
Temp. response (for 50°C band) |
< 1 % |
|
Tilt response (at 1000W/m²) |
< 0.2 % |
|
Sensitivity (µV/W•m-2) |
Approx. 7 |
|
Impedance (Ω) |
Approx. 500 |
|
Operating temperature range (°C) |
- 40 to +80 |
|
Cable length |
10m |
|
Wavelength range |
285 to 3000 nm |
