Integrated Optical Chlorophyll A Sensor
-
Price
Price on request ≥1piece
-
Model Number
CHLOROPHYLL-200 -
Data Sheet
-
Package
Original packaging -
Specs
CHLOROPHYLL-200 -
Quantity
- +Send Inquiry
Find Similar Products
-
Laboratory Dissolved Oxygen Sensor
Model Number：DO1200
MOQ：1
-
Submersible Galvanic Dissolved Oxygen Sensor
Model Number：DO6400/DO7400 Series
MOQ：1
-
UVT-LED Sensor UV Transmittance Sensor
Model Number：UVT-LED
MOQ：1
-
4-20mA Dissolved Oxygen Transmitters
Model Number：DOMA-10/DOMA-20
MOQ：1
-
Dissolved Oxygen Sensor for Oxygen Measurement
Model Number：SE 706
MOQ：1
-
Memosens Oxygen Sensor
Model Number：SE 715
MOQ：1
Product Description

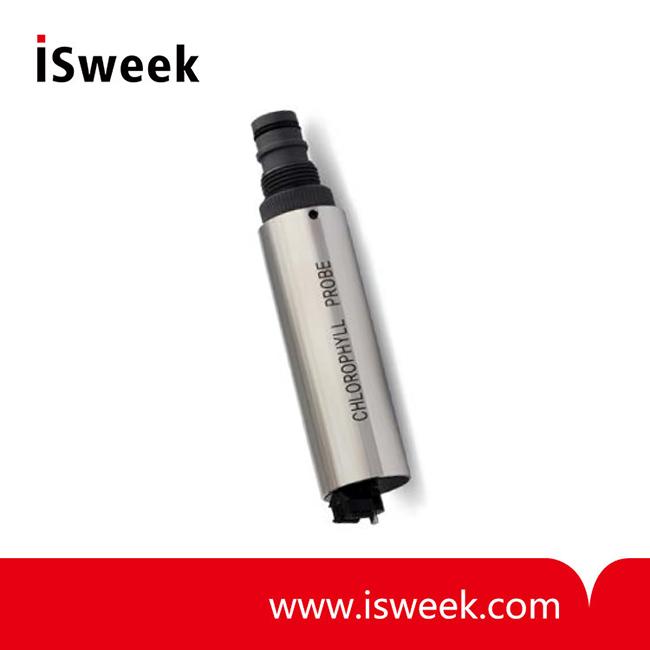

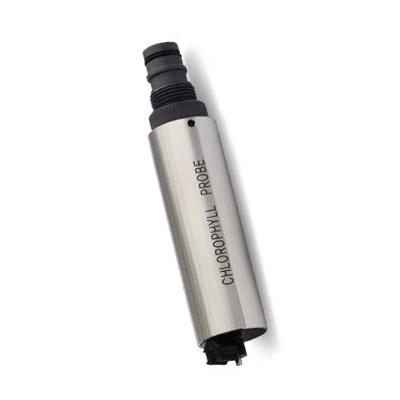

CHLOROPHYLL-200 integrated chlorophyll A sensor Description
This product is an integrated optical chlorophyll A transmitter, using ultraviolet absorption measurement principle, protection class IP68, can be installed directly into the formula, suitable for all occasions need to measure chlorophyll A, such as marine environmental monitoring and other industries.
CHLOROPHYLL-200 integrated chlorophyll A sensor Technical Specifications
|
Model |
CHLOROPHYLL-200 |
|
Measuring range |
0 ~ 500ug/L |
|
Resolution |
0.1ug/L |
|
Accuracy |
±5%F.S. |
|
Temperature |
0 ~ 40℃ |
|
Pressure |
<0.1MPa |
|
Power supply |
7 ~ 16VDC ±10% |
|
Output signal |
Rs485(Modbus/RTU) |
|
Wetted Material |
SS316L |
|
Installation |
Input type |
