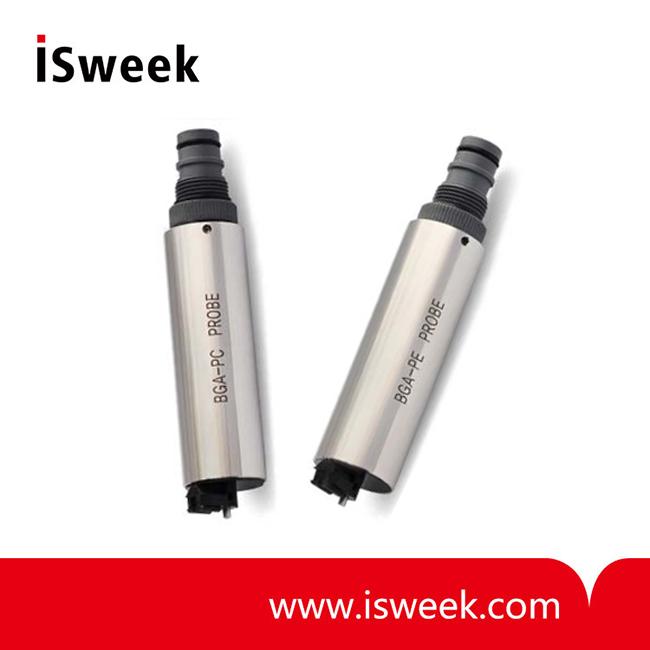

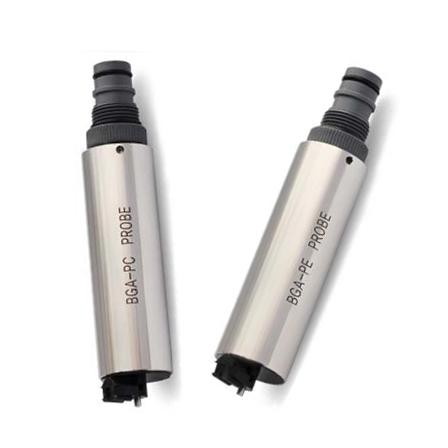

Integrated Blue-green Algae Sensor
-
Price
Price on request ≥1piece
-
Model Number
BGA-200 -
Data Sheet
-
Package
Original packaging -
Specs
BGA-200 -
Quantity
- +Send Inquiry
Find Similar Products
-
Laboratory Dissolved Oxygen Sensor
Model Number：DO1200
MOQ：1
-
Submersible Galvanic Dissolved Oxygen Sensor
Model Number：DO6400/DO7400 Series
MOQ：1
-
UVT-LED Sensor UV Transmittance Sensor
Model Number：UVT-LED
MOQ：1
-
4-20mA Dissolved Oxygen Transmitters
Model Number：DOMA-10/DOMA-20
MOQ：1
-
Dissolved Oxygen Sensor for Oxygen Measurement
Model Number：SE 706
MOQ：1
-
Memosens Oxygen Sensor
Model Number：SE 715
MOQ：1
Product Description
BGA-200 Integrated Blue-green Algae Sensor Description
This product is one of the optical transmitter cyanobacteria and red algae, using ultraviolet light absorption principle, protection class IP68, can be installed directly into the formula, suitable for all occasions need to measure blue-green algae, such as marine environmental monitoring and other industries.
BGA-200 Integrated Blue-green Algae Sensor Technical Parameters
| Measurement Range |
Blue algae: 0~100ug/l (BGA-PC) Red algae: 0~80ug/l(BGA-PE) |
||
| Resolution | 0.01ug/L | ||
| Accuracy | ±1%F.S. | ||
| Working temperature | 0~40℃. | ||
| Working Pressure | <0.1 MPa. | ||
| Power Supply | 7~16VDC ±10% | ||
| Signal Output | Rs485(Modbus/RTU) | ||
| Wetted Material | SS316L | ||
| Installation | Sinking | ||
| Maintenance | Electrode is cleaned once a month, once every three months calibration. | ||
| Display | No display | ||
| Temperature Compensation | Automatic temperature compensation NTC10K | ||
| Calibration | Two-point calibration | ||
| Enclosure Rating | Standard cable length 10 m | ||
| Measuring Principle | Fluorescence |
