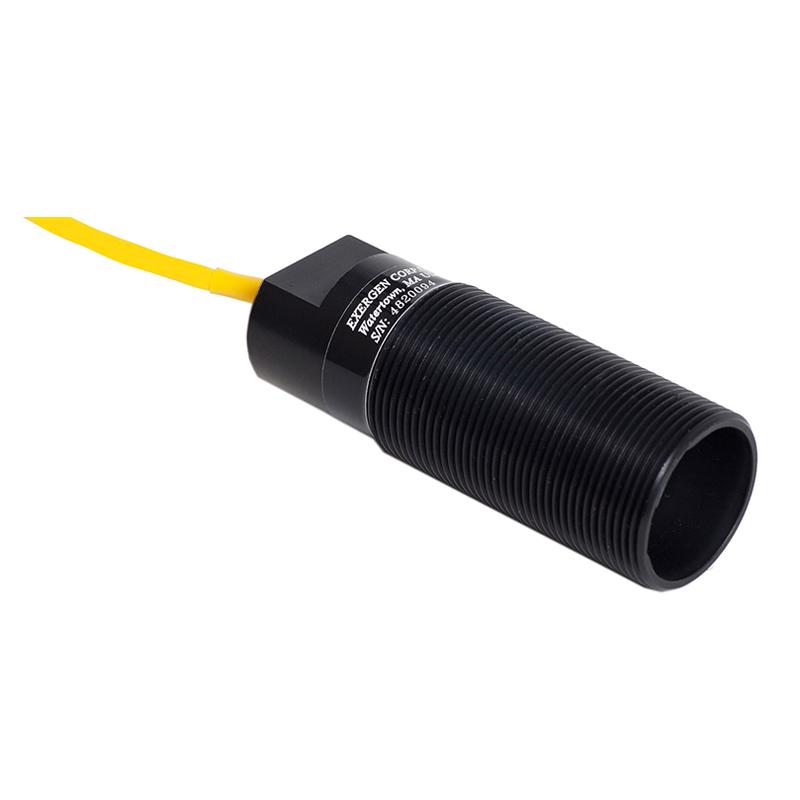

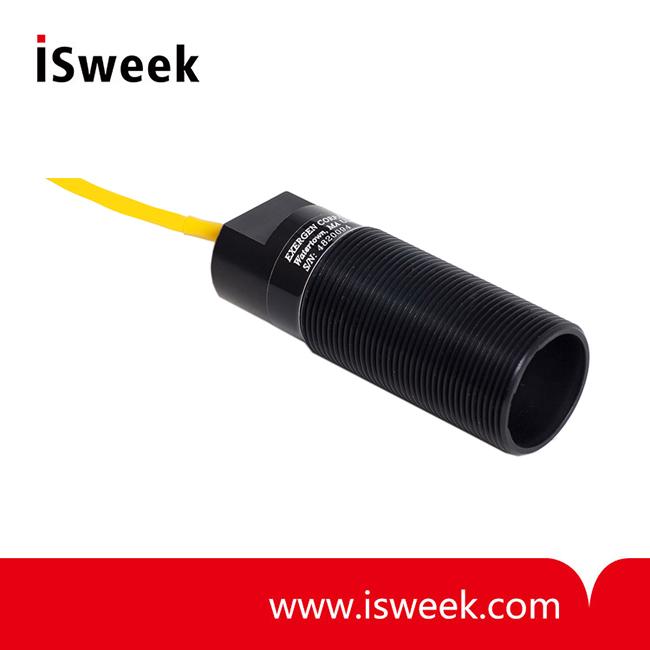

Infrared Temperature Sensors
-
Price
Price on request ≥1piece
-
Model Number
IRt/c.07 -
Data Sheet
-
Package
Original packaging -
Specs
IRt/c.07 -
Quantity
- +Send Inquiry
Find Similar Products
-
Thermopile Infrared Temperature Sensor Module
Model Number：TSEV01CL55
MOQ：1
-
Infrared Thermopile Temperature Sensor
Model Number：TS318-1B0814
MOQ：1
-
Assembled Armored Platinum Resistor
Model Number：WZPKK Series
MOQ：1
-
Armored Thermocouple
Model Number：WR Series
MOQ：1
-
“ZERO DRIFT” High Accuracy Integrated Temperature Transmitter
Model Number：WBZPKK-&WXBZPKK- Series
MOQ：1
-
“ZERO DRIFT” High Accuracy Thermocouple Integrated Temperature Transmitter
Model Number：WBR&WXBR Series
MOQ：1
Product Description
IRt/c.07 Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size
IRt/c.07 Infrared Temperature Sensors Technical Data
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size
IRt/c.07 Infrared Temperature Sensors Technical Data
|
Sensing Range |
-50 to 550°F (-45 to 290°C) |
|
Ambient Temperature Range |
-4 to 158°F (-20 to 70°C) |
|
Optimum Range Selections |
Eight models per t/c type (see Temperature Selection Chart) |
|
Field of View |
approximately 7:1 (8°) |
|
Minimum Spot Size |
.75" (19mm) |
|
Spectral Response |
6.5 to 14µm |
|
Output Impedance |
3.5 to 14 Kohms approx |
|
Response Time |
100 Milliseconds |
|
Dimensions |
3.25" x 1.18" Dia. (82.5 x 29.97mm), M30 x 1.5 thread |
|
Housing |
ABS Black Plastic, hermetically, exceeds NEMA 4X; IP67 |
|
Cable |
3 feet of unshielded, duplex insulted, type K, 24 AWG, PFA jacket rated to 392°F (200°C) (Shielded cale avialable upon request) |
|
Weight |
2.3oz. (65 grams) with cable |
