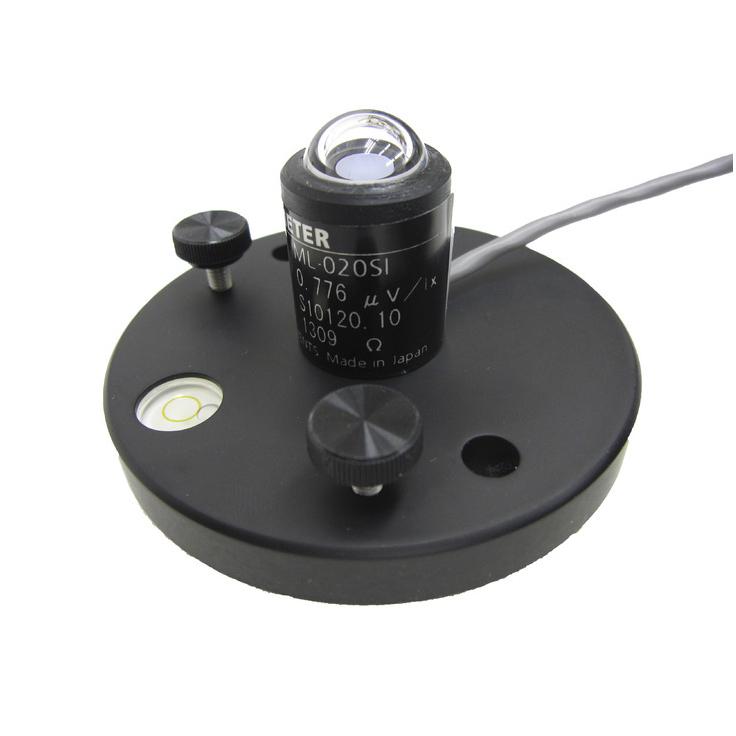

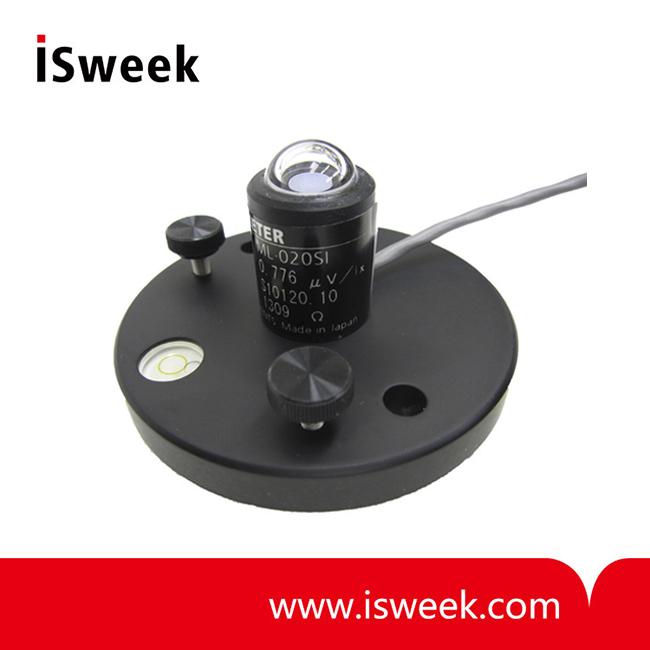

Illuminance Sensors LUX Sensor
-
Price
Price on request ≥1piece
-
Model Number
ML-020S-O/ML-020S-I -
Data Sheet
-
Package
Original packaging -
Specs
ML-020S-O/ML-020S-I -
Quantity
- +Send Inquiry
Find Similar Products
-
Advanced Performance Photoelectric Sensor
Model Number：H60 Series
MOQ：1
-
Compact Photoelectric Sensor
Model Number：RP18 Series
MOQ：1
-
Cylindrical Photoelectric Sensor
Model Number：M12 Series
MOQ：1
-
Cylindrical Photoelectric Sensor
Model Number：M18 Series
MOQ：1
-
Universal Mount Photoelectric Sensor
Model Number：MP Series
MOQ：1
-
Miniature Photoelectric Sensor
Model Number：RP32 Series
MOQ：1
Product Description
ML-020S LUX Sensor Description
The ML-020S-O and ML-020S-I illuminance sensors are both all-weather sensors having customized detector sensitivities for either indoor low light level or outdoors high light level applications. The built-in interference filter in conjunction with the detectors spectral response reproduces the CIE photopic curve and gives a calibrated output in lux (lx). Both sensors can be found in many professional applications to control or monitor industrial processes.
The low output Voltage of the sensor can be easily converted to a 4-20mA current or higher Voltage using the MS-4..20mA converter. The mV/mA converter can be pre-programmed and optimized within the operating range compatible with common measurement equipment.
ML-020S LUX Sensor Features
• Fast Response Time (10ms)
• CIE Photopic Response
• Glass Dome Plus Diffusor Optics
• Low Temperature Dependency
ML-020S LUX Sensor Specifications
The ML-020S-O and ML-020S-I illuminance sensors are both all-weather sensors having customized detector sensitivities for either indoor low light level or outdoors high light level applications. The built-in interference filter in conjunction with the detectors spectral response reproduces the CIE photopic curve and gives a calibrated output in lux (lx). Both sensors can be found in many professional applications to control or monitor industrial processes.
The low output Voltage of the sensor can be easily converted to a 4-20mA current or higher Voltage using the MS-4..20mA converter. The mV/mA converter can be pre-programmed and optimized within the operating range compatible with common measurement equipment.
ML-020S LUX Sensor Features
• Fast Response Time (10ms)
• CIE Photopic Response
• Glass Dome Plus Diffusor Optics
• Low Temperature Dependency
ML-020S LUX Sensor Specifications
|
Specifications (Typical) |
ML-020S-O |
ML-020S-I |
|
Measurement Range |
0~150,000 Lx |
0~30,000 Lx |
|
Output (Approx.) |
0~30,000μV (0~30mV) |
|
|
Impedance |
280Ω |
1.3kΩ |
|
Operating temperature range (°C) |
-10~+50°C |
|
|
Temp. response (-10~+50°C) |
0.4% |
|
|
Size |
Sensor Only: φ22 x 33mm
With Mounting Plate: φ80 x 51mm
|
|
|
Weight Sensor Only |
65g |
|
|
WIth Mounting Plate |
475g |
|
|
Cable length |
5 m |
|
|
Mounting Plate |
Optional |
|
