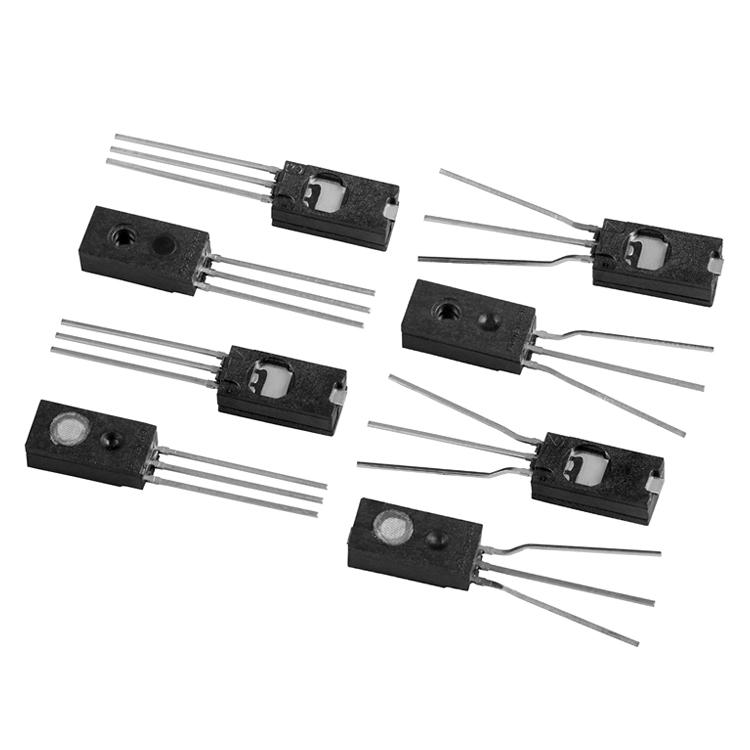

Honeywell HIH-4010/4020/4021 Series Humidity Sensors
-
Price
Price on request ≥1piece
-
Model Number
HIH-4010,HIH-4020,HIH4021 -
Data Sheet
-
Package
Original packaging -
Specs
HIH-4010,HIH-4020,HIH4021 -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description
DESCRIPTION:
The HIH-40104020/4021 Series Humidity Sensors aredesigned specifically for high volume OEM (Original Equipment Manufacturer) users.
Direct input to a controller or other device is made possible bythis sensor’s near linear voltage output. With a typical current draw of only 200 µA, the HIH-4010/4020/4021 Series is oftenideally suited for low drain, battery operated systems.
Tight sensor interchangeability reduces or eliminates OEMproduction calibration costs. Individual sensor calibration datais available.
The HIH-4010/4020/4021 Series delivers instrumentationqualityRH (Relative Humidity) sensing performance in acompetitively priced, solderable SIP (Single In-line Package).
The HIH-4010 is an uncovered integrated humidity sensor, the HIH-4020 is a covered integrated circuit humidity sensor, and the HIH-4021 is a covered, condensation-resistant, integratedcircuit humidity sensor. All three products are available in two lead space configurations.
The RH sensor is a laser trimmed, thermoset polymercapacitive sensing element with on-chip integrated signal conditioning.
The sensing element's multilayer construction provides excellent resistance to most application hazards such as wetting, dust, dirt, oils and common environmental chemicals. Both products are available in two lead spacing configurations, as well as with or without calibration and data printouts.
FEATURES:
• Molded thermoset plastic housing
• Near linear voltage output vs %RH
• Laser trimmed interchangeability
• Low power design
• Enhanced accuracy
• Fast response time
• Stable, low drift performance
• Chemically resistant
POTENTIAL APPLICATIONS:
• Refrigeration equipment
• HVAC (Heating, Ventilation and Air Conditioning) equipment
• Medical equipment
• Drying
• Metrology
• Battery-powered systems
• OEM assemblies
The HIH-40104020/4021 Series Humidity Sensors aredesigned specifically for high volume OEM (Original Equipment Manufacturer) users.
Direct input to a controller or other device is made possible bythis sensor’s near linear voltage output. With a typical current draw of only 200 µA, the HIH-4010/4020/4021 Series is oftenideally suited for low drain, battery operated systems.
Tight sensor interchangeability reduces or eliminates OEMproduction calibration costs. Individual sensor calibration datais available.
The HIH-4010/4020/4021 Series delivers instrumentationqualityRH (Relative Humidity) sensing performance in acompetitively priced, solderable SIP (Single In-line Package).
The HIH-4010 is an uncovered integrated humidity sensor, the HIH-4020 is a covered integrated circuit humidity sensor, and the HIH-4021 is a covered, condensation-resistant, integratedcircuit humidity sensor. All three products are available in two lead space configurations.
The RH sensor is a laser trimmed, thermoset polymercapacitive sensing element with on-chip integrated signal conditioning.
The sensing element's multilayer construction provides excellent resistance to most application hazards such as wetting, dust, dirt, oils and common environmental chemicals. Both products are available in two lead spacing configurations, as well as with or without calibration and data printouts.
FEATURES:
• Molded thermoset plastic housing
• Near linear voltage output vs %RH
• Laser trimmed interchangeability
• Low power design
• Enhanced accuracy
• Fast response time
• Stable, low drift performance
• Chemically resistant
POTENTIAL APPLICATIONS:
• Refrigeration equipment
• HVAC (Heating, Ventilation and Air Conditioning) equipment
• Medical equipment
• Drying
• Metrology
• Battery-powered systems
• OEM assemblies
PERFORMANCE SPECIFICATIONS (At 5 Vdc supply and 25 ºC [77 ºF] unless otherwise noted.)
