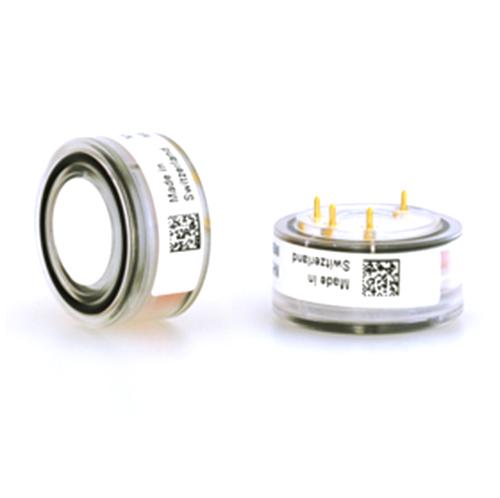

• Highly Sensitive Phosphine Sensor (PH3 Sensor)
Mouse over image to zoom

Highly Sensitive Phosphine Sensor (PH3 Sensor)

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    PH3/C-5

  • Data Sheet

  • Package

    Original packaging

  • Specs

    PH3/C-5

  • Quantity

    - +

  • Send Inquiry

Product Description

Compact Gas Sensors
Highest reliability and maximum performance in a compact housing. Suitable in most of all applications.

Features
Air vent on the back
O-ring on the front

Dimensions
Conforms to 7-Series
Diameter: 32 mm
Height: 17 mm
Pin diameter: 1.0 mm

PH3/C-5 Phosphine Sensor (PH3 Sensor) Applications
Safety and Environmental Control

PH3/C-5 Phosphine Sensor (PH3 Sensor) Performance Characteristics
Performance data conditions: 20°C, 50% RH and 1013 mbar

Nominal Range
 0 - 5 ppm
Maximum Overload
 25 ppm
Expected Operation Life
 2 years in air
Output Signal
 4000 ± 1200 nA/ppm
Resolution
 0.03 ppm
Temperature Range
 -20°C to 45°C
Pressure Range
 Atmospheric ± 10%
Pressure Coefficient
 No data
T90 Response Time
 < 25 sec
Relative Humidity Range
 15 % to 90 % R.H. non-condensing
Typical Baseline Range (pure air, 20°C)
 < 0.03 ppm
Maximum Zero Shift
 N.D.
Long Term Output Drift
 < 2% signal loss/month
Recommended Load Resistor
 10 Ohm
Bias Voltage
 Not required
Repeatability
 < 2 % of signal
Output Linearity
 Linear

PH3/C-5 Phosphine Sensor (PH3 Sensor) Physical Characteristics
Weight
 ~ 13g
Position Sensitivity
 None
Storage Life
 Six months in container
Recommended Storage Temperature
 5°C - 20°C
Warranty Period
 12 months from date of dispatch

PH3/C-5 Phosphine Sensor (PH3 Sensor) Cross Sensitivity Data
Interfering Gas
 Concentration
 Reading
CO
 100 ppm
 0 ppm
H2S
 34 ppm
 ~ 8 ppm
NO
 100 ppm
 0 ppm
NO2
 100 ppm
 ~ -30 ppm
H2
 100 ppm
 0 ppm
Ethylene
 100 ppm
 <2 ppm
SO2
 100 ppm
 25 ppm
SiH4
 10 ppm
 5 ppm
