Product Description
Pressure High-Speed Measurement Applications
This "signal conditioning" module is both the light source and receiver of the fiber optic measurement system. The FPI-HR or FPI-HS convert the optical signal to a pressure reading and requires no external amplification box. The researcher may plug the catheter’s optical connector directly into the module or may use an (optional) extension cable with accompanying connection box.

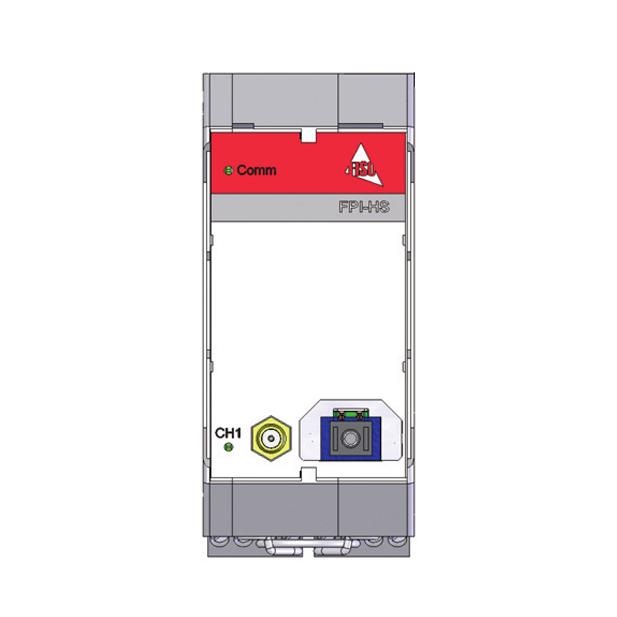

FPI-HS
Single channel (15,000Hz)
FPI-HS High-speed Signal Conditioner Application Products
• FOP pressure sensor
• FPI-HS module sensor
• EVOLUTION chassis
FPI-HS High-speed Signal Conditioner Key Features
• High accuracy
• Up to 15 kHz sampling rate
• Temperature-compensated modules
• Atmospheric pressure compensation (option)
FPI-HS High-speed Signal Conditioner Specifications
1. Includes reproducibility (sensor/module exchange), repeatability and hysteresis, non-linearity, scale error, offset error, conditioner temperature compensation error.
Pressure: Accuracy at room temperature.
2. Lamp is replaceable on fi eld.
3. SCAI is an SCA connector with smart chip communicating calibration data to signal conditioner module.
This "signal conditioning" module is both the light source and receiver of the fiber optic measurement system. The FPI-HR or FPI-HS convert the optical signal to a pressure reading and requires no external amplification box. The researcher may plug the catheter’s optical connector directly into the module or may use an (optional) extension cable with accompanying connection box.
FPI-HS
Single channel (15,000Hz)
FPI-HS High-speed Signal Conditioner Application Products
• FOP pressure sensor
• FPI-HS module sensor
• EVOLUTION chassis
FPI-HS High-speed Signal Conditioner Key Features
• High accuracy
• Up to 15 kHz sampling rate
• Temperature-compensated modules
• Atmospheric pressure compensation (option)
FPI-HS High-speed Signal Conditioner Specifications
|
|
Pressure – FOP-M |
|
Measuring range |
R1: 0 to 5 psi / R2: 0 to 50 psi R3: 0 to 150 psi / R4: 0 to 1000 psi |
|
Operating temperature |
-20°C to 150°C |
|
Accuracy1 |
±0.5% of full scale |
|
Resolution |
0.05% of full scale |
|
Sampling rate |
Up to 15 kHz |
|
Number of channel |
1 |
|
Analog output (Optional) |
0 to 5V or 4–20 mA / 16 bits resolution |
|
Operating temperature |
10°C to 50°C |
|
Storage temperature |
-20°C to 70°C |
|
Power consumption |
<12 Watts |
|
Lamp lifetime2 |
3000 hours |
|
Connector |
SCAI3, SCA |
|
Fiber core size |
62.5/125μm |
|
Communication / Evolution chassis |
USB via EVO chassis / TS 35 DIN RAIL |
|
Communication / OEM |
RS-232 / RS-485 |
|
LED sensor signal and communication diagnostic |
Yes |
Pressure: Accuracy at room temperature.
2. Lamp is replaceable on fi eld.
3. SCAI is an SCA connector with smart chip communicating calibration data to signal conditioner module.
