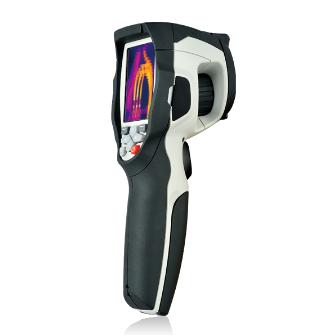

High Performance Thermal Imagers
-
Price
Price on request ≥1piece
-
Model Number
DT-980/982 -
Data Sheet
-
Package
Original packaging -
Specs
DT-980/982 -
Quantity
- +Send Inquiry
Product Description
DT-980/982
High Performance Thermal ImagersDT-980 (80x80), DT-982 (160x120) Thermal Imagers are designed to make your work easier, more productive and effective. 160 × 120 resolution at 50 Hz for real-time capture, temperature range from -20°C to 350°C (-4°F to 662°F), 32X continuous zoom, picture-in-picture, voice comment recording and text annotation on images. Hot/Cold spot marker automatically finds the hottest and coldest spots. It includes memory card, Lithium polymer battery & power supply, and USB cable. Wi-Fi connectivity allows the Infrared Thermal Camera to send images and data to mobile devices.
1. 2.8" LCD Display;
2. Annotate images with Voice;
3. Picture-in-Picture;
4. 32X Continuous Zoom;
5. Megapixels Digital camera;
6. OS and Adriod APP support;
Size (H x W x D): 224mm x 77mm x 96mm
Weight: 500g
Specifications
Specifications
DT-980
DT-982
Imaging and optical data
IR resolution
80×80 pixels
120×160 pixels
Focal Plane Array (FPA) / Spectral range
Uncooled microbolometer / 8–14 µm
Focal length
9mm
9mm
Field of View (FOV)
17°x17°
19°x 25°
Minimum focus distance
0.5m
0.5m
Spatial resolution
3.78mrad
2.78mrad
Thermal sensitivity/NETD
< 0.1°C @ +30°C (+86°F)/ 100mK
< 0.1°C @ 30°C (86°F) / 100 mK
Image frequency
50Hz
Focus
Manual
Zoom
1-32x continuous, digital zoom
Image presentation
Image modes
IR image, visual image, picture in picture
Picture in Picture
IR area on visual image
Color palettes
Iron/rainbow/grey/grey inverted
Measurement
Object temperature range
–20 to 150°C (–4 to 302°F)
–20 to 150°C (–4 to 302°F)
0 to 350°C (32 to 662°F)
0°C to 350°C (32 to 662°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading
Measurement analysis
Spot
Center Spot, Auto hot or cold markers
Set-up
laser
< class2
Language selection
English, Chinese, French, German, Spanish
Storage of videos/images
Inside Memory
100M bytes, About 80pictures or one minute video record
Storage media
8Gbytes Micro SD card
Video storage format
Standard MPEG-4, 1280x960@30fps, on memory card > 60 minutes
Image storage format
Standard JPEG, including measurement data, on memory card > 6000 pictures
Digital camera
Built-in visible light digital camera
5 Megapixels
Built-in digital lens data
59°
Data communication interfaces
Interfaces &Video out
USB-mini, audio, HDMI
USB
Data & Live video transform between camera and PC or smartphone
Power system
Battery / Input voltage
Li-ion battery, 4 hours operating time / DC 5V
Charging system / Power management
In camera (AC adapter) /Automatic shutdown
