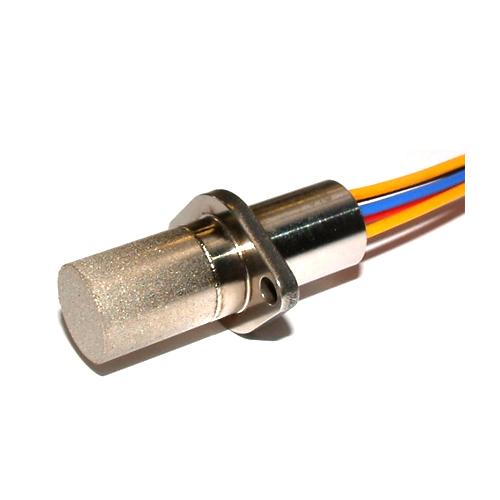

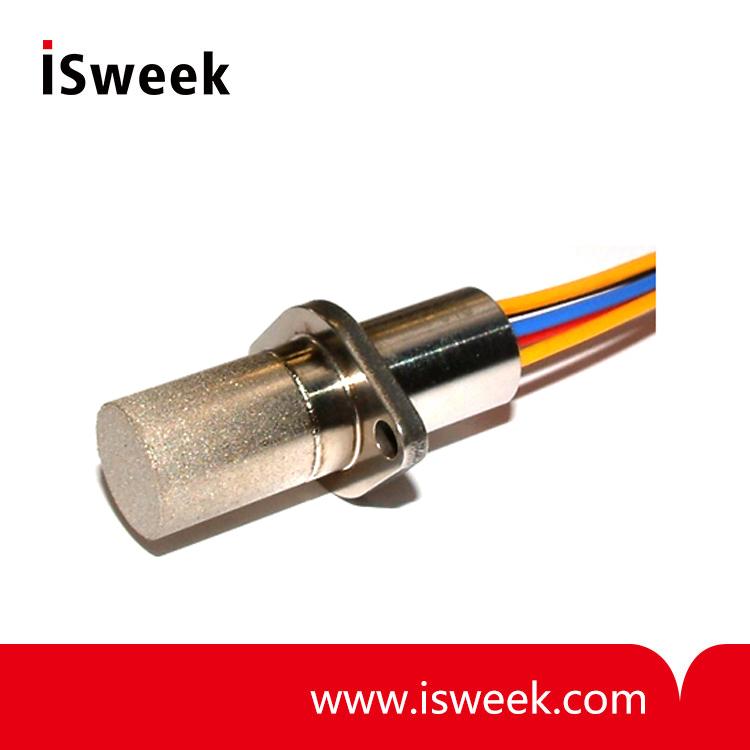

Flange Mounted Zirconia Oxygen Sensor
-
Price
Price on request ≥1piece
-
Model Number
O2S-FR-T5 -
Data Sheet
-
Package
Original packaging -
Specs
O2S-FR-T5 -
Quantity
- +Send Inquiry
Find Similar Products
-
Short Probe Zirconia Oxygen Sensors (Zirconia O2 Sensor)
Model Number：O2S-T2 / O2S-FR-T2
MOQ：1
-
Oxygen Analyser
Model Number：OXY-Flex-x Series
MOQ：1
-
Zirconia Oxygen Analyser
Model Number：OXY-COMM-RS485
MOQ：1
-
Zirconia Oxygen Sensor System
Model Number：O2S-FR-T2-18BM-C-010V
MOQ：1
-
Screwfit Zirconia Oxygen Sensor
Model Number：O2S-FR-T2-18B
MOQ：1
-
Screwfit Zirconia Oxygen Sensor
Model Number：O2S-FR-T2-18A
MOQ：1
Product Description
O2S-FR-T5 Flange Mounted Zirconia Oxygen Sensor FEATURES
• Oxygen pressure range 2 mbar - 3bar
• Zirconium dioxide (ZrO2 ) sensing elements
• Non-consumption technology
• Integral heating element
• No need for temperature stabilisation
• No reference gas required
• High accuracy
• Linear output signal
• Operates with external interface boards
O2S-FR-T5 Flange Mounted Zirconia Oxygen Sensor SPECIFICATIONS
|
Heater Voltage Porous Cap (15mm) Stand by |
4.35V DC ± 0.1V DC (1.85A) 2V DC (0.85A) |
|
Pump resistance @ 700°C |
< 6kΩ |
|
Permissible gas temperature |
-100 to 250°C |
|
Gas flow rate |
0 to 10 m/s |
|
Repetitive permissible acceleration |
5 g |
|
Incidental permissible acceleration |
30 g |
ELECTRICAL CONNECTION
1: Pump (Red)
2: Common (Black)
3: Heater (Yellow)
4: Sense (Blue)
5: Heater (Yellow)
OUTLINE DRAWING
PERFORMANCE CHARACTERISTIC
| Characteristics | Min. | Typ. | Max. | Unit |
| Oxygen pressure range | 2 | 3000 | mbar | |
| Accuracy | 5 | mbar | ||
| Internal operating temperature | 700 (4.35V DC ) | °C | ||
| Response time (10-90% step) | 4 | s | ||
| Warm up time (prior to sensor operation) | 100 | s | ||
| Warm up time (from stand by) | 20 | s | ||
| Output stabilisation time | ~180 | s |
