Product Description

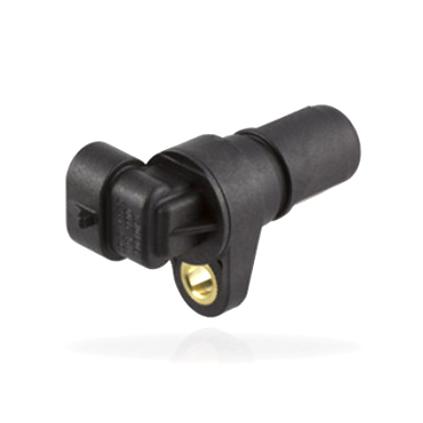

GS101205 Sensors
Flange mount gear tooth speed sensor rated to 140 °C

GS101205 Gear Tooth Speed Sensor Description
The GS101205 series gear tooth speed sensors are Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. The single Hall design is immune to alignment issues allowing unlimited mounting positions. They provide a sinking current output.

GS101205 Gear Tooth Speed Sensor Features
• From near zero speed up to 15 kHz sensing capability
• Plastic flange mount-housing
• Resistant to fuels, solvents, and lubricants associated with engines, transmissions, brakes and chassis systems
• RoHS compliant
• IP67
• Typical air gap of 1.5 mm*

GS101205 Gear Tooth Speed Sensor Typical Applications
• Speedometers
• Anti-lock braking systems
• Exercise equipment
• CNC machine tools

GS101205 Gear Tooth Speed Sensor Environmental Specifications
Vibration
 Sinusoidal, 15 g max from 40 Hz to 2 kHz
Mechanical Shock Resistance
 50 g
Maximum Speed Detection
 15 kHz
Operating Temperature**
 -40 ⁰C to 140 ⁰C (-40 ⁰F to 284 ⁰F)
**up to 150 ⁰C (302 ⁰F) with reduced performance
Storage Temperature
 -40 ⁰C to 150 ⁰C (-40 ⁰F to 302 ⁰F)
Ingress Protection
 IP67

GS101205 Gear Tooth Speed Sensor Electrical Specifications
Operating Supply Voltage
 5 to 24 VDC
Maximum Input Voltage
 30 VDC
Maximum Reverse Voltage
 26.5 VDC
Supply Current
 3 mA typ., 6 mA max
Output Sink Current
 25 mA max
Recommended Pull-Up Resistor
 See chart

GS101205 Gear Tooth Speed Sensor Mechanical Specifications
Housing Material
 Glass Reinforced Thermoplastic
Maximum Installation Torque Limit
 5.65 Nm (50 in lb) on threads
Operating Air Gap / Sensing Distance*
* With recommended target type; see drawing
 1.5 mm (0.06")
Sensor Orientation
 Not sensitive
Possible O-ring size
 AS568A-016 (varies with application)

Products
Part Number
 Connector**
GS101205
 Delphi Metri-Pack 150
**Mates to Delphi connector 12162280
