Product Description

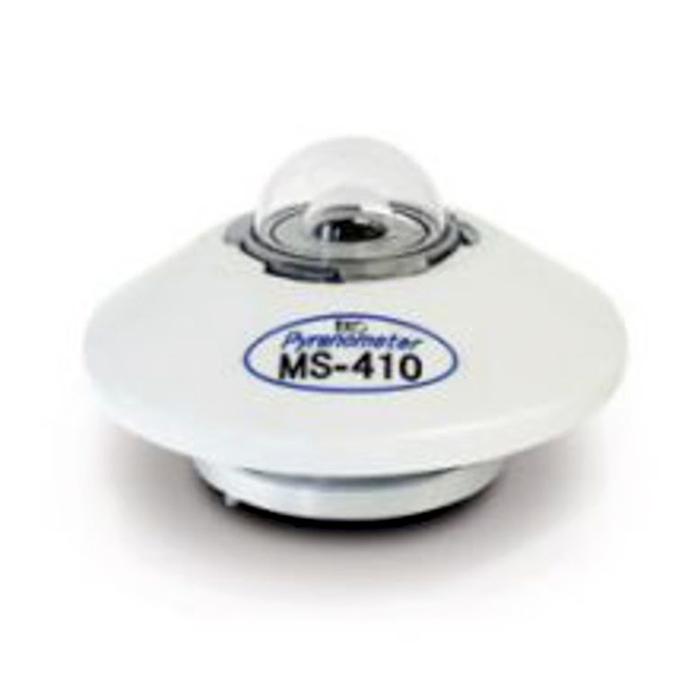

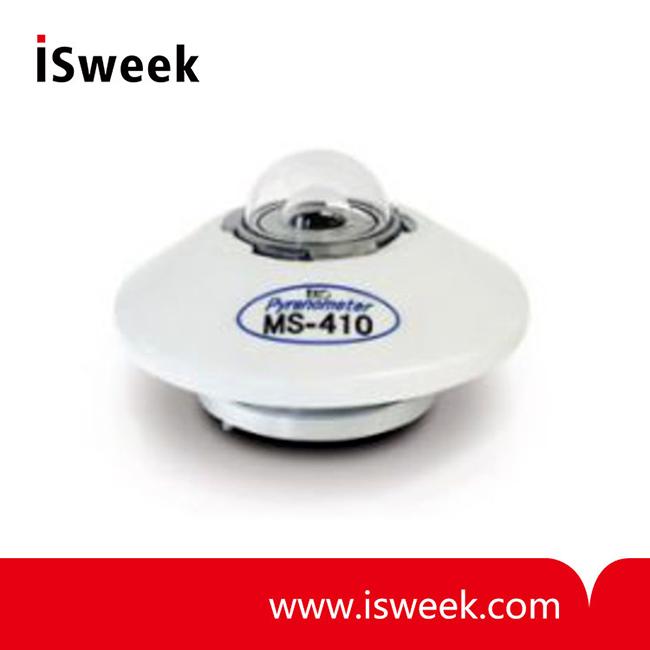

MS-410 First Class Pyranometer Description
The MS-410 pyranometer measures the broad-band global solar irradiance. The MS-410 is perfectly suited for sampling 10-minute averages of the solar radiative flux in horizontal or tilted configurations. It is fully compliant with the ISO9060 "First Class" norm. The flat sensor surface, coated with a special, highly absorbing black paint, is protected by two transparent hemispheric glass domes. The MS-410 has a practical light-weight anodized aluminum housing and a stable low TC detector. These features, together with the two, high quality machined hemispheric glass domes are the key to the excellent performance characteristics of the MS-410.
MS-410 First Class Pyranometer Features
• First Class Pyranometer
• Light weight Aluminium housing
• Double dome gives low zero offset
• Typical network sensor
• Perfect balance between cost-effectiveness and quality.
MS-410 First Class Pyranometer Specifications (Typical)
The MS-410 pyranometer measures the broad-band global solar irradiance. The MS-410 is perfectly suited for sampling 10-minute averages of the solar radiative flux in horizontal or tilted configurations. It is fully compliant with the ISO9060 "First Class" norm. The flat sensor surface, coated with a special, highly absorbing black paint, is protected by two transparent hemispheric glass domes. The MS-410 has a practical light-weight anodized aluminum housing and a stable low TC detector. These features, together with the two, high quality machined hemispheric glass domes are the key to the excellent performance characteristics of the MS-410.
MS-410 First Class Pyranometer Features
• First Class Pyranometer
• Light weight Aluminium housing
• Double dome gives low zero offset
• Typical network sensor
• Perfect balance between cost-effectiveness and quality.
MS-410 First Class Pyranometer Specifications (Typical)
|
Specifications (Typical) |
MS-410 |
|
ISO 9060 classification |
First Class |
|
Response time 95% (sec) |
18 |
|
Zero offset - Thermal radiation (200W/m²) |
< 6 W/m² |
|
Zero offset - Temperature change (5K/hr) |
< 2 W/m² |
|
Non-stability (change/year) |
< 1.5 % |
|
Non-linearity (at 1000W/m²) |
< 1 % |
|
Directional response (at 1000W/m²) |
< 20 W/m² |
|
Spectral selectivity (0.35-1.5µm) |
< 1 % |
|
Temp. response (for 50°C band) |
< 2 % |
|
Tilt response (at 1000W/m²) |
< 2 % |
|
Sensitivity (µV/W・m-2) |
Approx. 7~14 |
|
Impedance (Ω) |
Approx. 20~140 |
|
Operating temperature range (°C) |
- 40 to +80 |
|
Irradiance range (W/m2) |
0 - 4000 W/m2 |
|
Cable length |
10m |
|
Wavelength range |
285 to 3000 nm |
