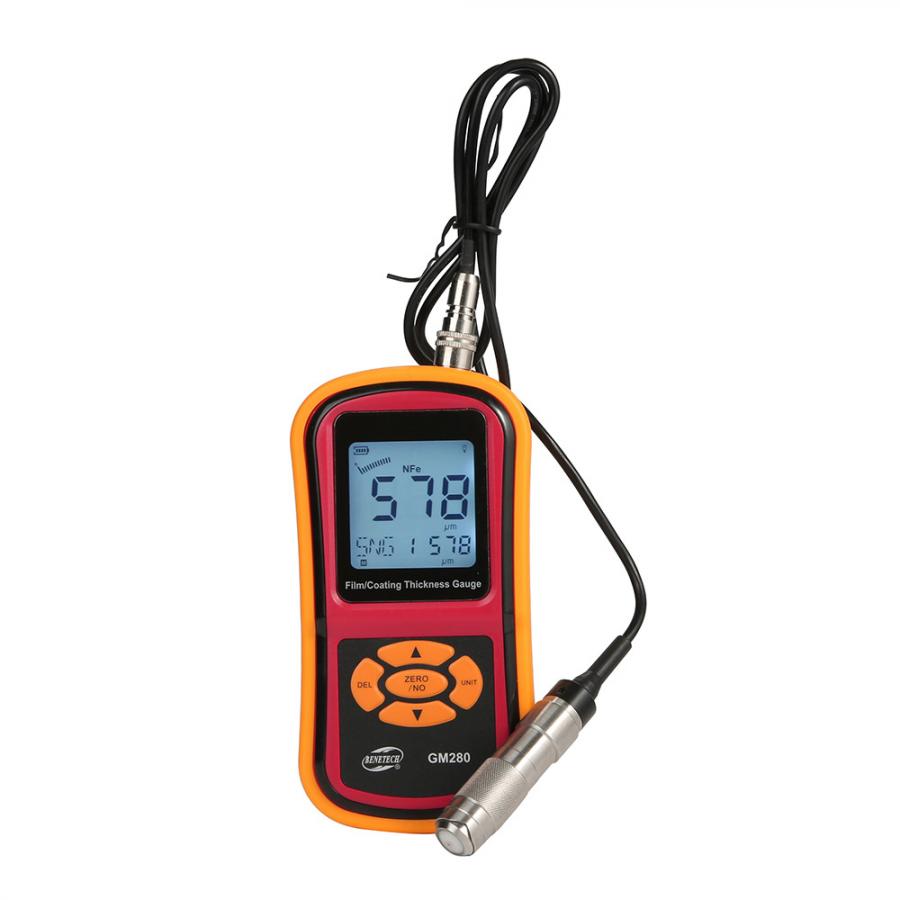

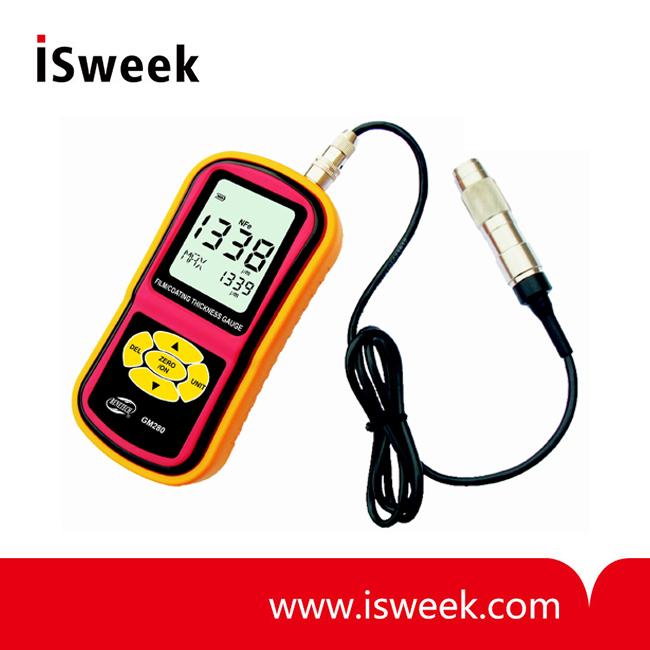

Film/Coating Thickness Gauge
-
Price
Price on request ≥1piece
-
Model Number
GM280 -
Data Sheet
-
Package
Original packaging -
Specs
GM280 -
Quantity
- +Send Inquiry
Product Description
GM280 Film/Coating Thickness Gauge Introduction
This product adopts eddy current measuring principle, can measure the thickness of conductive coatings on the non-magnetic material, has been widely applied in the fields of mechanical manufacture, electric power metallurgy and general aviation etc.
GM280 Film/Coating Thickness Gauge Features
• LCD displays measurement result and conditions directly
• Measures acceleration (m/s2 peak), velocity (mm/s ms), and displacement (mm p-p)
• Selective vibration characteristic
• Uses hi-sense of vibration sensor, measuring accurately
• Equipped with two probes (S and L) to adapt the different measurement requirements
• Provides a magnetic probe to fit the condition uneasy hold on by hand
• Low battery indication
• Auto turn off function
• LCD back light function
• Maximum value hold function
• Temperature unit °C/°F selection
GM280 Film/Coating Thickness Gauge Measurement range
Remark: H= Nominal transformation ratio
GM280 Film/Coating Thickness Gauge Condition of Objective material
• Suitable for measure non magnetic coating on conductor base material.
• The minimum curvature radius. Convex=3mm
• Base sample diameter: 12mm
• Base substrate thickness: 0.5mm
GM280 Film/Coating Thickness Gauge Specifications
This product adopts eddy current measuring principle, can measure the thickness of conductive coatings on the non-magnetic material, has been widely applied in the fields of mechanical manufacture, electric power metallurgy and general aviation etc.
GM280 Film/Coating Thickness Gauge Features
• LCD displays measurement result and conditions directly
• Measures acceleration (m/s2 peak), velocity (mm/s ms), and displacement (mm p-p)
• Selective vibration characteristic
• Uses hi-sense of vibration sensor, measuring accurately
• Equipped with two probes (S and L) to adapt the different measurement requirements
• Provides a magnetic probe to fit the condition uneasy hold on by hand
• Low battery indication
• Auto turn off function
• LCD back light function
• Maximum value hold function
• Temperature unit °C/°F selection
GM280 Film/Coating Thickness Gauge Measurement range
|
Range |
Resolution |
Accuracy |
|
0 to 1500μm |
0.1μm/1μm |
±(3%H+1μm) |
GM280 Film/Coating Thickness Gauge Condition of Objective material
• Suitable for measure non magnetic coating on conductor base material.
• The minimum curvature radius. Convex=3mm
• Base sample diameter: 12mm
• Base substrate thickness: 0.5mm
GM280 Film/Coating Thickness Gauge Specifications
|
Technical parameter |
Technical index |
|
LCD display |
3 1/2 display |
|
Power supply |
3*1.5V AAA alkaline battery |
|
Operation current |
Around 10mA |
|
Battery life |
Continuously 20 hour |
|
Auto off |
80 seconds |
|
LCD backlight function |
15 seconds |
|
Operation temperature |
0 to 40℃ |
|
Operation humidity |
10 to 95%RH |
|
Low battery indication |
3.0V ± 0.2V |
|
Product size |
72 x 35 x 145 mm |
|
Weight |
216.5 g (without battery) |
