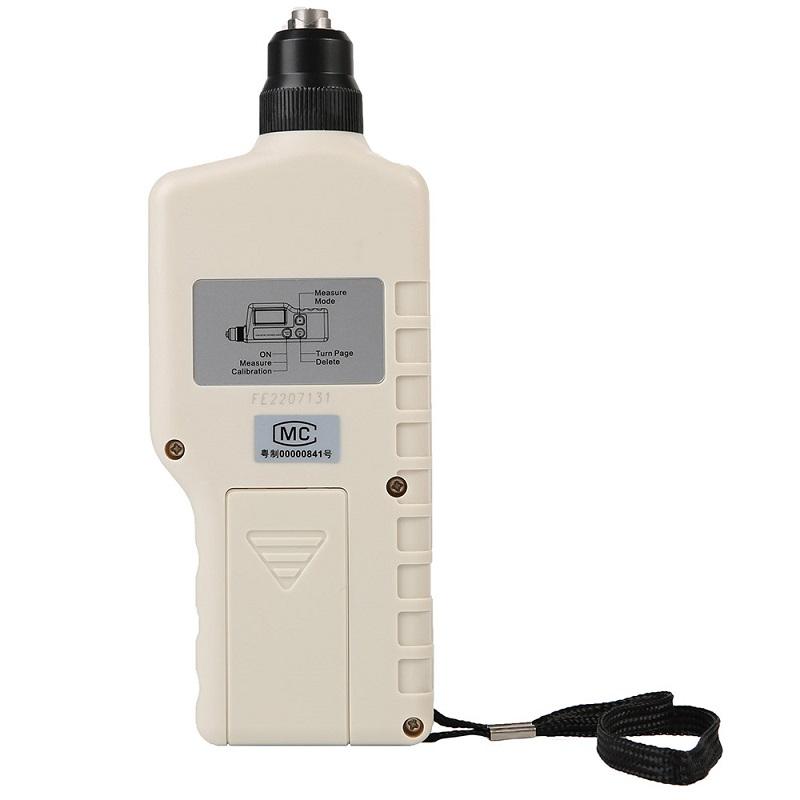

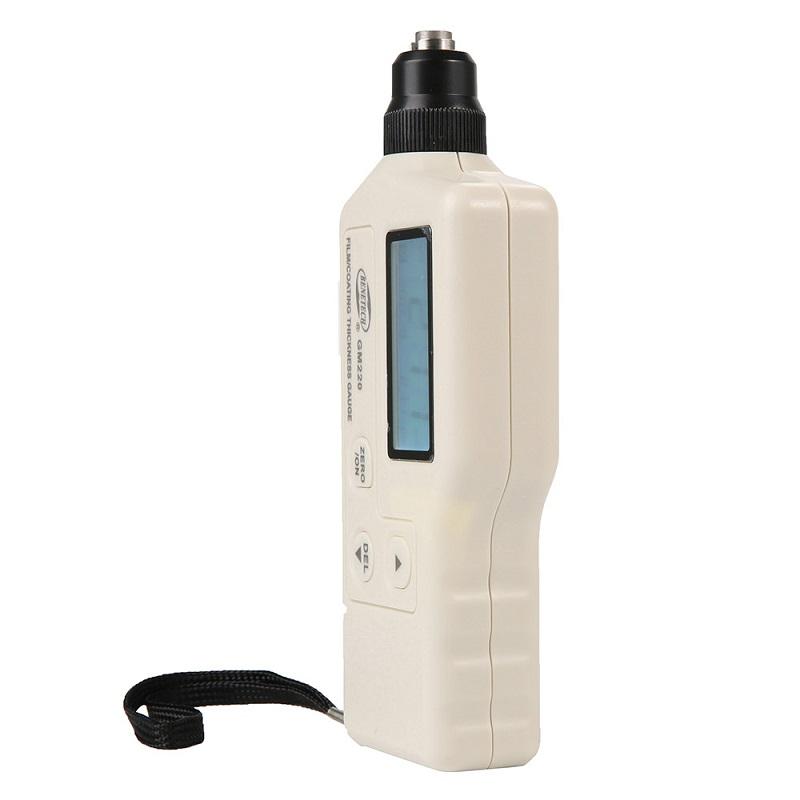

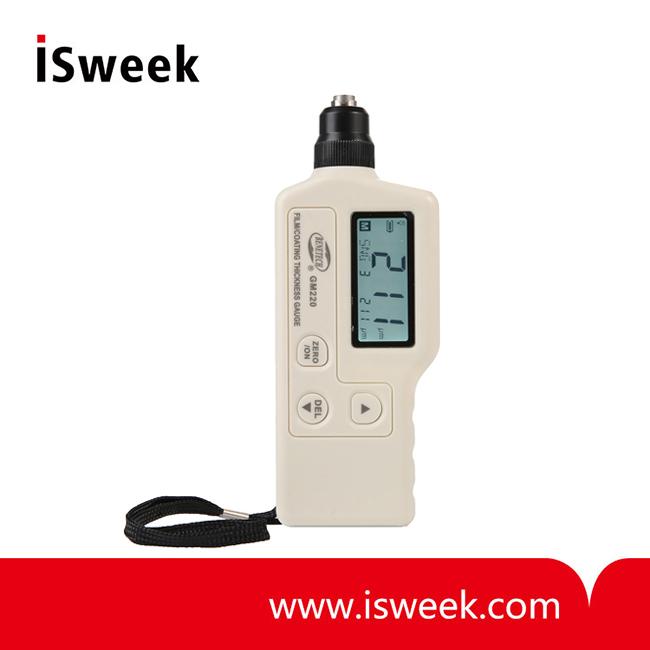

Film/Coating Thickness Gauge
-
Price
Price on request ≥1piece
-
Model Number
GM220 -
Data Sheet
-
Package
Original packaging -
Specs
GM220 -
Quantity
- +Send Inquiry
Product Description
GM220 Film/Coating Thickness Gauge Introduction
This portable product adopts magnetic induction technique for measurement. The compact design perform fast, precise and non-destructive digital coating measurement and plating on steel magnetic conductor. It is widely used on manufacturing, workshop, chemistry or quality control fields.
GM220 Film/Coating Thickness Gauge Features
• LCD display measurement value and status.
• Using Hi- sensibility sensor for precise measurement.
• 0 point, 2 point and basic, three different calibration methods to make it easy to process the system quick calibration.
• Measure mode: Single, continually and difference .
• Data record, recall and delete function.
• Data analysis: Average, Maximum, Minimum, standard deviation, and measure times.
• Beep sounds indication.
• Metric / Imperic unit selection.
• Low Battery indication.
• Auto power off .
• LCD backlight .
• Simple, compact structure and portable design.
GM220 Film/Coating Thickness Gauge Measurement range
Remark: H=Nominal transformation ratio
GM220 Film/Coating Thickness Gauge Condition of Objective material
• Suitable for measure non-magnetic coating on magnetic conductor base material.
• The minimum curvature radius. Convex: 2mm Convex: 2 Concave=11 Concave: 11mm
• Minimum Sample diameter: 12mm
• Minimum Substrate thickness : 0.5mm
GM220 Film/Coating Thickness Gauge Specification
This portable product adopts magnetic induction technique for measurement. The compact design perform fast, precise and non-destructive digital coating measurement and plating on steel magnetic conductor. It is widely used on manufacturing, workshop, chemistry or quality control fields.
GM220 Film/Coating Thickness Gauge Features
• LCD display measurement value and status.
• Using Hi- sensibility sensor for precise measurement.
• 0 point, 2 point and basic, three different calibration methods to make it easy to process the system quick calibration.
• Measure mode: Single, continually and difference .
• Data record, recall and delete function.
• Data analysis: Average, Maximum, Minimum, standard deviation, and measure times.
• Beep sounds indication.
• Metric / Imperic unit selection.
• Low Battery indication.
• Auto power off .
• LCD backlight .
• Simple, compact structure and portable design.
GM220 Film/Coating Thickness Gauge Measurement range
|
Range |
Resolution |
Accuracy |
|
0~1800μm |
0.1um/1μm |
±(3%H+1µm) |
GM220 Film/Coating Thickness Gauge Condition of Objective material
• Suitable for measure non-magnetic coating on magnetic conductor base material.
• The minimum curvature radius. Convex: 2mm Convex: 2 Concave=11 Concave: 11mm
• Minimum Sample diameter: 12mm
• Minimum Substrate thickness : 0.5mm
GM220 Film/Coating Thickness Gauge Specification
|
Technical parameter |
Technical specification |
|
LCD display |
3 1/2 display |
|
Power supply |
9V Alkaline battery |
|
Operation current |
About 14mA |
|
Battery life |
Continuously 20 hour |
|
Auto power off |
1 minute |
|
LCD backlight function |
7 second. |
|
Operation temperature |
0~40 ℃ |
|
Operation humidity |
10~95% RH |
|
Low battery indication |
7.0V ± 0.2V |
|
Product size |
67x 30x 175mm |
|
Weight |
133G (without battery) |
