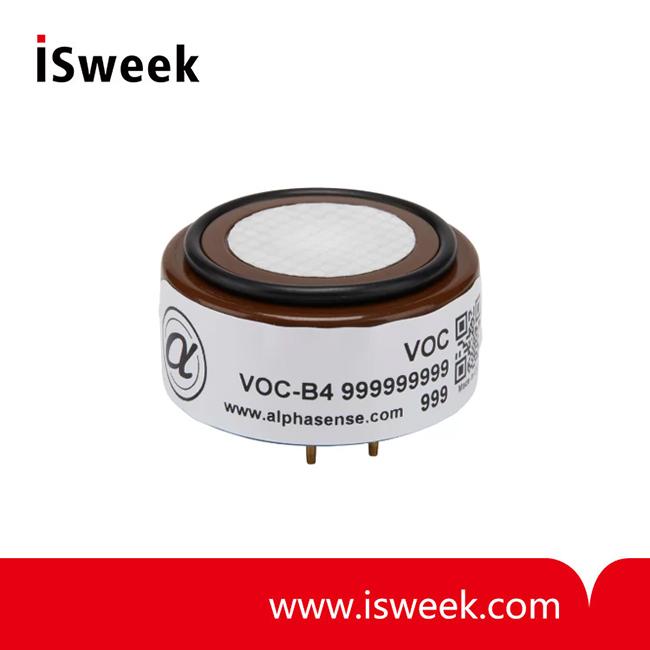

Electrochemical VOC sensor
-
Price
Price on request ≥1piece
-
Model Number
VOC-B4 -
Data Sheet
-
Package
Original packaging -
Specs
VOC-B4 -
Quantity
- +Send Inquiry
Find Similar Products
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
-
High Resolution Infrared Methane (CH4) Sensor
Model Number：Prime1
MOQ：1
-
Infrared Carbon Dioxide (CO2) Sensor Pyroelectric Detector
Model Number：IRC-A1
MOQ：1
-
Individual Sensor Board (ISB) Alphasense B4 4-Electrode Gas Sensors
Model Number：ISB
MOQ：1
-
Hydrogen Chloride Sensor (HCL Sensor)
Model Number：HCL-A1
MOQ：1
-
Intelligent Methane (CH4) Gas Sensor 0~100% VOL
Model Number：MH-741A
MOQ：1
Product Description
VOC-B4 Electrochemical VOC sensor Schematic Diagram
VOC-B4 Electrochemical VOC sensor SPECIFICATION CO SENSING
|
PERFORMANCE |
||
|
Sensitivity |
nA/ppm in 2ppm CO |
400 to 700 |
|
Response time |
t90 (s) from zero to 2ppm CO |
< 30 |
|
Zero current |
nA in zero air at 20℃ |
± 200 |
|
Noise* |
±2 standard deviations (ppb equivalent) |
20 |
|
Range |
ppm limit of performance warranty |
100 |
|
Linearity |
ppm CO error at full scale, linear at zero, 10ppm CO |
± 1 |
|
Overgas limit |
maximum ppm for stable response to gas pulse |
1000 |
|
LIFETIME |
||
|
Zero drift |
ppb equivalent change/year in lab air |
±500 |
|
Sensitivity drift |
% change/year in lab air, monthly test |
< 15 |
|
Operating life |
months until 50% original signal (24 month warranted) |
> 36 |
|
ENVIRONMENTAL |
||
|
Sensitivity @ -20℃(% output @ -20°C/output @ 20℃) @ 2ppm CO |
60 to 80 |
|
|
Sensitivity @ 50℃(% output @ 50°C/output @ 20℃) @ 2ppm CO |
90 to 110 |
|
|
Zero @ -20℃ |
nA change from 20℃ |
± 20 |
|
Zero @ 50℃ |
nA change from 20℃ |
1800 to 2200 |
