Product Description

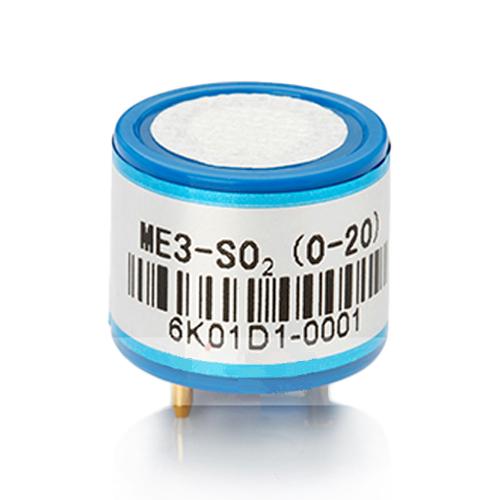

ME3-SO2 SO2 Gas sensor for SO2 detector


ME series SO2 sensors have low consumption, high precision and sensitivity, wide range of linearity, and better anti-jamming capacity, good reproducibility, stability etc advantages.

ME3-SO2 Sulfur Dioxide Sensor SO2 Sensor Application:
Detecting SO2 in industry and environmental protection field


ME3-SO2 Sulfur Dioxide Sensor SO2 Sensor Specifications

Sensor

ME3-SO2

Type

Electrochemical

Stand Cover

Plastic (ME3)

Detected Range

0 - 20ppm

Filter

H2S filter out

Max detecting concentration

150ppm

Life

2 years

Sensitivity (µA/ppm)

0.50±0.10uA/ppm

Resolution

0.1ppm

Temperature Range

-20°C ~ +50°C

Pressure Range

Standard atmosphere ±10%

Response Time(T90)

≤30S

Humidity range

15% -90%RH non-condensing

Zero Drift (-20℃ ~ +40℃)

≤0.2ppm

Signal attenuation (/month)

<2%

RL (recommend)

10Ω

Repeatability

<2%

Output  Linearity

Linearity
