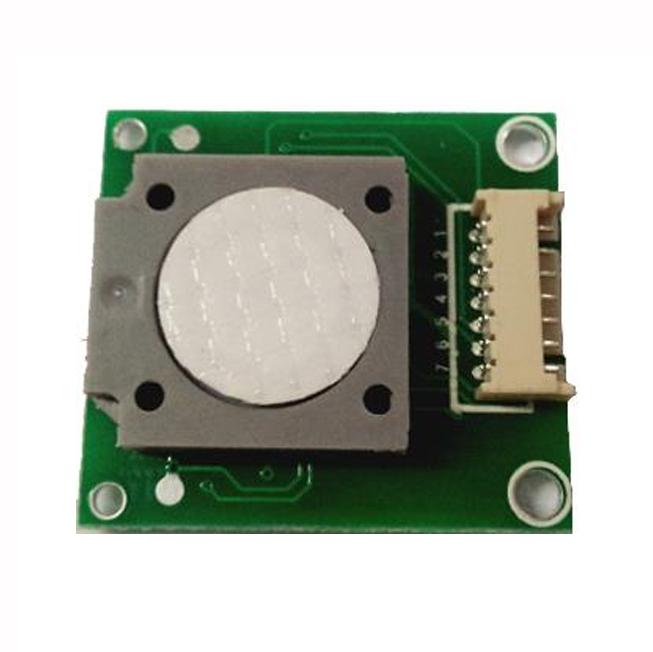

Electrochemical Formaldehyde Detection Module
-
Price
Price on request ≥1piece
-
Model Number
ZE08-CH2O -
Data Sheet
-
Package
Original packaging -
Specs
ZE08-CH2O -
Quantity
- +Send Inquiry
Product Description
ZE08-CH2O Electrochemical CH2O Detection Module Profile
ZE08-CH2O is a general-purpose and miniaturization electrochemical formaldehyde detection module. It utilizes electrochemical principle to detect CH2O in air which makes the module with high selectivity and stability. It is built-in temperature sensor to make temperature compensation. It has the digital output and analog voltage output at the same time. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
ZE08-CH2O Electrochemical CH2O Detection Module Features
* High sensitivity &resolution, Low power consumption, Long life
* UART/Analog Voltage/PWM wave output
* Good stability, excellent ability of Anti-interference
* Temperature compensation , Excellent Linear output
ZE08-CH2O Electrochemical CH2O Detection Module Main Application
Portable detector, air-quality monitor, air cleaner, air renewal system, air conditioner, smart home.
ZE08-CH2O Electrochemical CH2O Detection Module Technical Parameters
ZE08-CH2O is a general-purpose and miniaturization electrochemical formaldehyde detection module. It utilizes electrochemical principle to detect CH2O in air which makes the module with high selectivity and stability. It is built-in temperature sensor to make temperature compensation. It has the digital output and analog voltage output at the same time. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
ZE08-CH2O Electrochemical CH2O Detection Module Features
* High sensitivity &resolution, Low power consumption, Long life
* UART/Analog Voltage/PWM wave output
* Good stability, excellent ability of Anti-interference
* Temperature compensation , Excellent Linear output
ZE08-CH2O Electrochemical CH2O Detection Module Main Application
Portable detector, air-quality monitor, air cleaner, air renewal system, air conditioner, smart home.
ZE08-CH2O Electrochemical CH2O Detection Module Technical Parameters
|
Model No. |
ZE08-CH2O |
|
Target Gas |
CH2O |
|
Interference Gas |
Alcohol, CO &ect. |
|
Output Data |
DAC (0.4~2V standard voltage output) |
|
UART output (3V Electrical Level) |
|
|
Working Voltage |
3.7V~9V ( With voltage reverse connect protection) |
|
Warm up time |
≤3 minute |
|
Response time |
≤60s |
|
Resume time |
≤60s |
|
Detection Range |
0~5ppm |
|
Resolution |
≤0.01ppm |
|
Operating Temp. |
0~50℃ |
|
Operating Hum. |
15%RH-90%RH(No condensation) |
|
Storage temp. |
0~50℃ |
|
Working life |
2 years (in air) |
