Electrochemical Formaldehyde (CH2O) Sensor
-
Price
Price on request ≥1piece
-
Model Number
ME2-CH2O-Ф16 -
Data Sheet
-
Package
Original packaging -
Specs
ME2-CH2O-Ф16 -
Quantity
- +Send Inquiry
Product Description

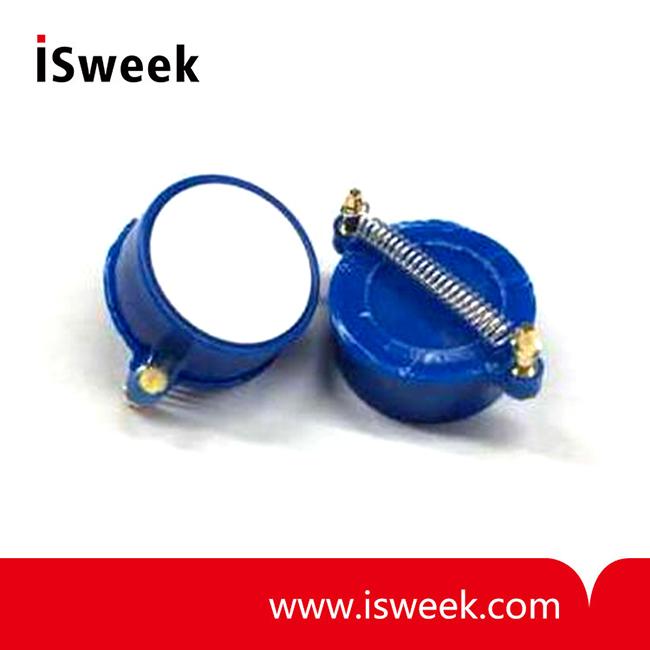

ME2-CH2O-Ф16 Electrochemical Formaldehyde Sensor
ME2-CH2O-Ф16 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
ME2-CH2O-Ф16 Formaldehyde Sensor CH2O Sensor Features
• Low consumption
• High precision
• High sensitivity
• Wide linear range
• Good anti-interference ability
• Excellent stability
ME2-CH2O-Ф16 Formaldehyde Sensor CH2O Sensor Application
Detecting CH2O in civilian, industrial area, and environmental protection
ME2-CH2O-Ф16 Formaldehyde Sensor CH2O Sensor Technical Parameter
|
Item |
Parameter |
|
Detection gas |
HCHO |
|
Measurement Range |
0-10 ppm |
|
Max detecting concentration |
50 ppm |
|
Sensitivity |
(0.55±0.25) µA/ppm |
|
Resolution ratio |
0.02ppm |
|
Response time (T90) |
≤60S |
|
Load resistance (recommend) |
100Ω |
|
Repeatability |
<2% output value |
|
Output Linearity |
linear |
|
Zero drift (-20°C~40°C) |
≤0.2ppm |
|
Humidity Range |
15%~90%RH |
|
Temperature Range |
-20°C~50°C |
|
Pressure range |
normal atmosphere ± 10% |
|
Anticipated using life |
2 years (in air) |
