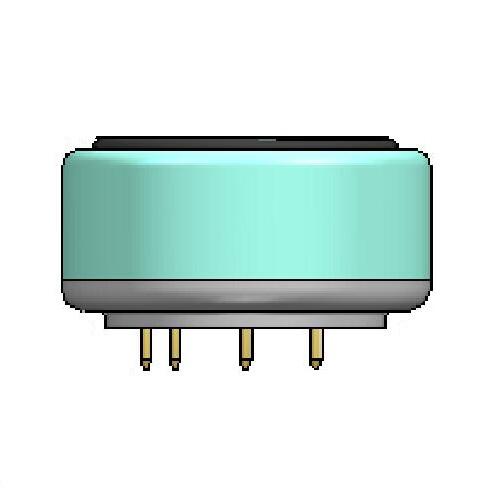

Electrochemical Ethylene Oxide Gas Sensor (C2H4O Sensor)
-
Price
Price on request ≥1piece
-
Model Number
7ETO CiTiceL -
Data Sheet
-
Package
Original packaging -
Specs
7ETO CiTiceL -
Quantity
- +Send Inquiry
Product Description
7ETO CiTiceL Ethylene Oxide Sensor (C2H4O Sensor) Key Features & Benefits:
• Robust, industry standard 7-Series packaging
• Compact Size
7ETO CiTiceL Ethylene Oxide Sensor (C2H4O Sensor) Technical Specifications
* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
PART NUMBERS
7ETO is supplied without bias board. If a bias board is required with the sensor, 7BETO should be ordered.
• Robust, industry standard 7-Series packaging
• Compact Size
7ETO CiTiceL Ethylene Oxide Sensor (C2H4O Sensor) Technical Specifications
| MEASUREMENT | |
| Operating Principle | 3-electrode electrochemical |
| Measurement Range | 0-20 ppm C2H4O |
| Maximum Overload | 100 ppm C2H4O |
| Filter | None |
| Sensitivity | 2.25 ± 0.65 µA/ppm |
| Response Time (T90) | <140 Seconds at 20°C |
| Baseline Offset (clean air) | 0 to +1 ppm C2H4O equivalent |
| Zero Shift (-20°C to +40°C) | < 2 ppm C2H4O equivalent |
| Resolution | 0.1 ppm (when used with recommended electronics) |
| Repeatability | 1% of signal |
| Linearity | Linear |
| ELECTRICAL | |
| Recommended Load Resistor | 10 Ω |
| Bias Voltage | +300 mV |
| MECHANICAL | |
| Weight | 17 g |
| Housing Material: | |
| Cap | Polycarbonate |
| Body | ABS |
| Orientation | Any |
| ENVIRONMENTAL | |
| Operating Temperature Range | -20°C to +50°C |
| Recommended Storage Temp | 0°C to 20°C |
| Operating Pressure Range | Atmospheric ± 10% |
| Operating Humidity Range | 15 - 90% RH non-condensing |
| LIFETIME | |
| Long Term Sensitivity Drift | <5% signal loss/year |
| Expected Operating Life | Two years in air |
| Storage Life | 6 months in CTL container |
| Standard Warranty | 12 months from date of despatch |
* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
PART NUMBERS
7ETO is supplied without bias board. If a bias board is required with the sensor, 7BETO should be ordered.
| Sensor | Order Code |
| 7ETO (without bias board) | AT704-400 |
| 7BETO (with bias board) | AT707-400 |
