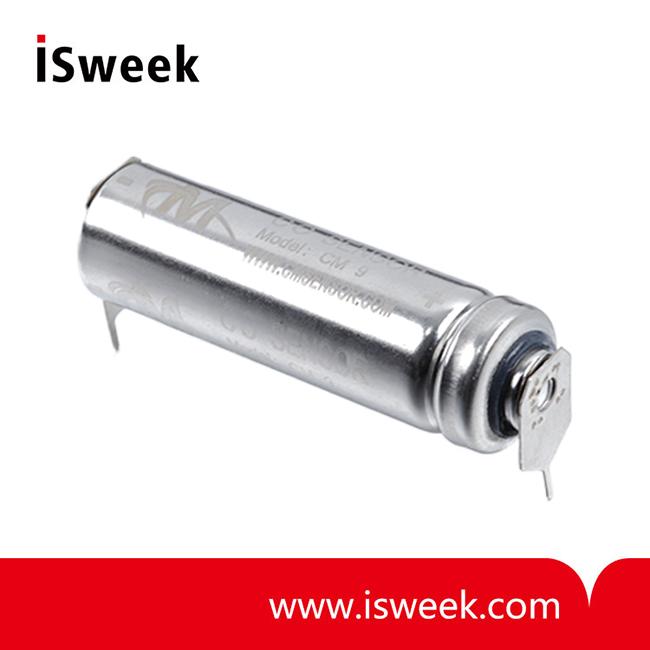

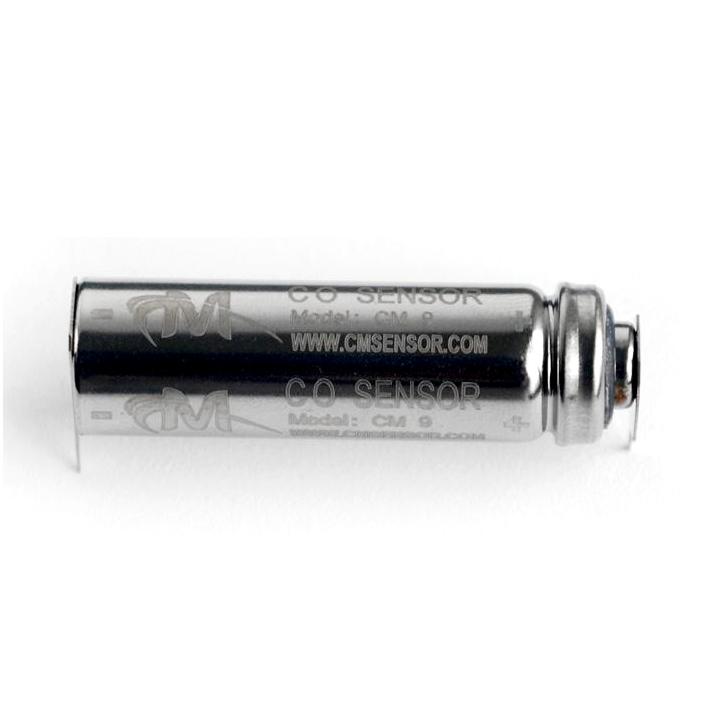

Electrochemical Carbon Monoxide Sensor (CO Sensor)
-
Price
Price on request ≥1piece
-
Model Number
CM9 -
Data Sheet
-
Package
Original packaging -
Specs
CM9 -
Quantity
- +Send Inquiry
Product Description
CM9 Carbon Monoxide Sensor Features:
1. More than ten years long life, electrochemical principle
2. Low sensitivity to ethanol;
3. Can reduce the influence of various interference gases, good linear output characteristics;
4. Consistency is very good;
5. The carbon monoxide gas selectivity and repeatability is very good;
6. The sensor signal output and the concentration of carbon monoxide gas into a linear relationship;
7. The leading production technology and new advanced materials;
8. Electrolyte pollution, materials comply with RoHS requirements;
9. Strong anti-interference;
10. The shell thicker will never rust, the new material used in component feet is conductive.
CM9 Carbon Monoxide Sensor Typical Applications:
1. Carbon monoxide detector alarms,
2. Car alarms, smart furniture
3. Commercial carbon monoxide detector
4. Industrial carbon monoxide detector
5. Indoor parking ventilation control
6. Portable carbon monoxide concentration meter
7. CO detection alarm
CM9 Carbon Monoxide Sensor Main parameters:
|
Length |
49.3±0.1mm |
|
Height |
19.3±0.1mm |
|
Body diameter |
14.3±0.1mm |
|
Pin Length |
3.45±0.1mm |
|
Pin spacing |
49±0.5mm |
|
Detection accuracy |
< 3% |
|
Detection range |
0-10000 |
|
Output current |
0.8 - 2.0 nA/ppm |
|
Response time |
< 30s |
|
High concentration recovery time |
< 30M |
|
Working humidity |
5 - 99%RH |
|
Repeatability |
1% F.S |
|
Hysteresis |
1% F.S |
|
Drift |
1 |
|
Sensitivity |
1 |
|
Material |
Green polymer |
|
Protection class |
IP55 |
|
Operating temperature |
-10 ~ 60 °C |
|
Lifetime of product |
10 years |
