Product Description

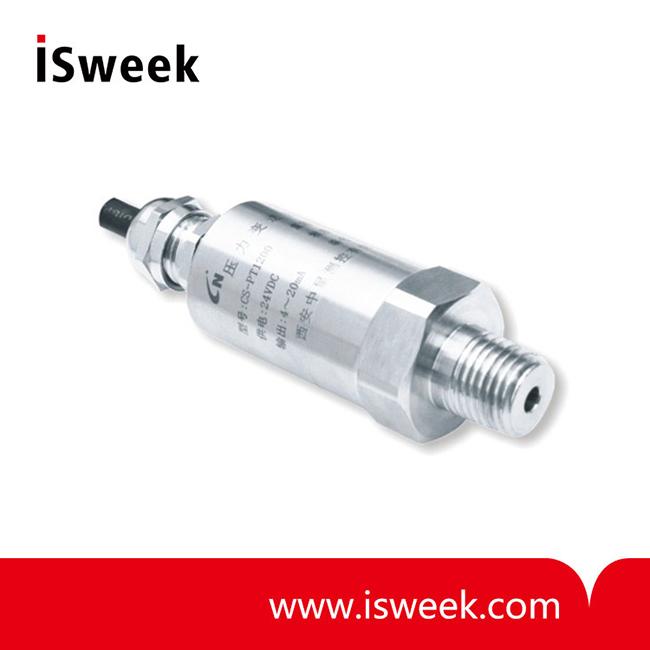

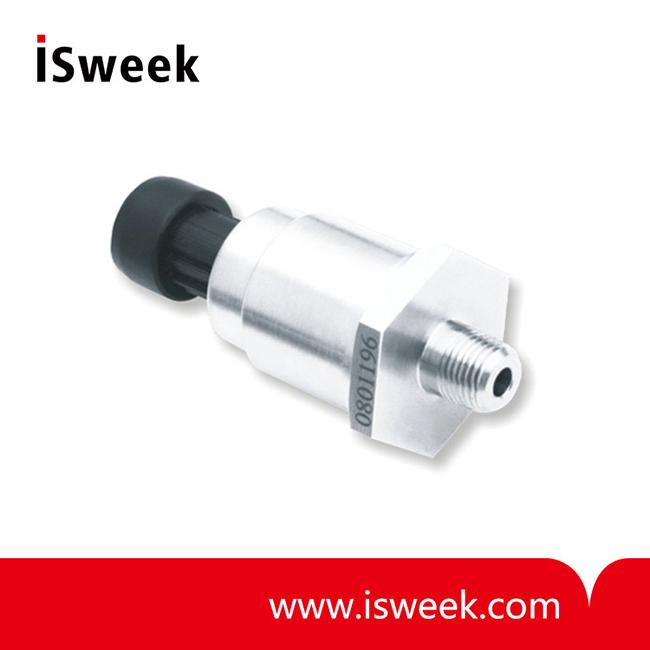

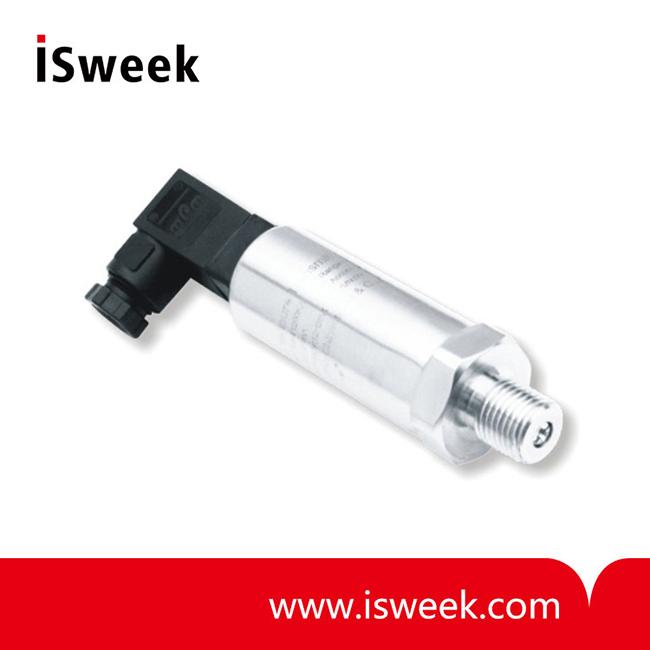

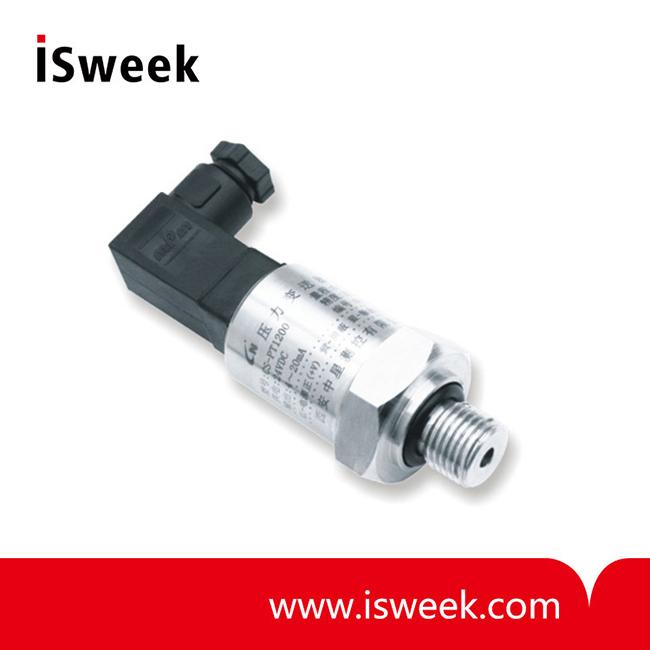

CS-PT1200 Series Economical Ceramic Piezo-resistance Pressure Transmitter
CS-PT1200 Series Pressure Transmitter Feature
• ±0.5, ±1%FS accuracy
• High stability, high reliability
• Ceramic sensor from germany
• Digital calibration
• Multiple connection and ports
• Zero point can be shifted 50~100%
• CE approved
CS-PT1200 Series Pressure Transmitter Application
• Compressor
• Building water supply
• Hydraulic control
• Air conditioner
• Auto engine
• Automatic detecting system
• Hydraulic pressure station
• Refrigerator
CS-PT1200 Series Pressure Transmitter Introduction
CS-PT1200 series of pressure transmitter feature high quality, high stability, small size, low weight, compact structure, low cost and mass production. The product are widely used to measure pressure of air compressor, auto engine, air conditioning equipment, etc.
Stainless steel are ideal for industrial environment, pressure sensor element are selected from well known international brands,The product is made of stainless steel and the pressure sensor is selected from well-known brands. Special circuits are adopted to adjust zero value and full range freely. The products have been approved with CE, intrinsically safe, and explosion-proof certificates.
Non-polar two-wire current output and three-wire voltage output are provided.
Products are produced according to military standards of advanced design, perfect technology, scientific management, strict production and quality control and have been sold to over 50 countries.
CS-PT1200 Series Pressure Transmitter Technical parameters
|
Parameter |
Value |
Note |
|
|
Measure range |
2bar……600bar |
1bar≈100kPa |
|
|
Overload Pressure |
1.5×RP(rated pressure) |
|
|
|
Broken Pressure |
3×RP(rated pressure) |
|
|
|
Accuracy |
±0.5, ±1%F.S |
|
|
|
Stability |
Typical ±0.5%F.S, Max ±1%F.S |
|
|
|
Operate Temperature |
-40°C ~100°C |
|
|
|
Compensation Temperature |
-10°C ~80°C |
|
|
|
Stock Temperature |
-50°C ~125°C |
|
|
|
Media Compatibility |
Corrosive medium compatible with Cr18Ni9Ti, ceramics |
|
|
|
Wire |
Two Wire |
Three Wire |
|
|
Output Signal |
4~20mA |
0.5~4.5V |
|
|
Power Supply |
12~30Vdc |
5Vdc/10~30Vdc/ac |
dc/ac means dc and |
|
Load Resistance |
(U-10)/0.02(Ω) |
>100KΩ |
|
|
Insulation |
>100M Ω@50V |
|
|
|
Elec. Connect |
Packard, DIN 43650C, DIN72585, M12Seial, Cable |
|
|
|
Shell Protection |
IP67 |
|
|
|
Wire Protection |
IP67 |
|
|
|
Elec. Connect |
G1/4, NPT1/4, 7/16-20UNF |
|
|
|
Response Time |
10ms |
|
|
|
Pressure Form |
Gauge G , Absolute A |
|
|
|
Compliant |
CE, Intrinsically safe E, Explosion-proof D |
|
|
|
EMC |
EMI: EN50081-1/-2; EMS: EN50082-2 |
|
|
CS-PT1200 Series Pressure Transmitter Type Selection Guide
