Easy Gas Sensor
-
Price
Price on request ≥1piece
-
Model Number
ES1-HCHO-5 -
Data Sheet
-
Package
Original packaging -
Specs
ES1-HCHO-5 -
Quantity
- +Send Inquiry
Find Similar Products
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
-
High Resolution Infrared Methane (CH4) Sensor
Model Number：Prime1
MOQ：1
-
Infrared Carbon Dioxide (CO2) Sensor Pyroelectric Detector
Model Number：IRC-A1
MOQ：1
-
Individual Sensor Board (ISB) Alphasense B4 4-Electrode Gas Sensors
Model Number：ISB
MOQ：1
-
Hydrogen Chloride Sensor (HCL Sensor)
Model Number：HCL-A1
MOQ：1
-
Intelligent Methane (CH4) Gas Sensor 0~100% VOL
Model Number：MH-741A
MOQ：1
Product Description

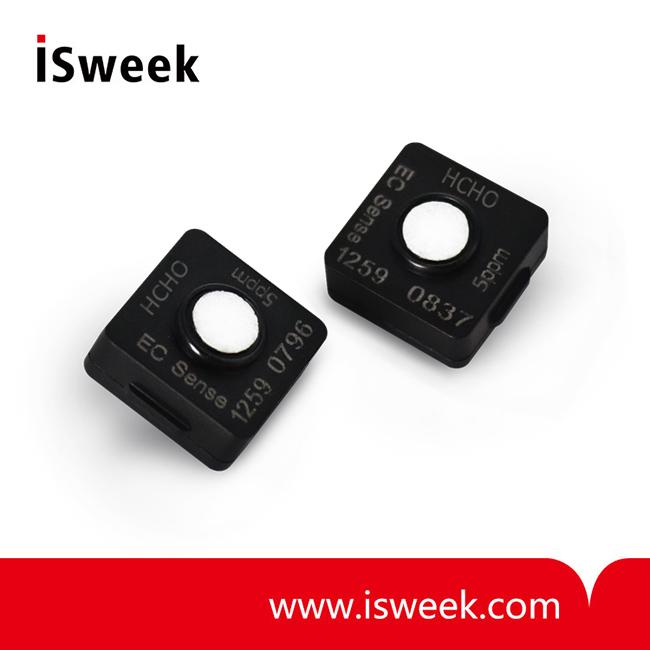

Easy Gas Sensor（ES1-HCHO-5 Formaldehyde）Features：
• Extreme linear response up to high concentration
• Fast response
• Low noise
• No electrolyte leakage
• Low cost at large volumes
• Individually calibrated including test report
Easy Gas Sensor（ES1-HCHO-5 Formaldehyde）Typical applications：
• TLV monitoring
• Indoor Air Aquality
Easy Gas Sensor（ES1-HCHO-5 Formaldehyde）Technical Specification：
|
Performance |
|
|
Sensitivity |
35±20 nA /ppm |
|
Zero current |
± 2 nA |
|
Range |
5ppm |
|
Repeatability |
1% Lower |
|
Environment |
|
|
Temperature Range |
-20 to 50°C |
|
Humidity Range (non condensing) |
10 to 95 % R.H |
|
Pressure Range |
800 to 1200hPa |
|
Operation |
|
|
Operating principle |
amperometric, 3-electrode |
|
Bias voltage |
0mV |
|
Recommended load resistor |
100Ω |
|
Warm up time |
< 20s |
Easy Gas Sensor（ES1-HCHO-5 Formaldehyde）Dimensions：
