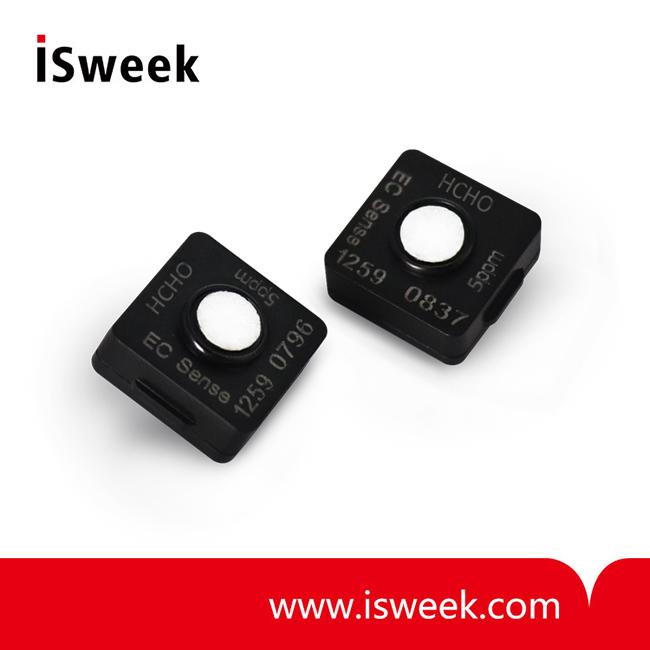

Easy Gas Sensor
-
Price
Price on request ≥1piece
-
Model Number
ES1-HCHO-100 -
Data Sheet
-
Package
Original packaging -
Specs
ES1-HCHO-100 -
Quantity
- +Send Inquiry
Find Similar Products
-
Ultra Low Power Digital Output NDIR CO2 Gas Sensor
Model Number：CozIR-A
MOQ：1
-
Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：COZIR-W/ExplorIR-W
MOQ：1
-
Low Cost HVAC Carbon Dioxide Sensor NDIR CO2 Sensor
Model Number：MisIR
MOQ：1
-
Probe Type NDIR CO2 Sensor
Model Number：COZIR-Probe
MOQ：1
-
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor 20Hz 0-100%
Model Number：SprintIR-WF
MOQ：1
-
Infrared Gas Sensor for Oil Industry Methane Sensor
Model Number：PrimePell
MOQ：1
Product Description
Easy Gas Sensor（ES1-HCHO-100 Formaldehyde）Features：
•Extreme linear response up to high concentration
• Fast response
• Low noise
• No electrolyte leakage
• Low cost at large volumes
•Individually calibrated including test report
Easy Gas Sensor（ES1-HCHO-100 Formaldehyde）Typical applications：
• TLVmonitoring
• Indoor Air Aquality
Easy Gas Sensor（ES1-HCHO-100 Formaldehyde）Technical Specification：
|
Performance |
|
|
Sensitivity |
35±20 nA /ppm |
|
Zero current |
± 2 nA |
|
Range |
100ppm |
|
Repeatability |
1% Lower |
|
Environment |
|
|
Temperature Range |
-20 to 50°C |
|
Humidity Range (non condensing) |
10 to 95 % R.H |
|
Pressure Range |
800 to 1200hPa |
|
Operation |
|
|
Operating principle |
Amperometric，3-electrode |
|
Bias voltage |
0mV |
|
Recommended load resistor |
100Ω |
|
Warm up time |
< 20s |
Easy Gas Sensor（ES1-HCHO-100 Formaldehyde）Dimensions：
